Interface Panel

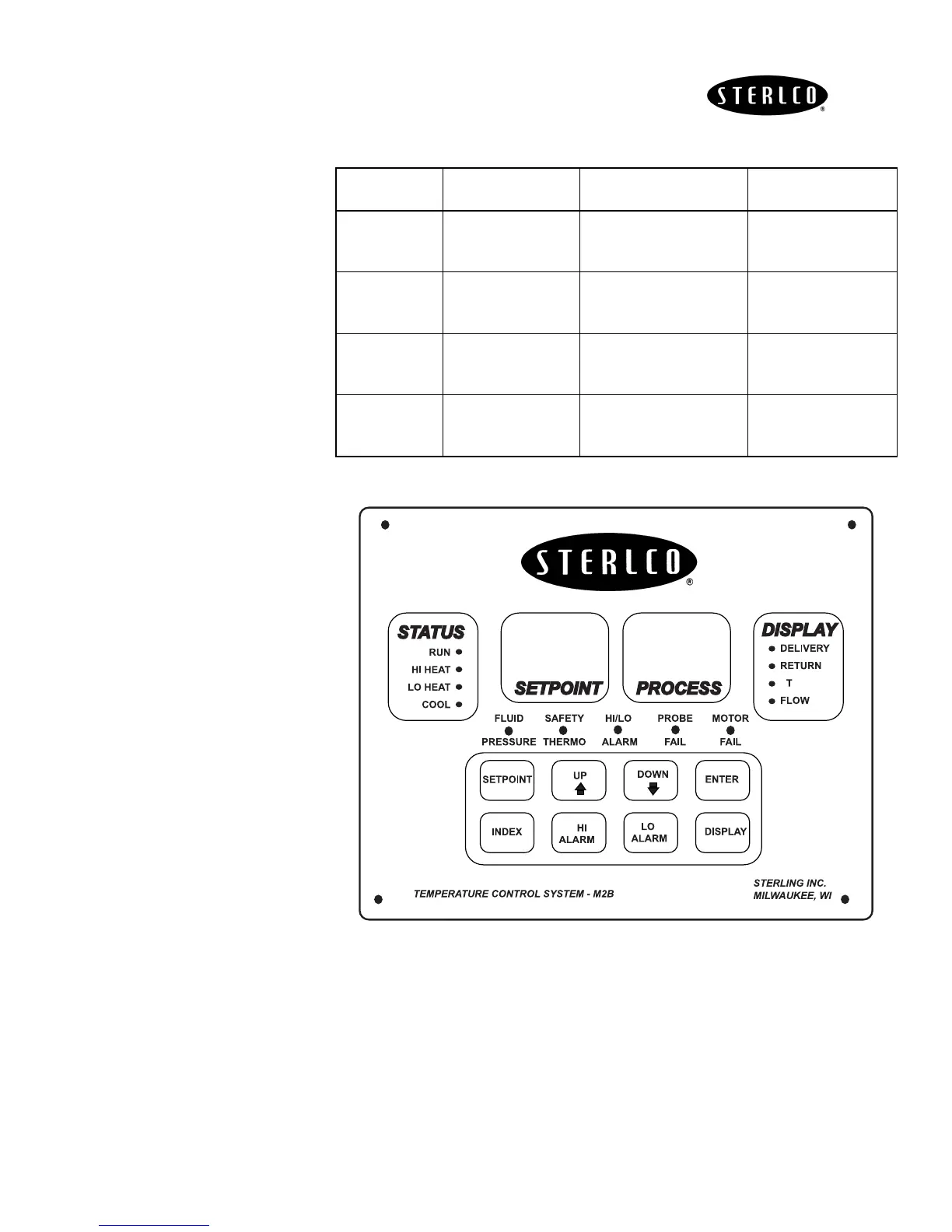

Figure-2
Note:
Depressing the
DISPLAY
keypad, the function LED will stay on for
thirty (30) seconds, then revert to the default delivery display.
Indicator Lights Status Lights
• RUN - Flashes while controller is auto-tuning. Glows steady during
normal operation.
• HI HEAT - Fluid heaters are on Hi to rapidly raise the fluid temperature.
• LO HEAT - Fluid heaters are at 50%.
• COOL - Fluid temperature is above setpoint and is being cooled.
Menu
Security Level
Status
Displayed Value
When Viewed
Password Value To
Enter
Home
Secondary
Secure
Locked
Locked
Locked
1110
Home
Secondary
Secure
Unlocked
Locked
Locked
2101
Home
Secondary
Secure
Unlocked
Unlocked
Locked
3011
Home
Secondary
Secure
Unlocked
Unlocked
Unlocked
4111
To Next Page
