Appendix B
Mounting
The M2B requires a hole in the panel measuring 8 1/2 inches (21.59 cm) by
4 1/2 in. (11.43 cm) high (see Figure-5). Four mounting holes are spaced
7 in. (17.78 cm) horizontally, and 5 in. (12.7 cm) vertically in a rectangular
layout. The mounting holes are 1/4 in. (6.35 mm) diameter and the bolts are
size 10 or equivalent.

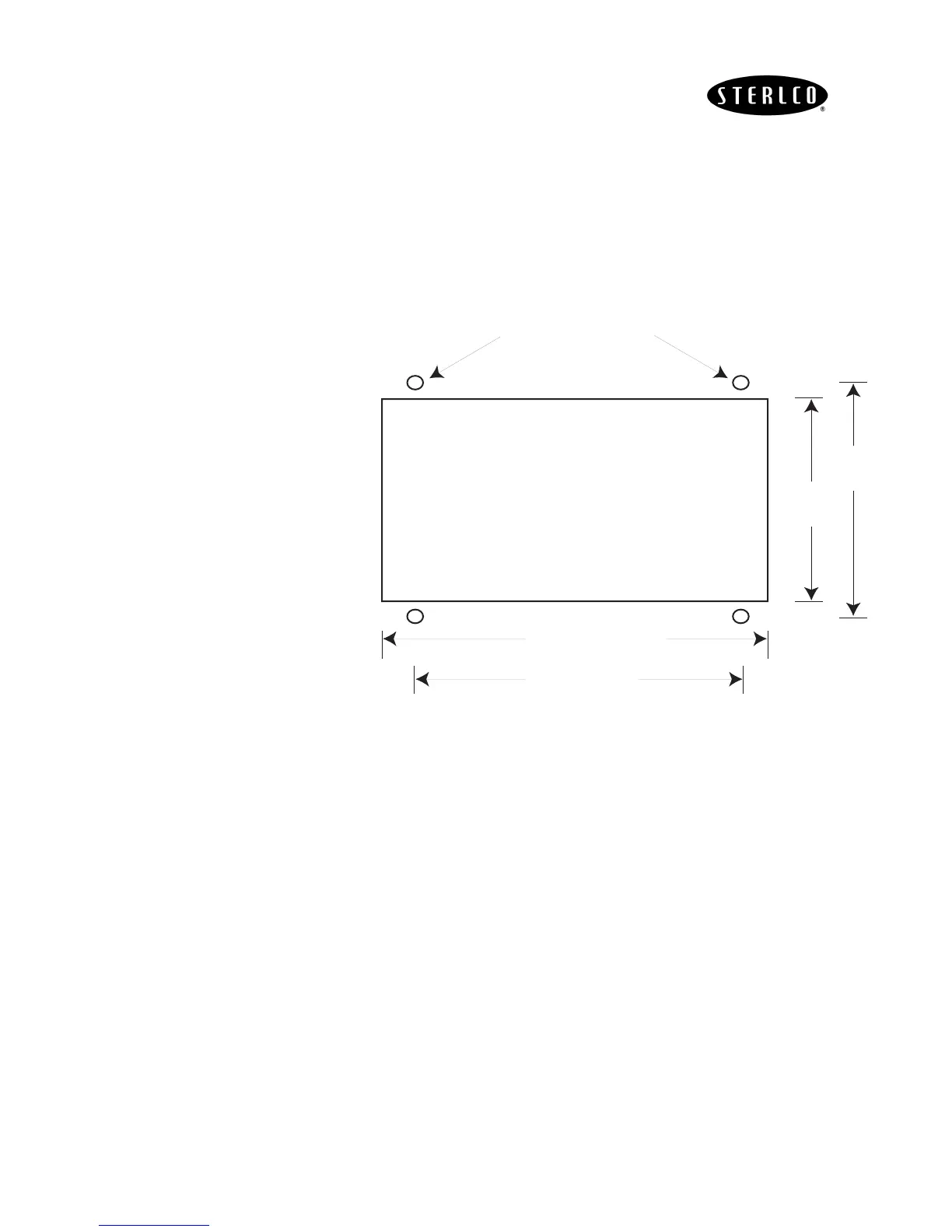

Figure-5 Mounting Dimensions.
8 1/2" (21.59 cm)
7" (17.78 cm)
4 1/2"
(11.43 cm)
5"
(12.7 cm)
1/4" (6.35 mm) dia.
