STG-BEIKIRCH 4A - Connection Facilities

52
08/13424999756
Connection facilities
• 24 V DC drives with separate cutoff (load interruption, limit switch)
• total power consumption of all connected drives max. 4 A or 8 A depending on type of control panel
• 10 SHEV control points RBH/3A... (line terminal via attached terminal resistor)
• 10 automatic detectors in 2-conductor technology, optical smoke detectors and/or heat differential detectors and/or
maximumheatdetectors(lineterminalwithactiveendmoduleorterminalresistor)factory-ttedviaattachedtermi-
nal resistor
• 10 external ventilation switches OPEN/STOP/CLOSE (e.g.: type LTA 25) per ventilation group, max. two ventilation
groups
• Power supply 24 V DC - 100 mA for one wind/rain detector WRS 24V or one rain detector RS
• one connection each for potential-free signal of SHEV triggered and malfunction plus transmission of wind/rain sig-
nal; contact load 30 V / max. 2 A
• Maximal 8 control pane Slave are cascadable
*ThefunctionsaredependentonthermwareusedbythecontrolpanelandthescopeofthePCcongurationsoftware.

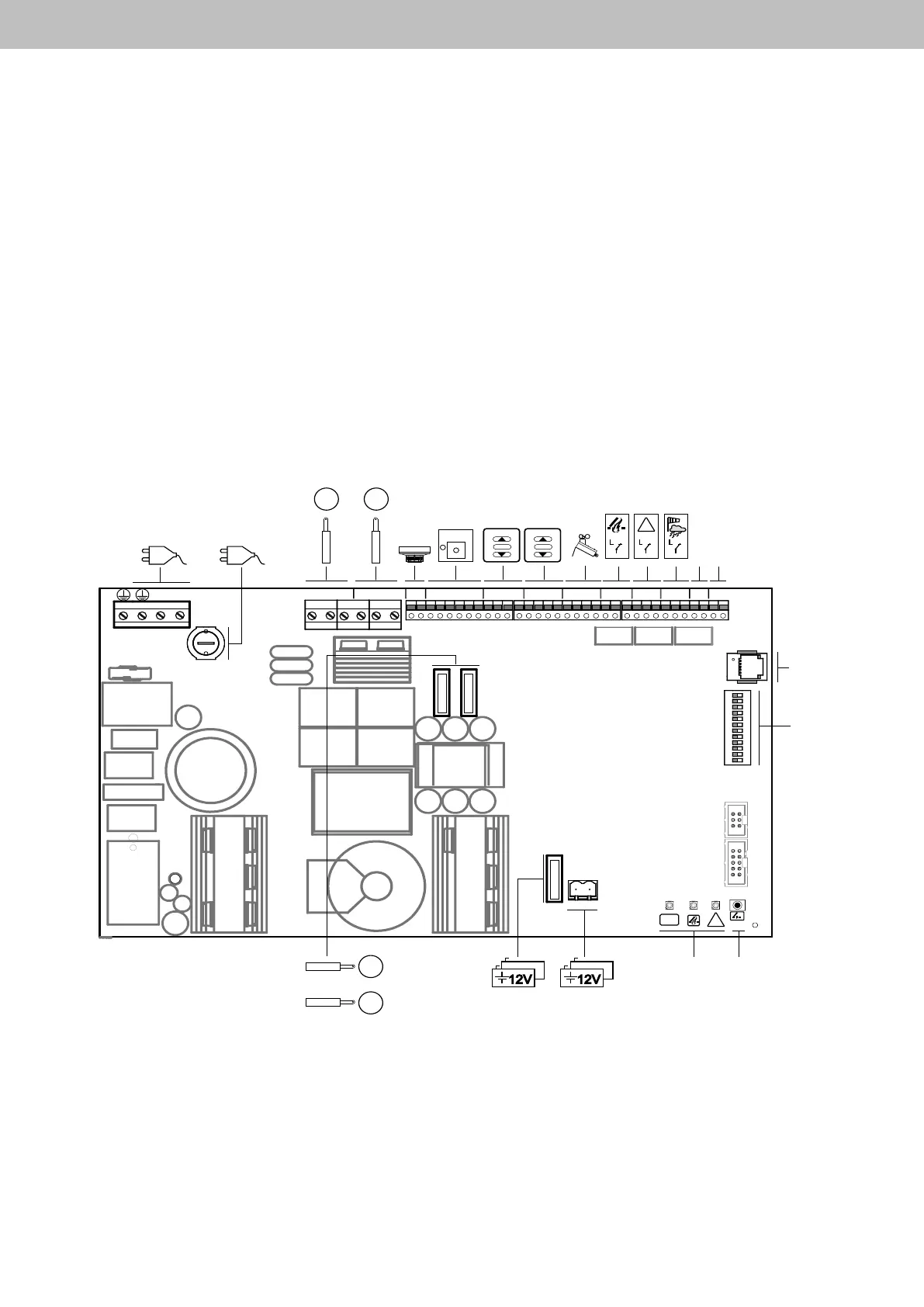

Compact control panel 4A, 4A/M und 8A, 8A/M
230 V AC
M1
=
STOP
Lüftung/VENT
Rauchabzug
Smoke heat extraction
STOP
Lüftung/VENT
!
10
1
1
1 2 3 4
5
6
7
8
9
12
ON
OK
:
Reset
12V
=
M2
+ -
N
L
1 2 3 4 5 6
7
8
9
10
11
12
13
14
15
16 17
18
19
20
21
22
23 24
25
26
27
28
29
30
31
32
33
34
35
36
37 38
39
M1
=
=
M2
12V
!
2 1
6
2 1
10
fuse
rechargeable battery
fuse
rechargeable battery
connection
" SHEV-close"
switch,reset
LED indicators
DIP-switch
PC interface
Motor 2 Motor 1
fuse
interface 4 - 20 mA potential-free input
