STG-BEIKIRCH 4A - Connecting Diagram SHE Manual Call Point

58
08/13424999756
Connecting diagram SHE manuel call point
All work to be carried out without mains supply (230 V AC) or any batteries connected. Route the connecting cables into
the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure that
theyarecorrectlyconnected.Incorrectconnectionsorgureorcolourmix-upscanleadtoincorrectfunctionofthecon-
trol panel or of the external components. The notes and installation directives in the technical documentation are always
to be observed.

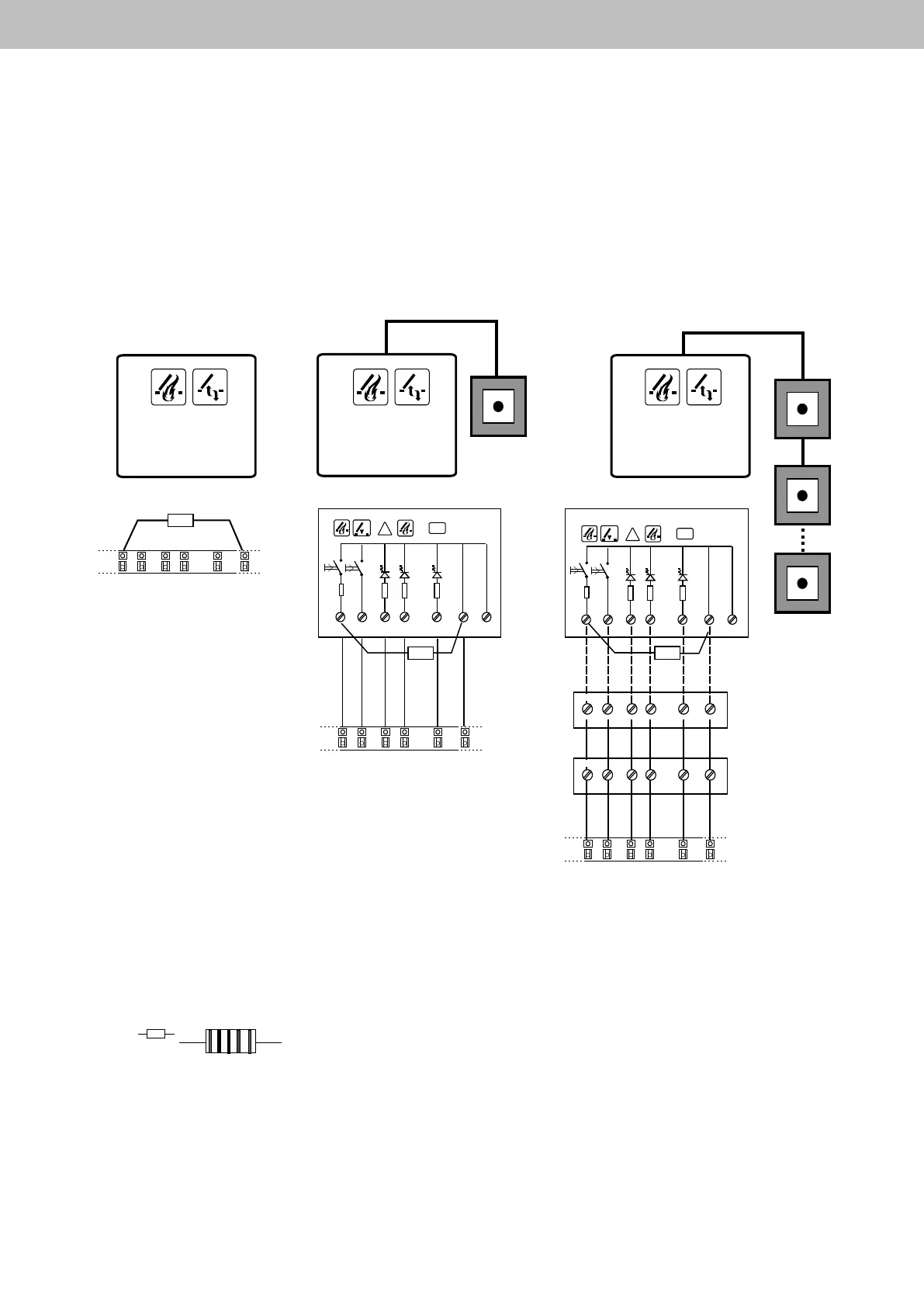

without SHE manual call
point
one SHE manual call point
several SHE manual call points
Compact control panel 4A, 4A/M und 8A, 8A/M
RBH/3A
10kΩ
9 10 11 12 13 14
5
6
8
4
1
3
5
6
8
4
1
3
10kΩ
9 10 11 12 13 14
OK
!
1
6
4
8
25
3
RBH/3A
RBH/3A
RBH/3A
1
6
4
8
25
3
OK
!
10kΩ
9 10 11 12 13 14
Monitoring resistor
10kΩ
1 2
3 4
5
Color marking:
1. Ring: brown
2. Ring: Black
3. Ring: Black
4. Ring: red
5. Ring: brown
