STG-BEIKIRCH 4A - Wind;Rain Message Forwarding

63
08/13424999756
wind-rain detector
WRM/2 or RM/2
Connecting control panel Slave (Cascade function)
(Rev019 hardware version, software version V020001, see marking on the board)
All work to be carried out without mains supply (230 V AC) or any batteries connected. Route the connecting cables
into the control panel housing at the top. Connect all connecting cables according to the wiring diagram and make sure
thattheyarecorrectlyconnected.Incorrectedconnectionsorgureorcolourmix-upscanleadtoincorrectfunctionof
the control panel or of the external components. The notes and installation directives in the technical documentation are
always to be observed.

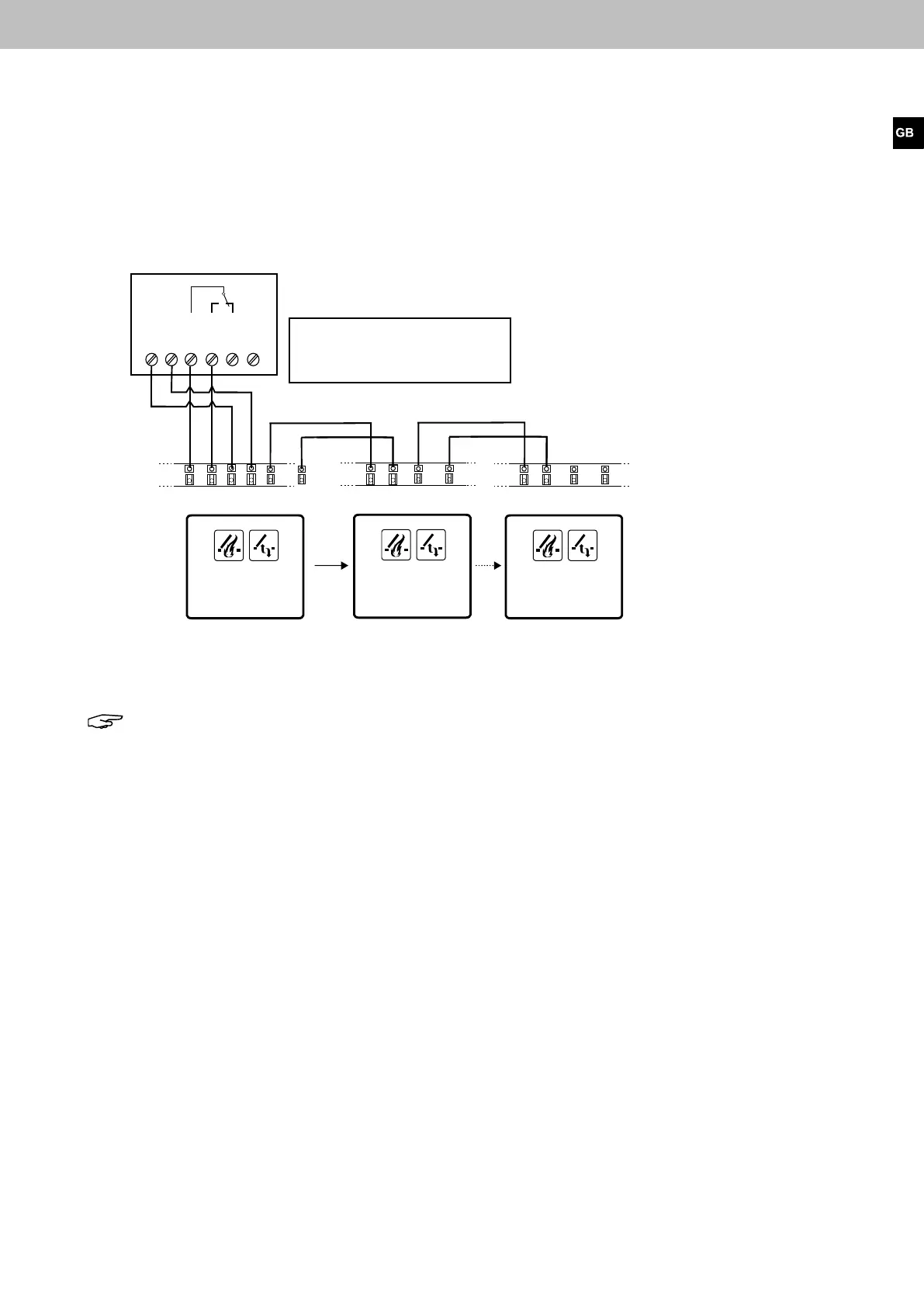

3. Connecting forwarding "wind/rain message" to Slave-Control panel
Note: For the forwarding of wind-rain message to other centers
requires no special settings via DIP switch
23
24
25
26
S
1
Ö
2
A
3 4 5 6
+
-
WS
WS
23
24
+
-
23
24
33 34 35
A
Ö
S
33 35
33 35 33 35
Compact control panel 4A, 4A/M und 8A, 8A/M
Master-Control
panel
last Slave-Control
panel
Slave-Control
panel
Setting the DIP switches for the
Rain detectors RM/2 and wind-rain detector
WRM/2, see page 67
