STG-BEIKIRCH 4A - Page 68

68
08/13424999756

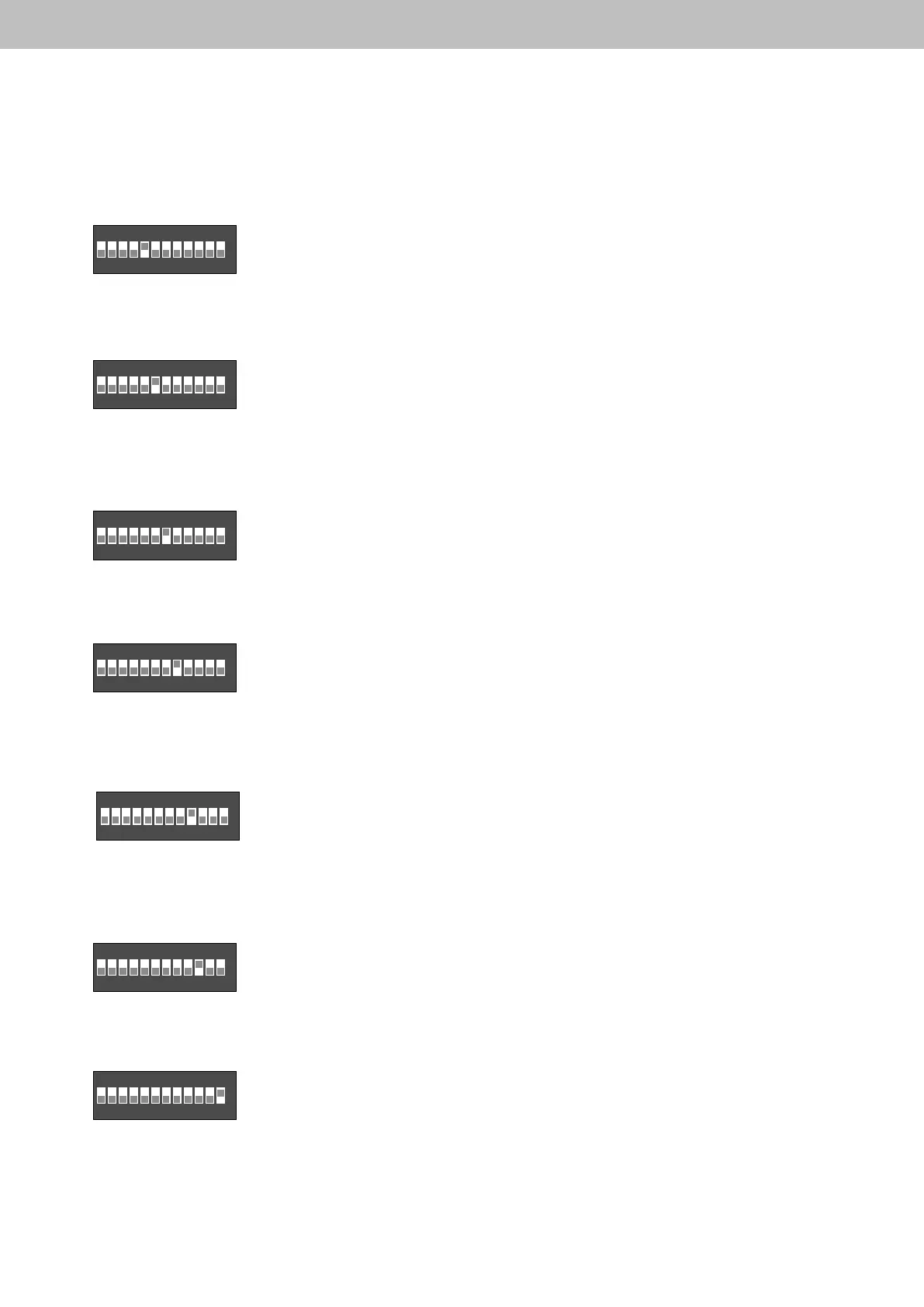

Function of DIP-Switches
DIP-Switch 5: “Fire alarm system (FAS) OPEN” via an opener contact (only for 8A compact control panel)
Connection via the terminals of the automatic detectors with additional UEB3-1K module. FAS contact CLOSED = stand-
by operation, FAS contact OPEN = SHE. After the system has been activated a reset is to be executed using the reset
button on the base circuit board of the central control system.
DIP-Switch 6: Actuation limit
Time-dependent ventilation actuation limit. For adjustment see section on "Functional description/actuation limit".
DIP-Switch 7: Malfunction = SHE activation
In the event of a malfunction an SHE activation automatically takes place. A Reset is only possible after the malfunction
has been cleared.
DIP-Switch 8: SHE Close (on the SHE operating station) = SHE-Reset
Enables a Reset at any Type RBH/3A SHE operating station.
DIP-Switch 9: Ventilation in inching mode of operation (deadman button)
The drives only traverse to Open or Close while the button is pressed. This function can serve as a protective function for
“power-operated windows”, insofar as there is visual contact with the relevant windows from the button.
DIP-Switch 10: STOP function with key-operated ventilation button
STOP function initiated by means of a counter-command (Open or Close). Operation with key-operated buttons can
serve as a protective function for “power-operated windows”.
DIP-Switch 12: Automatic closure system, automatic closure after xx min (set in the factory to 10 min). After each venti-
lation Open command automatic closure takes place after the prescribed time.
Compact control panel 4A, 4A/M und 8A, 8A/M
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
1 2 3 4 5 6 7 8 9
ON
10 11 12
