INSTALLATION
Electrical connection
!
Damage to the appliance and environment
In any case, cover the external apertures with a wire
mesh. Secure the hoses against slippage.
11.3 Fitting air hoses

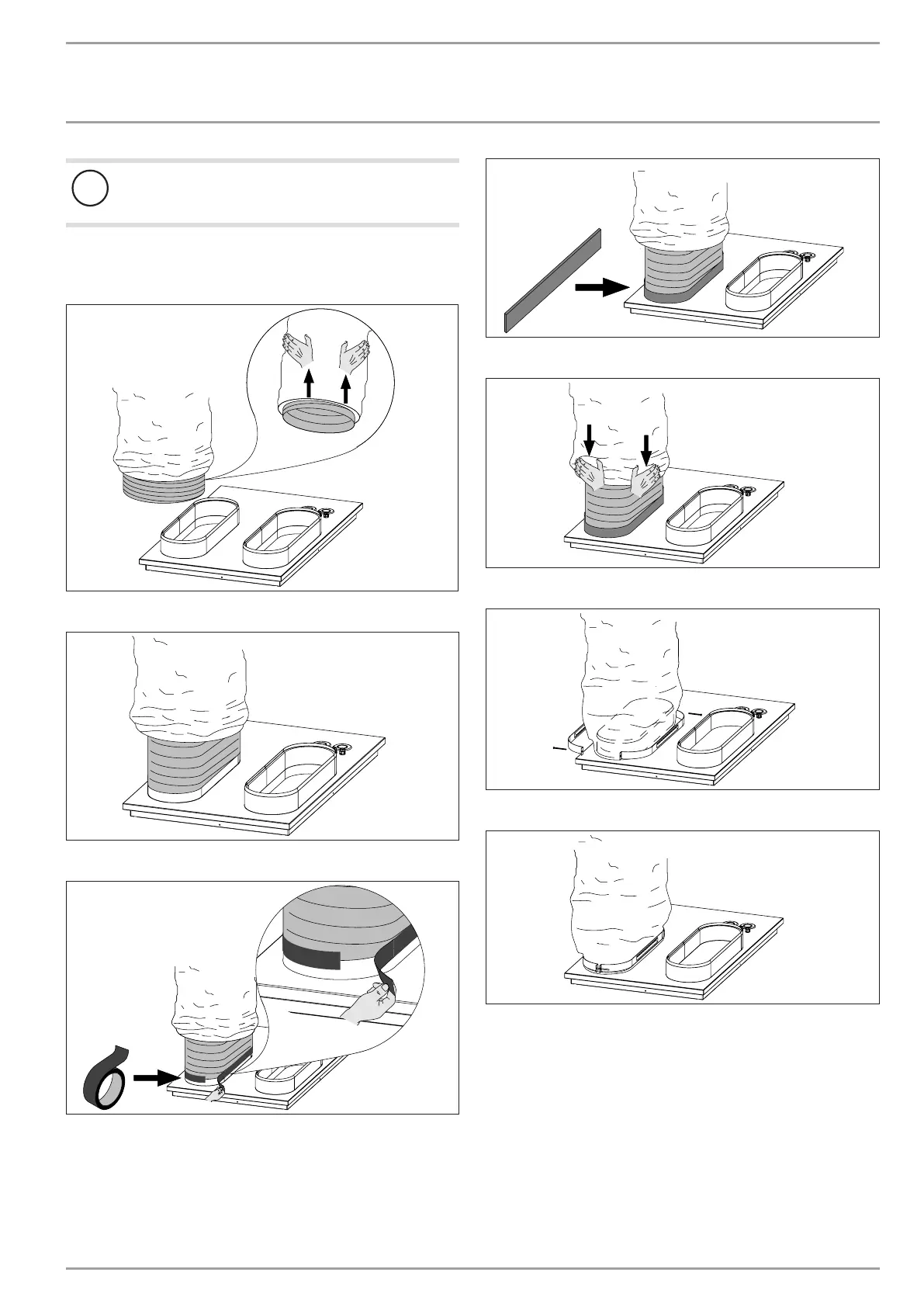

The example below shows the air hose connection being fitted.
26�03�01�1446
Firstly, push the outer hose slightly upwards.
26�03�01�1447
Push the inner hose halfway over the connector.
26�03�01�1448
Seal the inner hose by affixing it to the connector using the
fabric tape provided.
26�03�01�1449
Place the sealing strip provided around the connector.
26�03�01�1450
Pull the outer hose over the connector.
26�03�01�1452
Secure the hose using the oval hose clip provided.
26�03�01�1453
11.4 Thermally insulating the wall outlets
Cold bridges must not be able to form between the wall outlets to
be created on site and the brickwork. Provide suitable insulation
between the wall outlets and the brickwork to prevent condensate
from forming in the brickwork.
As an alternative you could also use the thermally insulated AWG
560 wall outlet. The AWG 560 wall outlet is available as an ac-
cessory.
