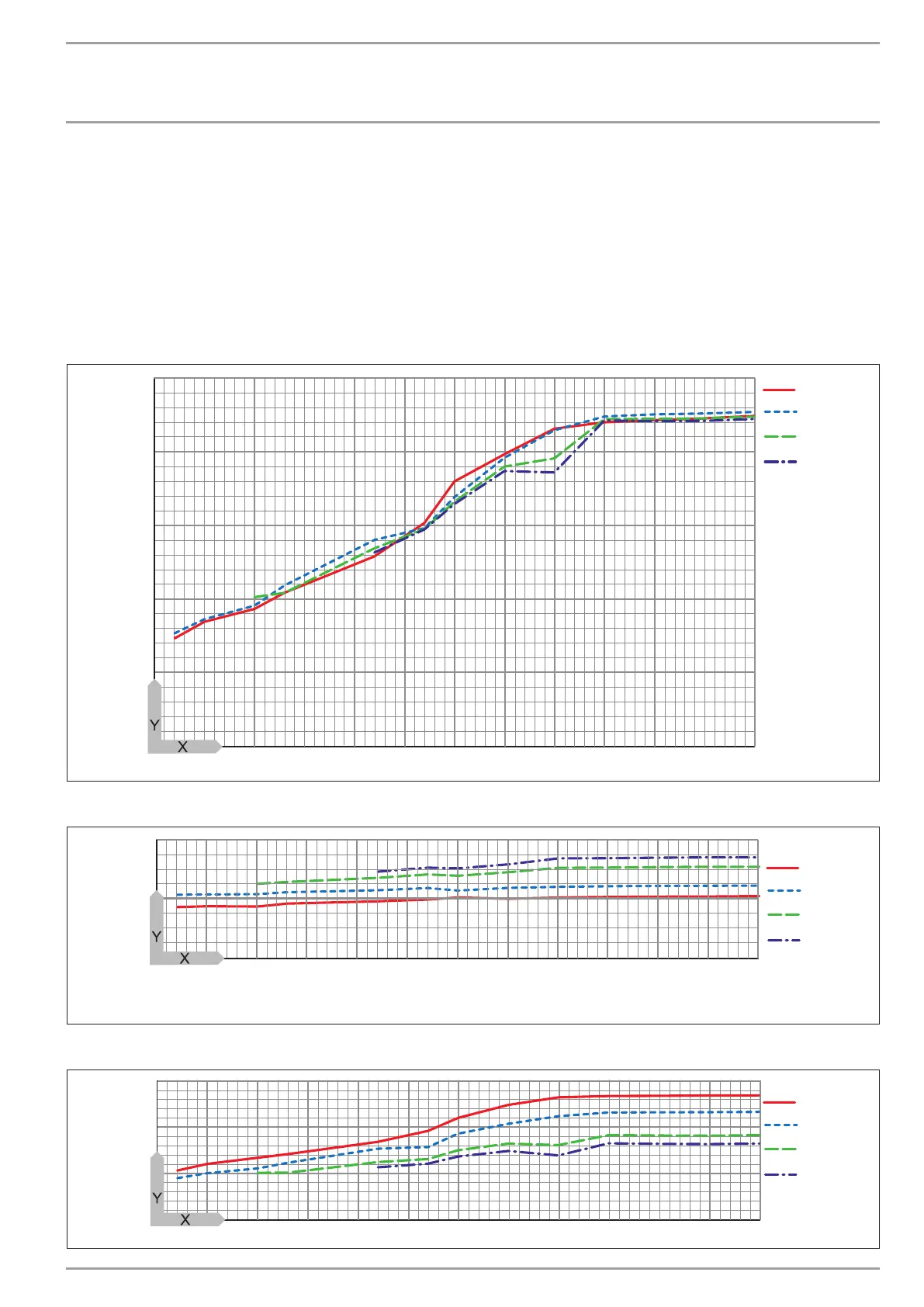

17.7 Output diagrams WPL 20 basic
Key to output diagrams
Y Heating output [kW] | Power consumption [kW] | Coefficient of performance ε [-]
X Inlet temperature of the heat source medium [°C]
1 Flow temperature 35 °C
2 Flow temperature 45 °C
3 Flow temperature 55 °C
4 Flow temperature 60 °C
Heating output
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40
5
0
10
15
20
25
1
2
3
4
84�03�01�0143
Power consumption
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40
4
0
8
1
2
3
4
84�03�01�0144
Coefficient of performance (COP)
-20 -15 -10 -5 0 5 10 15 20 25 30 35 40
2
0
4
6
1
2
3
4
84�03�01�01345
