INSTALLATION
Preparations

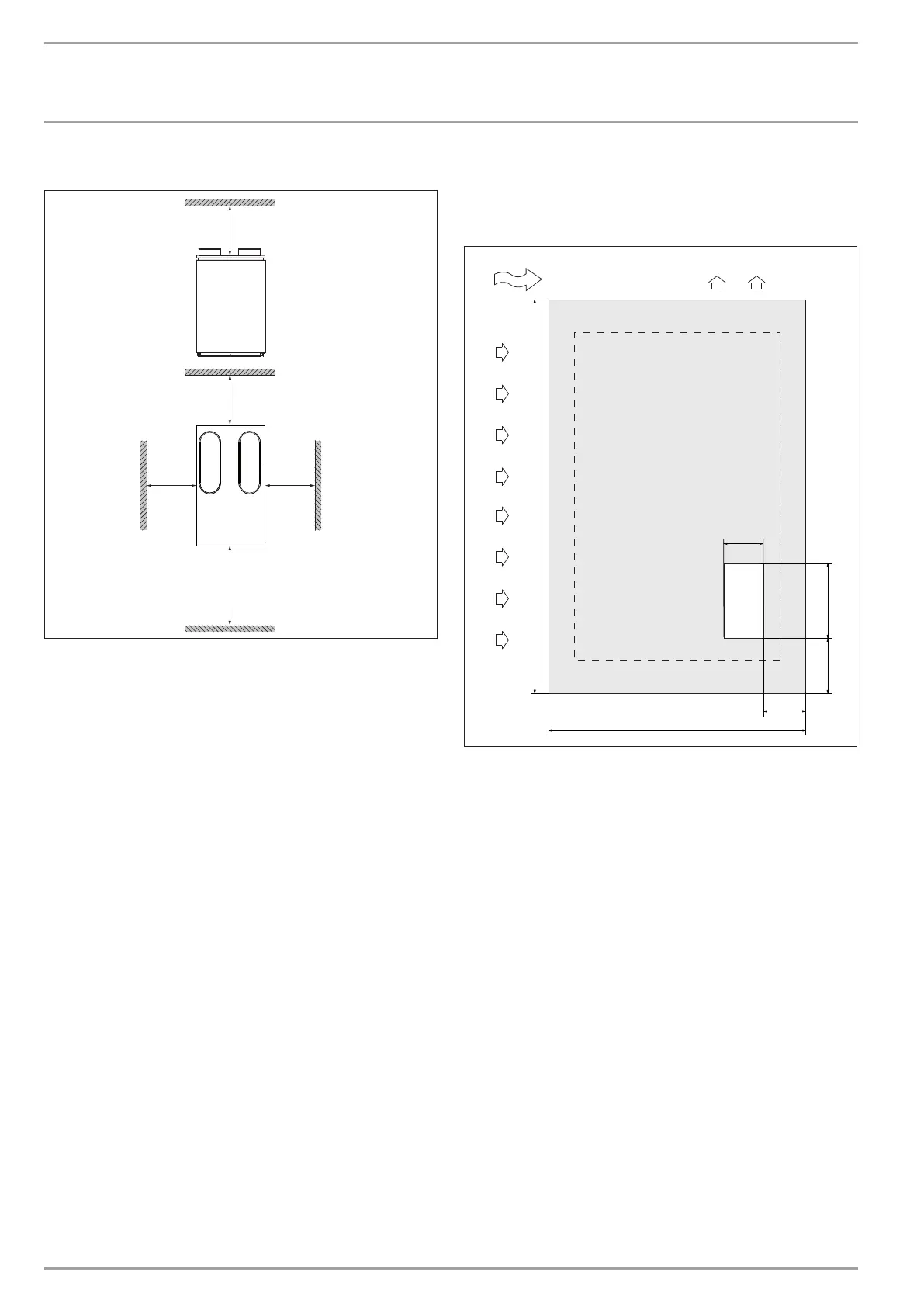

9.2.2 Internal installation
≥500
≥500
≥500
≥500
≥1000
D0000019242
 Maintain the minimum clearances to ensure trouble-free op-
eration of the appliance and facilitate maintenance work.
9.3 Preparing the installation site
9.3.1 General information
 Ensure that the appliance is accessible from all sides.
- The substrate must be horizontal, level, solid and permanent.
 Observe the minimum clearances in chapter “Preparations/
Minimum clearances”.
 Ensure the entire heat pump frame is in contact with the sub-
strate. Uneven substrates can increase sound emissions.
9.3.2 Preparing the installation site for external installation
 Observe chapter “Sound emissions for external installation”.
Example: Foundations with recess
3
1
2
4
1000
1440
190
170
300
150
D0000019240
1 Air intake
2 Air discharge
3 Main wind direction
4 Recess
