STIHL 019 T 20

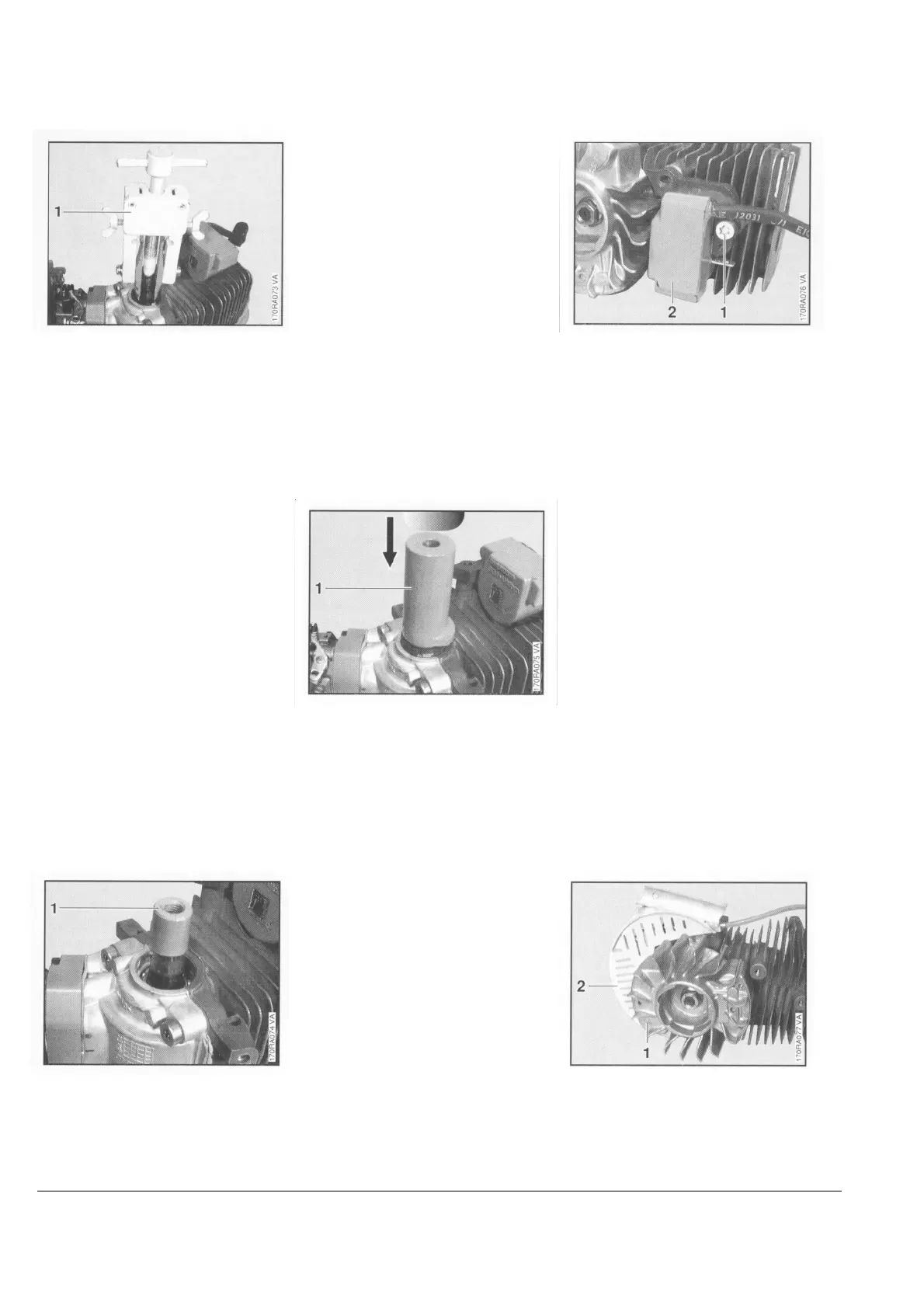

- Lubricate sealing lips of oil seal with
grease - see 11.2.
- Thinly coat the outside diameter of
the oil seal with sealant - see 11.2.
- Position the oil seal so that the
clamping ring faces upwards.
• Screw guide (1) 1123 894 7700
onto crankshaft stub.
• Remove the flywheel (1)
- see 5.3.
• Remove the air baffle (2).
• Use the press sleeve (1)
1123 893 2400 to install the oil
seal.
- Unscrew the guide.
- Place air baffle in position and fit
throttle cable in throttle trigger at
the same time. Check that it has
engaged properly.
- Install the flywheel - see 5.3.
- Install the engine - see 4.2.
- Remove the muffler - see 4.3.
- Remove the carburetor - see 10.5.2.
• Take out the screw (1).
• Remove the ignition module (2).
• Apply puller (1) 5910 890 4400
(jaws 0000 893 3706 with No. 3.1
profile).
- Clamp the puller arms.
- Pull out the oil seal.
Important: Take special care not to
damage crankshaft stub.
Note: Remove the oil seal with
clamping ring as described for clutch
side.
- Clean sealing face on crankshaft
stub with standard commercial,
solvent-based degreasant containing
no chlorinated or halogenated
hydrocarbons - see 11.2.
Note: Only install oil seal
9638 003 1581 (with clamping ring).
4.6 Cylinder
