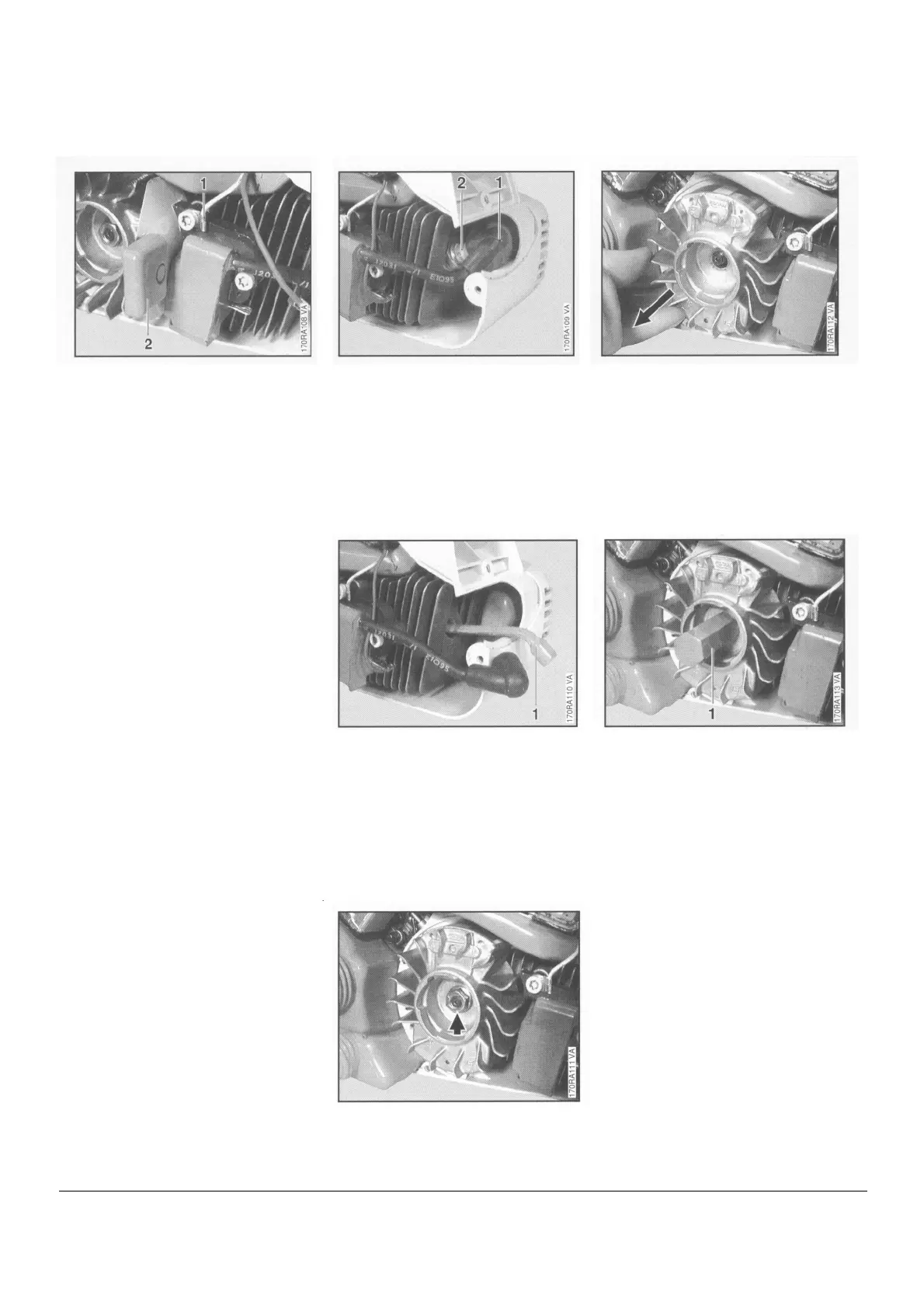

- Place the module in position,
insert the screws but do not
tighten them down yet.
• Secure the ground wire (1) with
the upper mounting screw.
• Slide the setting gauge (2)
1111 890 6400 between the arms
of the ignition module and the
flywheel magnets.
- Press the ignition module against
the flywheel and tighten down the
mounting screws to a torque of
4.5 Nm (3.3 Ibf.ft).
- Push the short circuit wire on to
the connector tag.
- Fit boot on spark plug.
- Fit the fan housing - see 6.2.
• Fit locking strip (1)
0000 893 5903 in cylinder.
Note: If the flywheel cannot be pulled
off by hand, screw the puller (1) 4133
893 0800 on to the crankshaft stub.
Free off the flywheel by lightly tapping
the end of the puller. Unscrew the
puller and remove the flywheel.
Removing the flywheel:
- Remove the fan housing
- see 6.2.
• Pull off the spark plug boot (1)
and unscrew the spark plug (2).
• Pull the flywheel off the crank-
shaft.
• Unscrew the flywheel nut.
