10 034, 036, 036 QS

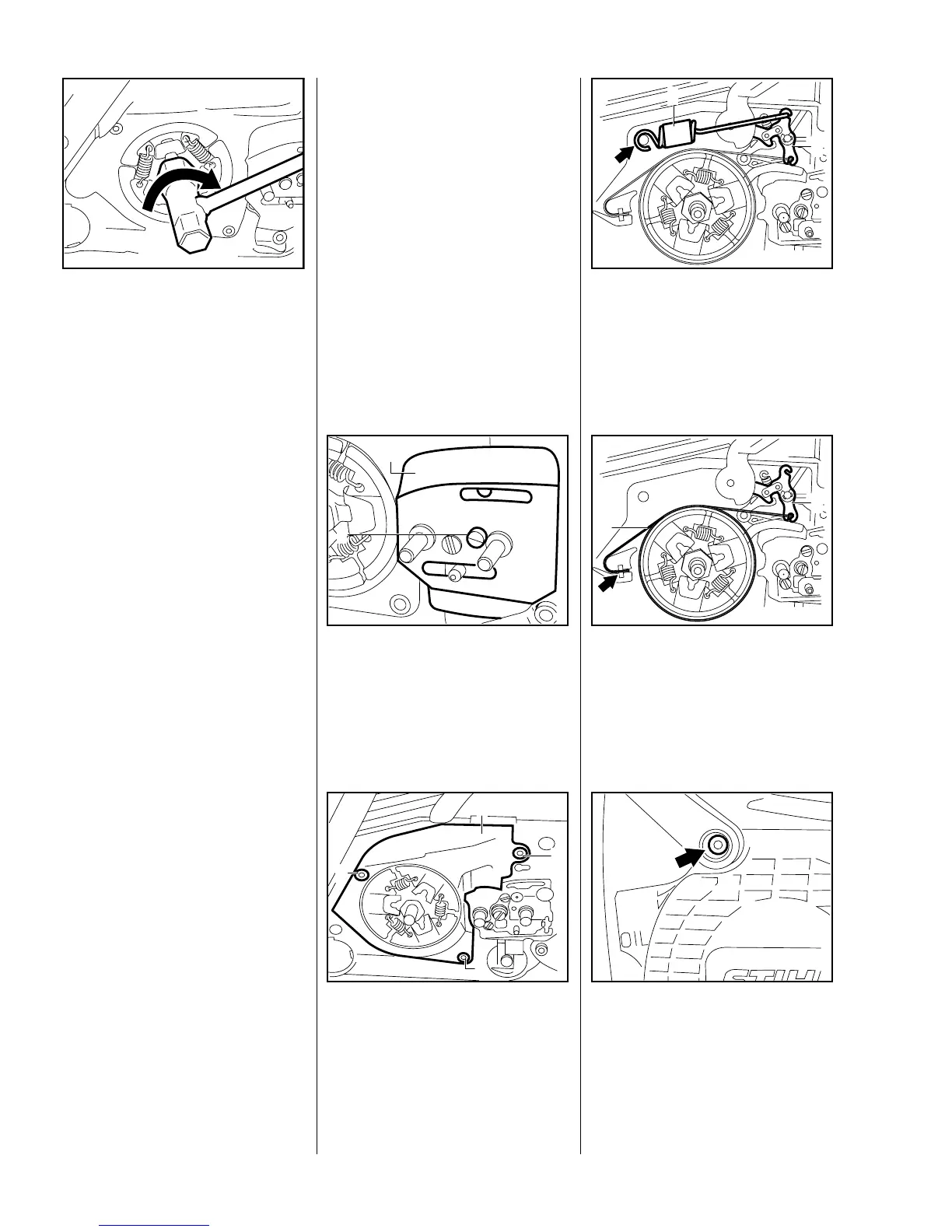

 Unscrew the clutch clockwise
from the crankshaft (left-hand
thread).
On 036, 036 QS:
Remove cover washer from the
crankshaft stub.
VA
148RA068
– Disassemble and reassemble the
clutch - see "Standard Repairs,
Troubleshooting" handbook.
– Reassemble in the reverse
sequence.
Note:
Observe tightening torque for clutch
(see "Tightening Torques").
Troubleshooting chart - see
"Standard Repairs, Trouble-
shooting" handbook.
– Remove the chain sprocket cover
and cutting attachment - see 4.1.
– Remove the clutch drum/chain
sprocket - see 4.1
 Remove mounting screw (1) from
inner side plate (2) and lift side
plate away.
– Engage the chain brake by
pushing the hand guard away
from the front handle.
VA
138RA004
1
2
 Remove mounting screws (1)
from cover (2) and lift the cover
away.
VA
138RA005
1
1
1
2
 Carefully pry the brake spring (1)
off the anchor pin and disconnect
it from the lever (2).
VA
138RA006
1
2
 Ease the brake band (1) out of
its seat in the crankcase and
disconnect it from the lever (2).
VA
138RA007
1
2
 Remove screw with captive
washer from the hand guard.
Note:
When installing, tighten down the
screw with captive washer firmly
(see "Tightening Torques").
VA
138RA008
4.4 Chain Brake (034, 036)
4.4.1 Removing
