56 034, 036, 036 QS

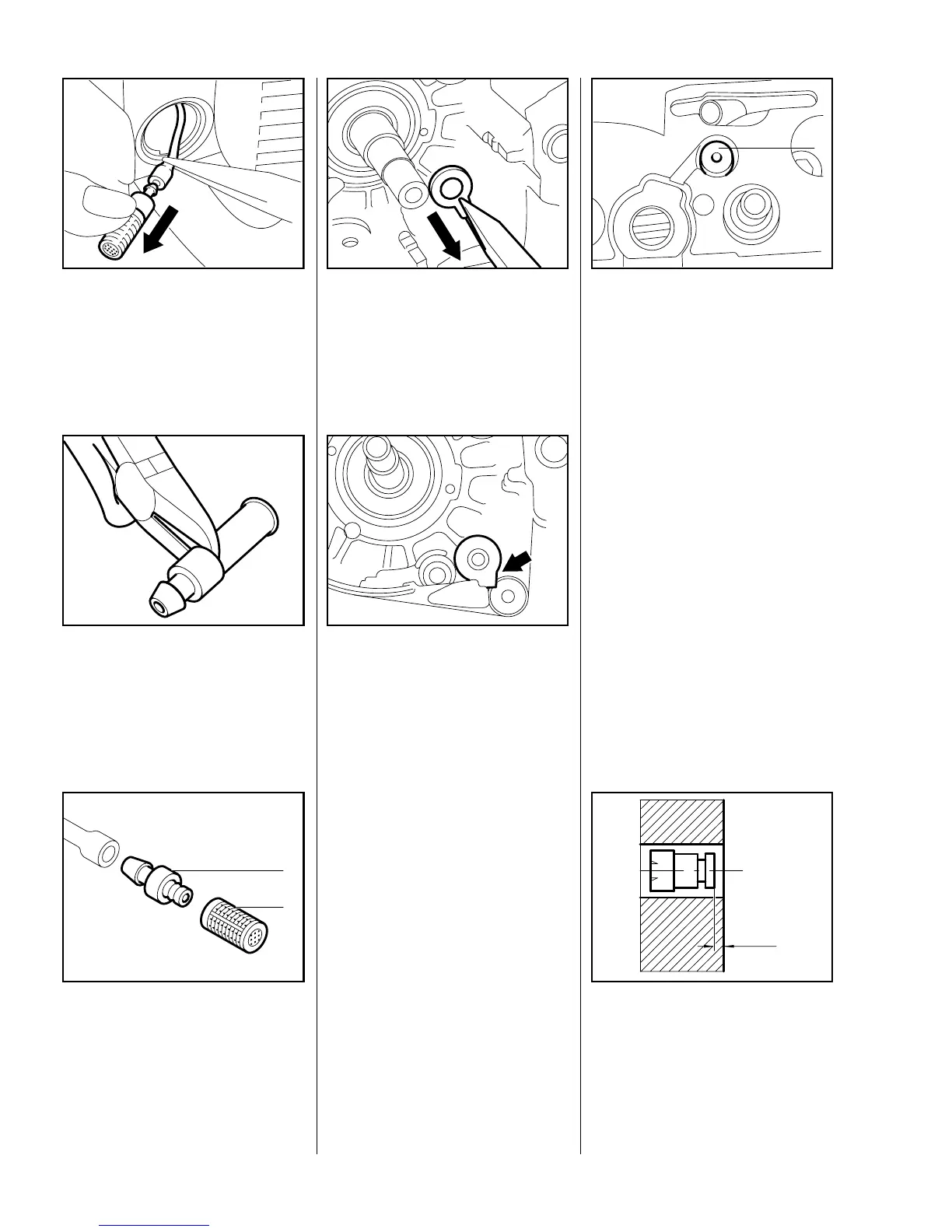

 Hold the oil hose steady and pull
out the pickup body.
VA
138RA158
 Use side cutters or similar tool to
remove the strainer from the
connector.
Important:
Always replace any damaged parts.
VA
138RA159
– Flush out the oil tank.
 Wash the strainer (2) and
connector (1) in white spirit and
blow out with compressed air.
Reassemble in the reverse
sequence.
VA
138RA160
2
1
– Remove the pickup body - see
11.1.
– Remove the oil pump - see 11.4.
 Grip the tab of the suction hose
and pull it out of the crankcase.
VA
138RA161
 Use a blunt tool to push the
suction hose into the crankcase
so that the tab locates it its seat at
the bottom right.
– Fit the pickup body - see 11.1.
– Install the oil pump - see 11.4.
VA
138RA162
A valve (1) is installed in the tank
wall to keep internal tank pressure
equal to atmospheric pressure.
– Remove the inner side plate -
see 4.2
– Drain the oil tank.
VA
148RA049
1
 Use a 7 mm drift to carefully drive
the vent valve (1) into the
crankcase and take it out of the
oil tank.
 Carefully press in the new valve
until it is about 1 mm below the
face of the crankcase.
– Fit the inner side plate - see 4.2.
1 mm
VA
138RA164
11.2 Suction Hose 11.3 Vent Valve
