Stihl 034 Series User Manual

69034, 036, 036 QS

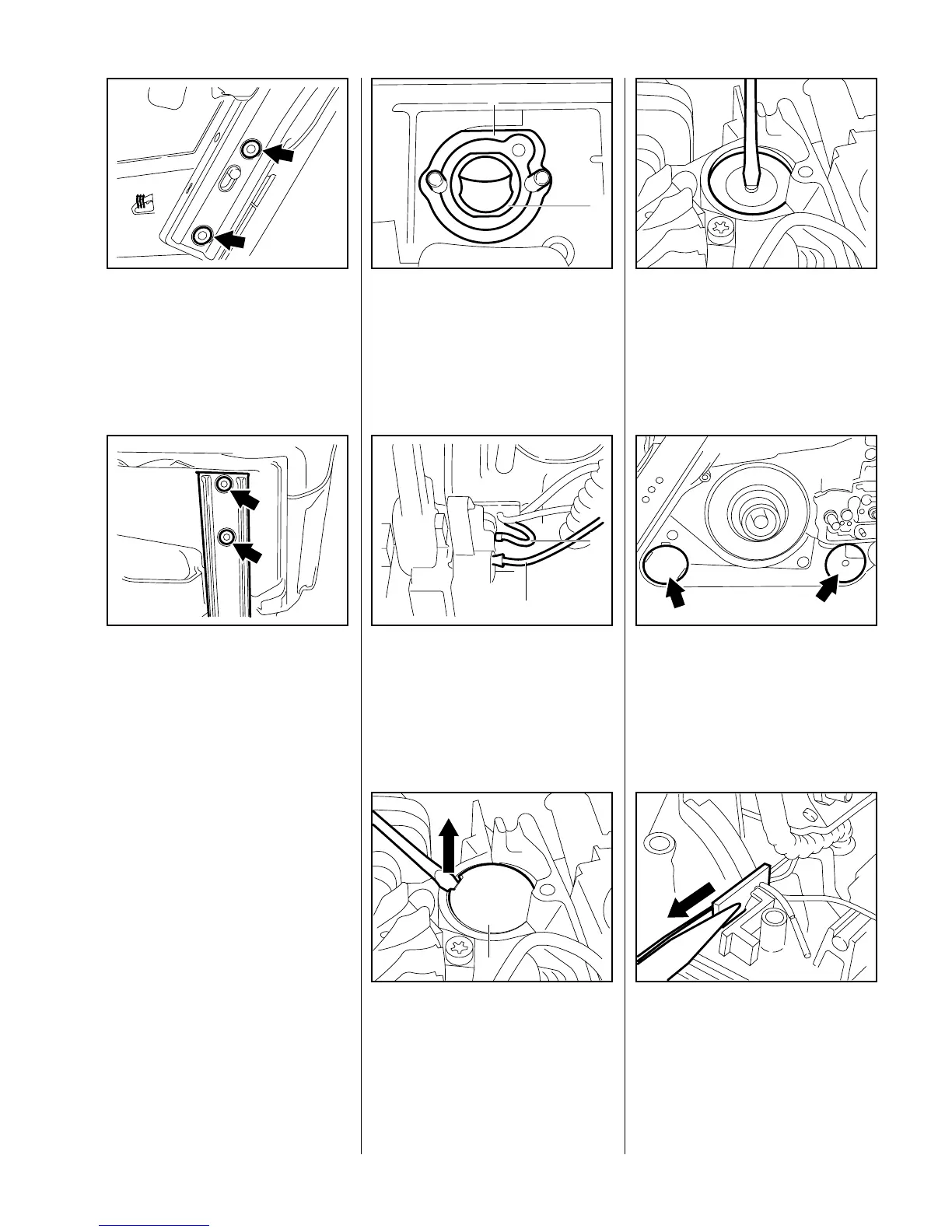

– Drain the tank housing.
 Remove mounting screws from
side of front handle.
VA
138RA206
 Remove mounting screws from
underside of front handle. Lift
away the handle.
Note:
To remove front handle on
machines with handle heating
see 10.4.
VA
138RA207
– Remove the carburetor -
see 12.3.
– Remove the shroud - see 4.3.
 Pull the washer (1) off the studs
and remove the sleeve (2) from
the manifold.
VA
138RA023
1
2
 Pull the connector sleeves of the
short circuit wire (2) and ground
wire (1) off the contact springs.
VA
138RA208
2
1
– Remove the fan housing - see
6.4.1.
 Pry the plug (1) out of the annular
buffer at the ignition side.
VA
138RA209
1
 Remove the annular buffer
mounting screw.
– Remove the chain catcher -
see 4.2.
VA
138RA210
 Pry the plugs out of the annular
buffers at the starter side.
– Remove annular buffer mounting
screws.
VA
138RA115
 Pull the grommet with ground and
short circuit wires out of the
crankcase.
VA
138RA149
12.8 Tank Housing
12.8.1 Removing and Installing
