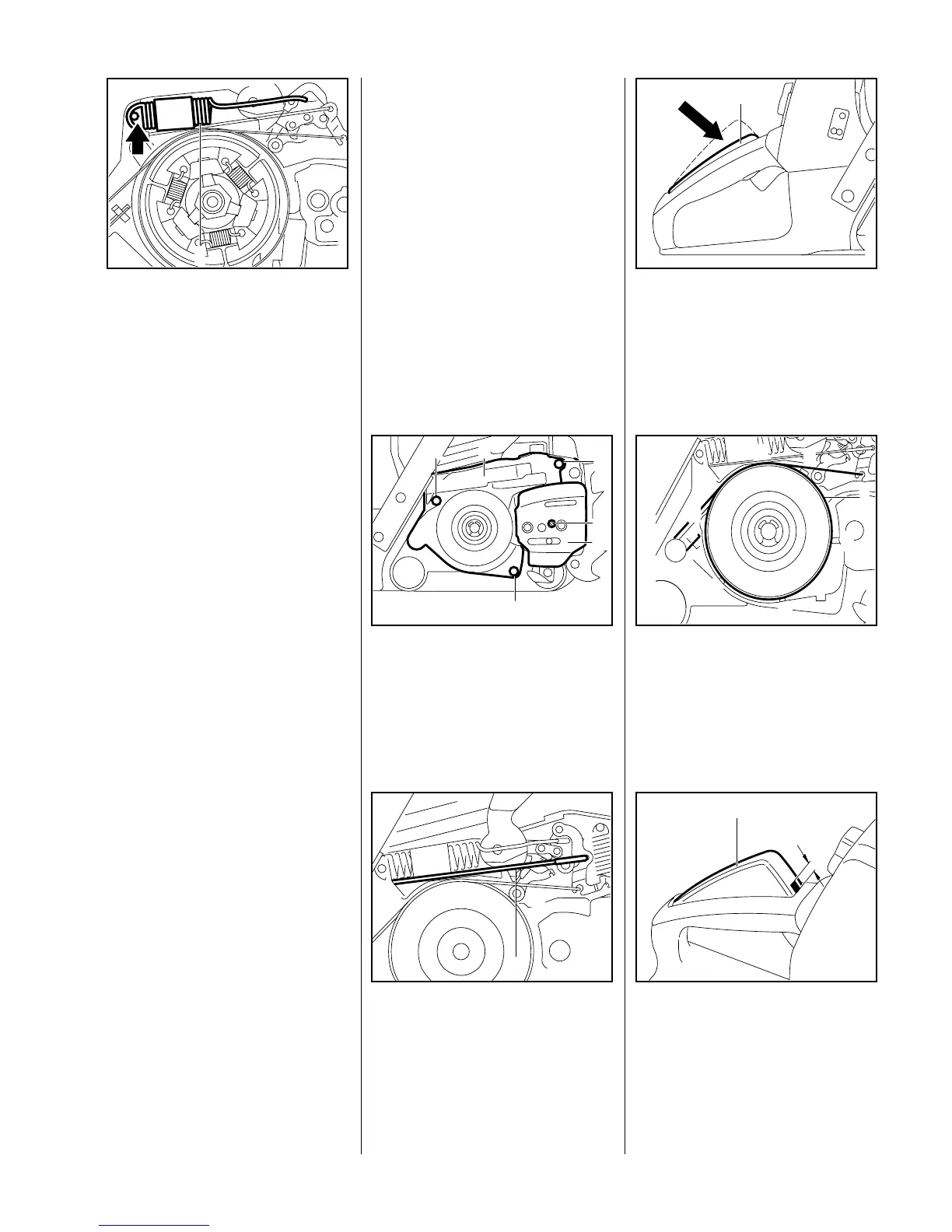

15034, 036, 036 QS
Use the assembly tool
1117 890 0900 to attach the
brake spring (1) to the anchor pin.
Fit cover over the chain brake -
see 4.5.1.
Fit inner side plate - see 4.5.1.
VA
148RA098
1
Install the clutch drum/chain
sprocket - see 4.1.
Fit the cutting attachment and
chain sprocket cover - see 4.1.
Pull hand guard toward front
handle.
Unscrew nut from chain sprocket
cover and remove the cover - see
4.1.
Remove the cutting attachment -
see 4.1.
Take out screw (1) and remove
the side plate (2).
Take out screws (3) and remove
the cover (4).
VA
148RA070
4
2
3
3
3
1
The brake cable (1) must hang
loosely in the crankcase when
the brake is disengaged.
VA
148RA079
1
Press down interlock lever (1) all
the way and hold it in that
position.
VA
148RA080
1
The brake band (1) must locate
without any play against the
points (A) in the crankcase.
VA
148RA081
A
A
A
A
A
1
A
Let go of the interlock lever (1).
Check free travel by slowly
squeezing the interlock lever (1).
Play must be within the mark (B)
at the front end of the interlock
lever.
VA
148RA082
1
B
4.5.3 Checking Play
