14 034, 036, 036 QS

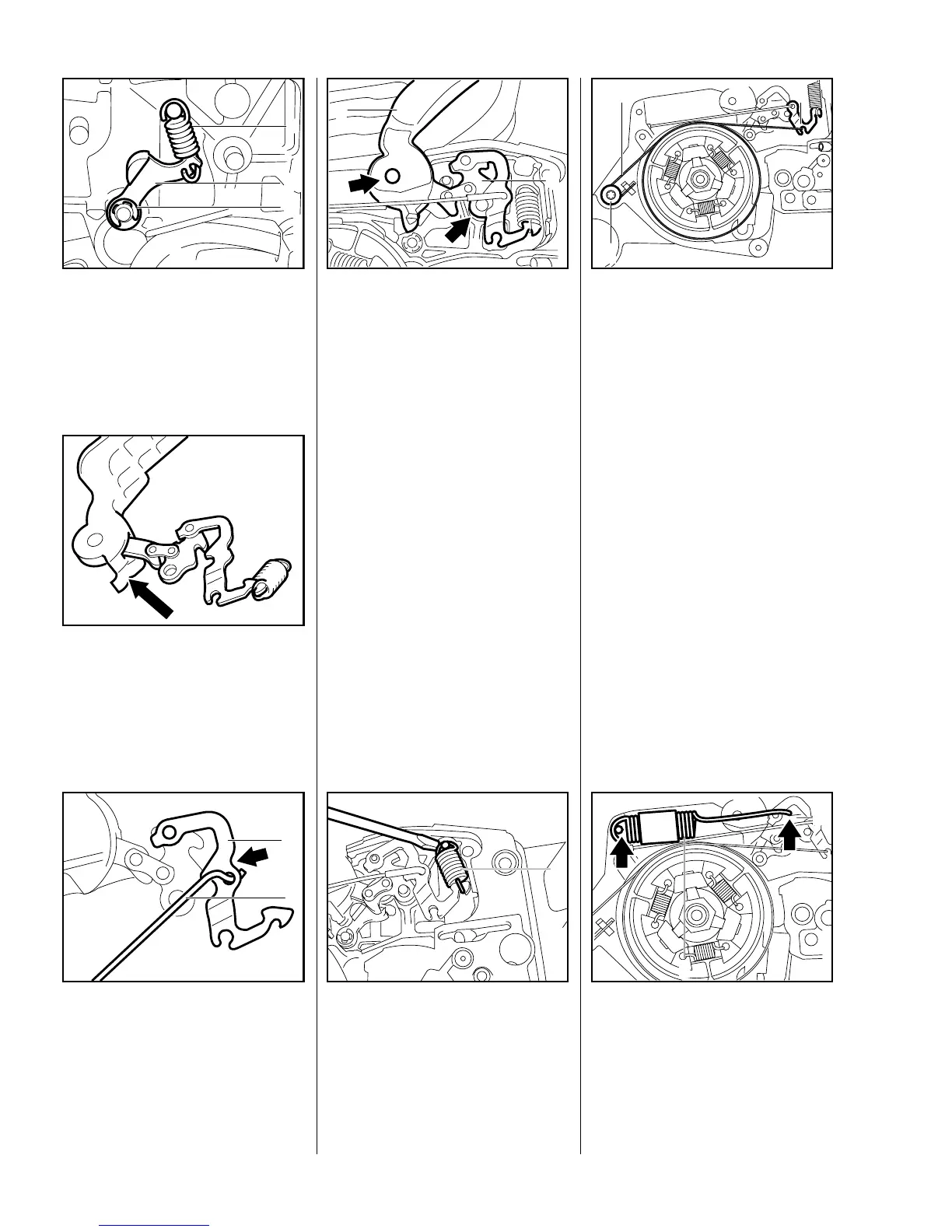

 Fit the lever (2) and spring (1).
 Fit the E-clip (3).
VA
148RA076
1
2
3
 Insert lever in the side of the hand
guard as shown.
VA
148RA077
 Attach brake cable (1) to hole
(arrow) in brake lever (2).
VA
148RA075
2
1
 Position the hand guard (1)
against the pivot pin and fit the
other side of the hand guard over
the fan housing.
 Press the lever (1) slightly
downward and push the hand
guard and brake lever (2) onto
VA
148RA078
1
2
the pivot pins.
– Insert screw with captive washer
for hand guard and tighten down
firmly (see "Tightening Torques").
Important:
Coat all sliding and bearing points
with STIHL multipurpose grease,
see 13.2, or (better) with
molybdenum grease (e.g.
Molykote), see 13.2.
Do not lubricate the brake band.
 Attach spring (1) to the pivot pin.
VA
148RA073
1
 First attach the brake band (2) to
the brake lever (3) and then push
it into the slot in the crankcase.
 Install screw (1) with LOCTITE
243 and tighten down firmly (see
"Tightening Torques")
3
2
1
VA
148RA072
 Hook the brake spring (1) to the
brake lever (2).
VA
148RA071
1
2
4.5.2 Installing
