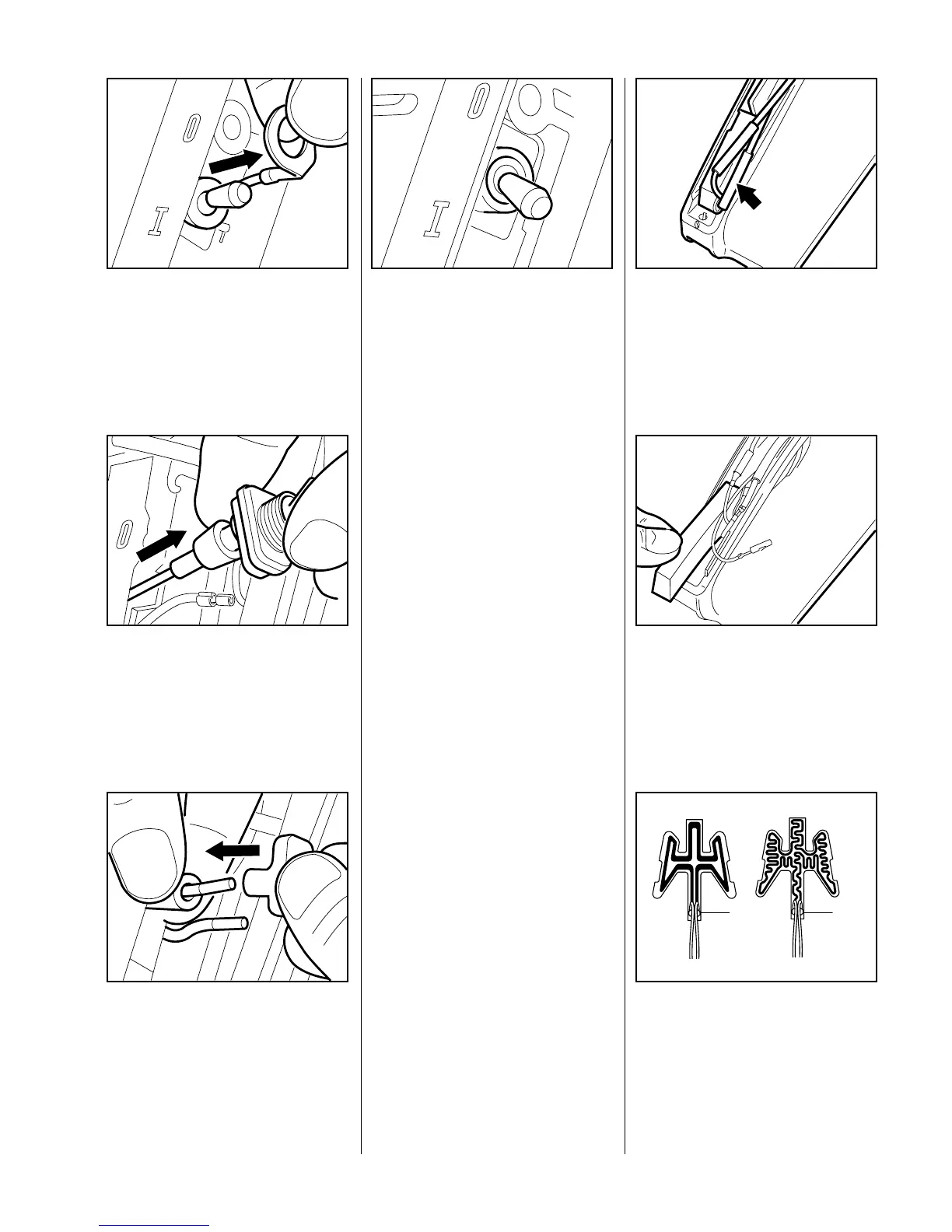

– The front handle has to be
removed for access to the heater
switch - see 12.8.1.
 Take the ground wire ring
terminal off the switch.
VA
138RA135
 Pull the switch out of its seat.
VA
138RA136
 Push back the rubber grommet a
little and pull the connector
sleeve out of the switch.
VA
138RA137
Reassemble in the reverse
sequence.
Note:
Check correct installed position of
switch in its seat (switch seat in not
symmetrical).
VA
138RA138
– Remove the handle molding -
see 10.1
 Slide the insulating tubes off the
two pin and socket connectors.
Separate the connectors.
VA
138RA131
 Take the pressure pad out of the
handle recess.
– Release and remove the heating
element.
VA
138RA143
Important:
 Make sure you install the heating
element that matches the
flywheel - see 6.4
1 = Previous heating element
2 = New heating element
VA
148RA217
1 2
10.2 Heater Switch 10.3 Heating Element
in Rear Handle
