Stihl 034 Series User Manual

55034, 036, 036 QS

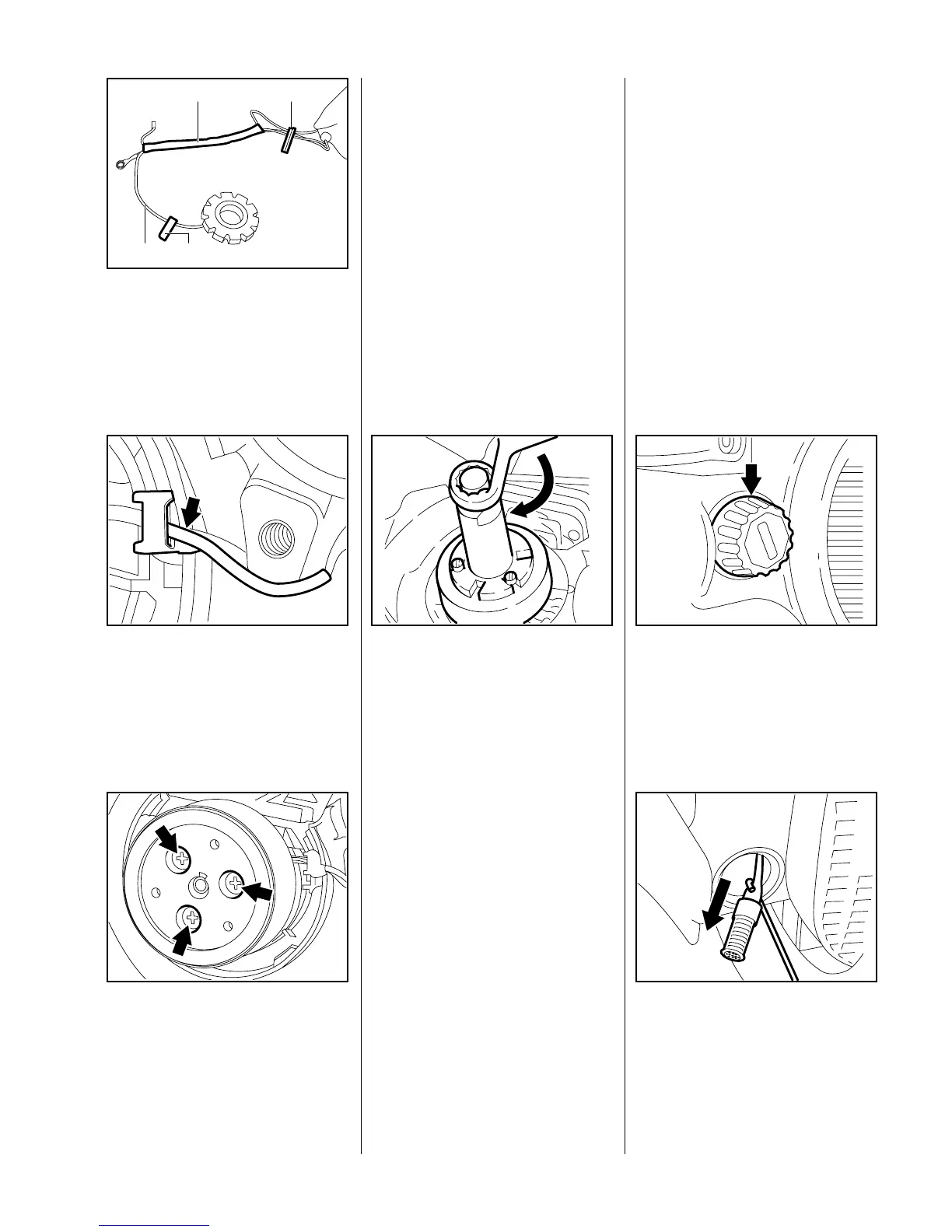

 Thread the generator wire (1)
through the retainer (4), the
insulating tube (2) and rubber
grommet (3).
VA
1
2 3
4
138RA152
– Position the generator against
the flange face.
 The generator wire must locate in
the crankcase recess (arrow).
VA
138RA153
– Coat threads of screws with
LOCTITE, see 13.2, fit them in
the generator and tighten down
moderately.
VA
138RA154
 Fit centering tool 1118 893 3500
on the crankshaft so that its
groove engages the Woodruff
key.
 Finally tighten the three
generator mounting screws (see
"Tightening Torques").
 Remove the centering tool. If
necessary, use the puller
1107 890 4500 to remove the
centering tool from the
crankshaft.
– Install the ignition module - see
6.5.1
VA
138RA155
Reassemble all other parts in the
reverse sequence.
Impurities gradually clog the fine
pores of the filter with tiny particles
of dirt. This prevents the oil pump
from supplying sufficient oil to the
bar and chain. In the event of
problems with the oil supply, first
check the oil tank and the pickup
body. Clean the oil tank if
necessary.
 Remove the oil filler cap and the
cap retainer.
– Drain the oil tank.
VA
138RA156
 Use hook 5910 893 8800 to pull
the pickup body out of the oil
tank.
Note:
Do not stretch the oil hose too much
during this operation.
VA
138RA157
10.5.2 Installing 11 Chain Lubrication
11.1 Pickup Body
