46 034, 036, 036 QS

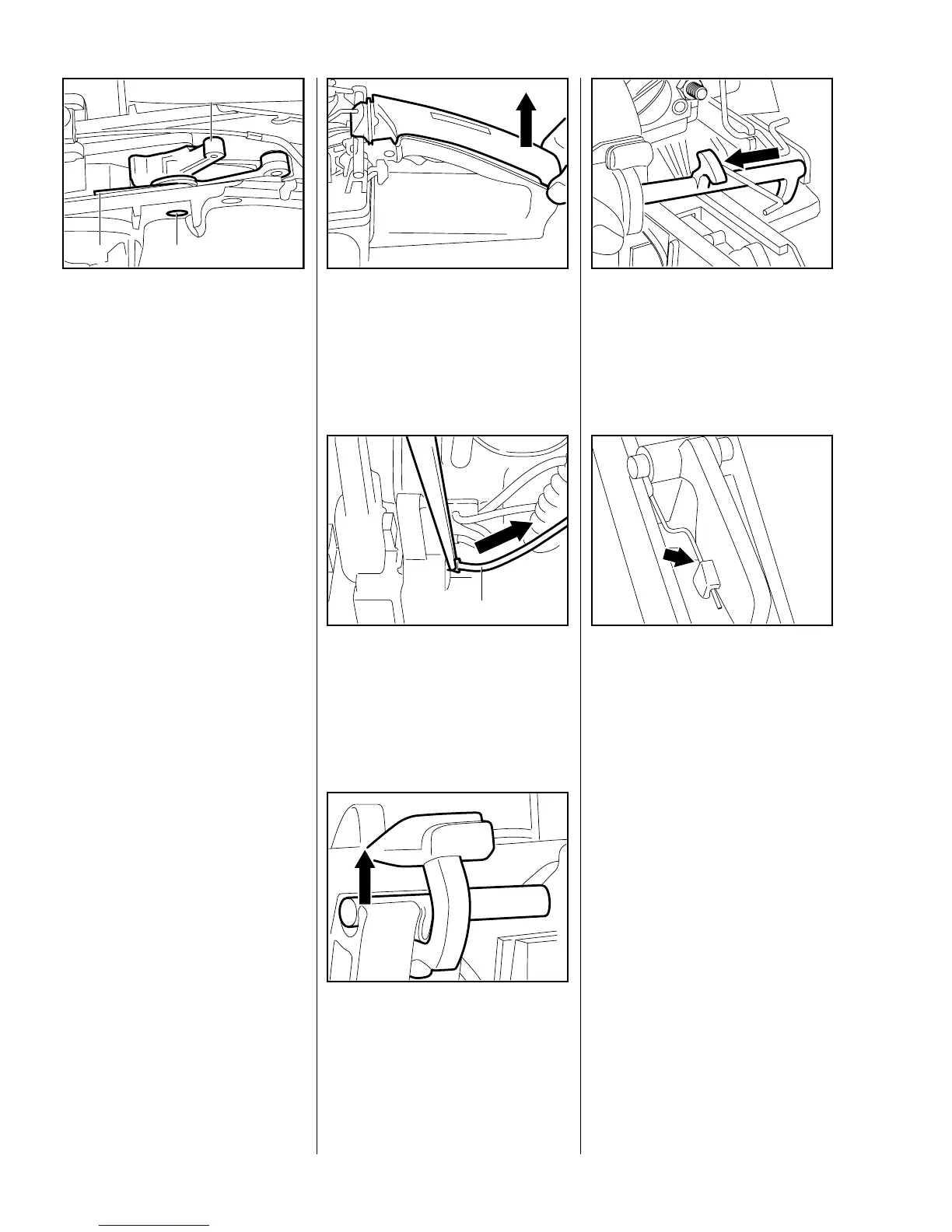

– To remove the throttle trigger,
first remove the switch shaft -
see 9.4
 Use a 5 mm drift to drive out the
cylindrical pin (3) and then
remove the throttle trigger (2)
with torsion spring (1).
VA
148RA058
2
3
1
– Take the torsion spring off the
throttle trigger.
Install in the reverse sequence.
Note:
When installing, make sure that
short arm of torsion spring locates in
the throttle trigger. The long arm
points toward the carburetor.
– Remove the air filter - see 6.4.
 Take out the handle molding
fastening screw. Lift away the
handle molding.
VA
138RA130
(034, 036)
– Remove the interlock lever -
see 9.2
 Take short circuit wire (1) out of
cam on switch shaft.
VA
138RA090
1
– Move the Master Control lever up
to "STOP".
 Pry the switch shaft out of its
mounting at the ignition side.
VA
138RA126
 Take the switch shaft out of its
mounting.
Install in the reverse sequence.
VA
138RA127
Note:
When installing, make sure that the
throttle rod is above the switch shaft
and the lug at the front end of the
handle molding engages properly
under the seat on the tank housing
Note: (034, 036)
VA
138RA128
When fitting the handle molding
make sure that the torsion spring,
throttle rod and interlock lever are
correctly positioned. The torsion
spring must pass under the
interlock lever’s pivot mount and
engage the notch in the interlock
lever (arrow).
9.4 Switch Shaft
