34 034, 036, 036 QS

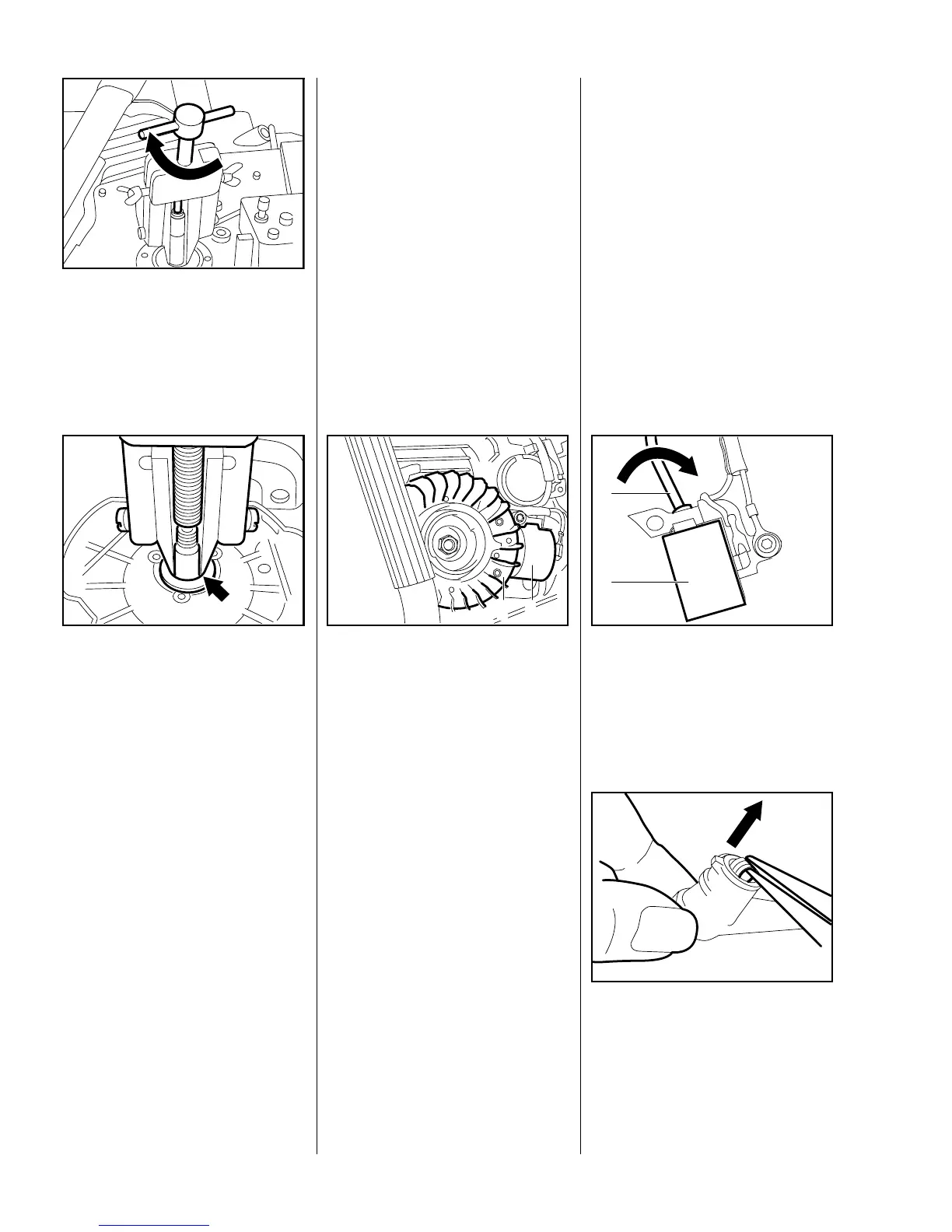

 Apply the puller at the clutch side
and rotate the spindle clockwise
to pull the oil seal out of the
crankcase.
VA
138RA083
 Apply the puller at the ignition
side and rotate the spindle
clockwise to pull the oil seal
out of the crankcase.
Important:
When using the puller, make sure it
does not damage the crankcase
VA
138RA085
surface or the ball bearing cages.
Install the oil seals as described
under 5.5.2.
– Install the generator - see 10.5.2.
– Reassemble all other parts in the
reverse sequence.
Exercise extreme caution when
carrying out maintenance and repair
work on the ignition system. The
high voltages which occur can
cause serious or even fatal
accidents.
Troubleshooting on the ignition
system should always begin at the
spark plug - see "Standard Repairs,
Troubleshooting" handbook.
Note:
The electronic (breakerless) ignition
system basically consists of an
ignition module (1) and flywheel (2)
which requires no outside power
source (battery or dynamo). A
special flywheel (with ring magnet
for the generator) is installed in
VA
138RA086
2 1
models with handle or carburetor
heating system.
– Remove the air filter - see 12.1
– Pull boot off the spark plug.
– Remove the shroud - see 4.3
– Remove the ignition module - see
6.5.1
– Pull the ignition lead out of seat in
crankcase.
 Unscrew the ignition lead (1) from
high voltage output on ignition
module (2).
– Pull the insulating tube off the
ignition lead.
VA
138RA087
1
2
 Use a suitable pair of pliers to grip
the leg spring and pull it out of the
spark plug boot.
VA
138RA088
6 Ignition System 6.1 Ignition Lead/
Spark Plug Boot
