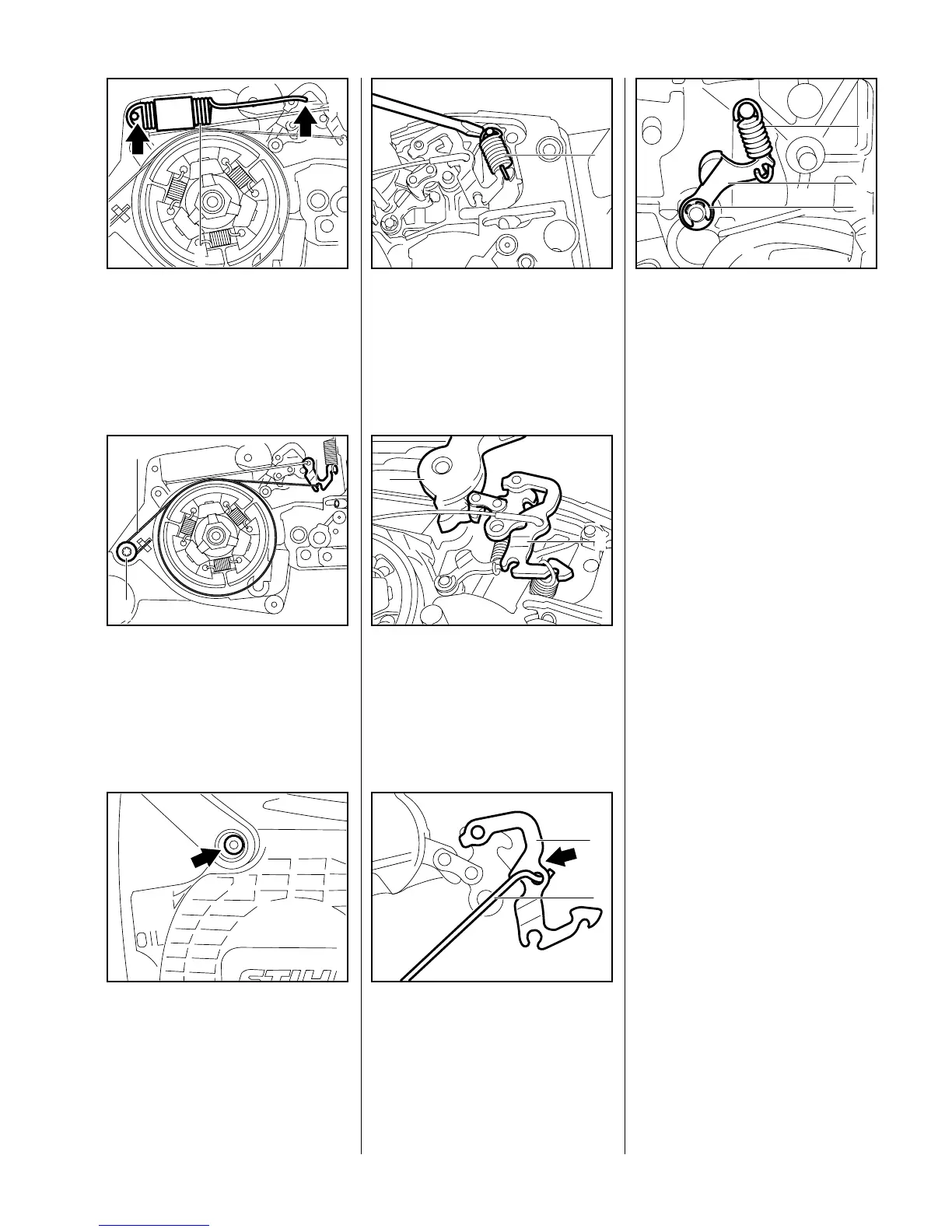

13034, 036, 036 QS
Carefully pry the brake spring (1)
off the anchor pin and disconnect
it from the lever (2).
VA
148RA071
1
2
Remove the screw (1).
Ease the brake band (2) out of
its seat in the crankcase and
disconnect it from the lever (3).
3
2
1
VA
148RA072
Remove screw with captive
washer from the hand guard.
Note:
When installing, tighten down the
screw with captive washer firmly
(see "Tightening Torques").
VA
138RA008
Carefully pry spring (1) off the
pivot pin.
VA
148RA073
1
Pull the hand guard (2) and brake
lever (1) off the pivot pins.
VA
148RA074
2
1
Disconnect brake cable (1) from
the brake lever (2).
Take the brake lever out of the
hand guard.
VA
148RA075
2
1
Disconnect spring (1) from
lever (2).
Pry the E-clip (3) off the pivot pin
and remove the lever with spring.
Clean all disassembled parts in
VA
148RA076
1
2
3
white spirit. Replace any worn or
damaged parts.
