23034, 036, 036 QS
– Coat thread of setscrew in
cylinder with LOCTITE - see
13.2.
– Insert setscrew and tighten down
firmly (see "Tightening Torques").
– Lubricate the inside of the
cylinder with oil and line it up so
that it is positioned as it will be in
the installed condition.

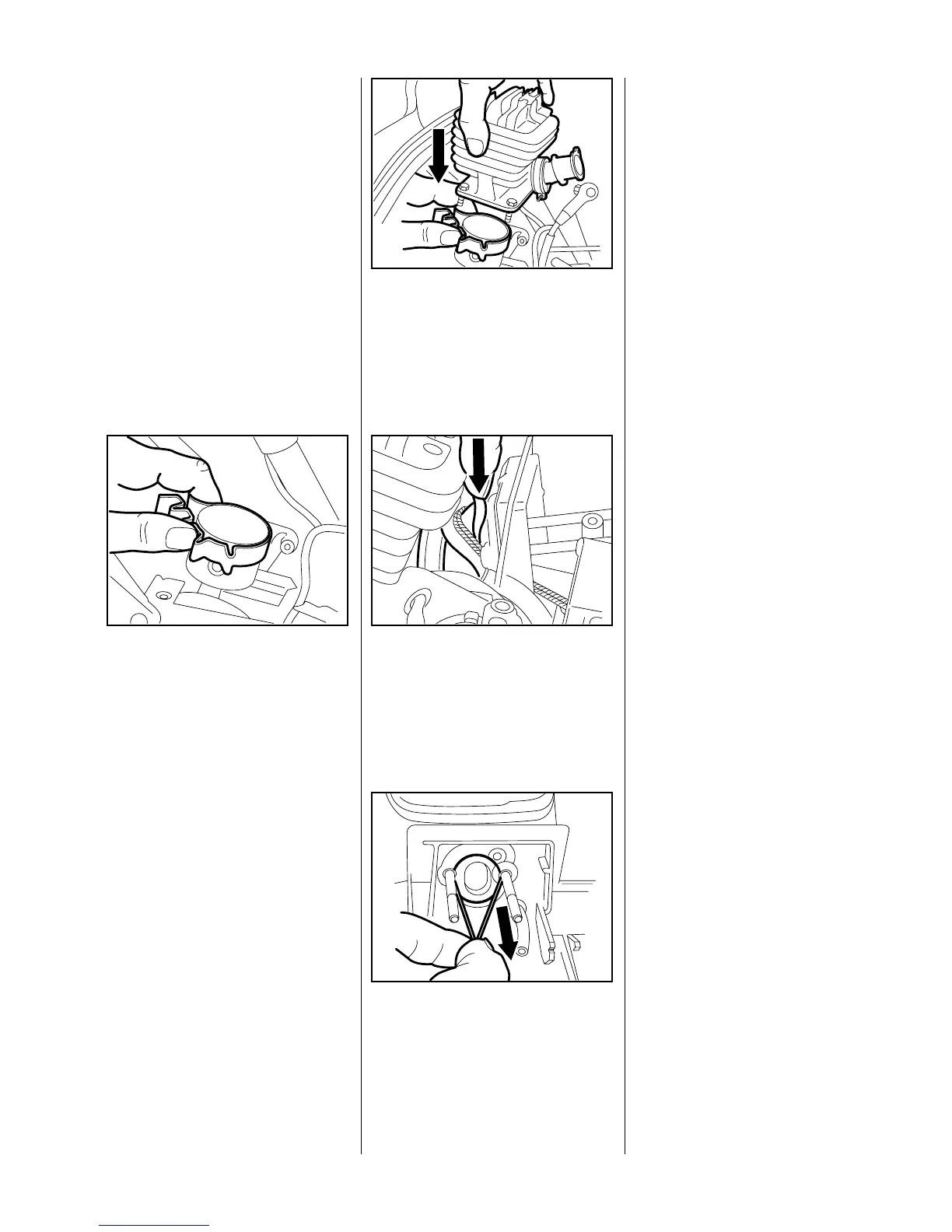

Use the clamping strap
0000 893 2600 to compress the
rings around the piston. Check
VA
138 RA 039
correct installed position of rings
once again.
Note:
To make cylinder installation easier,
apply clamping strap so that it is just
below the piston crown.
Slide the cylinder over the piston.
– Remove the wooden assembly
block and clamping strap.
VA
138 RA 040
Wind a piece of string (about
15 cm long) around the back of
the manifold flange, press the
manifold down and pass the ends
of the string through the intake
opening.
VA
138RA041
Pull the ends of the string
outward. The manifold flange is
pulled through the tank housing
intake opening without damaging
the manifold.
VA
138RA042
– Carefully line up the cylinder and
gasket.
– Fit cylinder base screws and
torque down firmly in a diagonal
pattern (see "Tightening
Torques").
Important:
It is essential to observe the
specified tightening torque as the
screws might otherwise work loose.
Assemble all other parts in the
reverse sequence. Always install
new gaskets.
