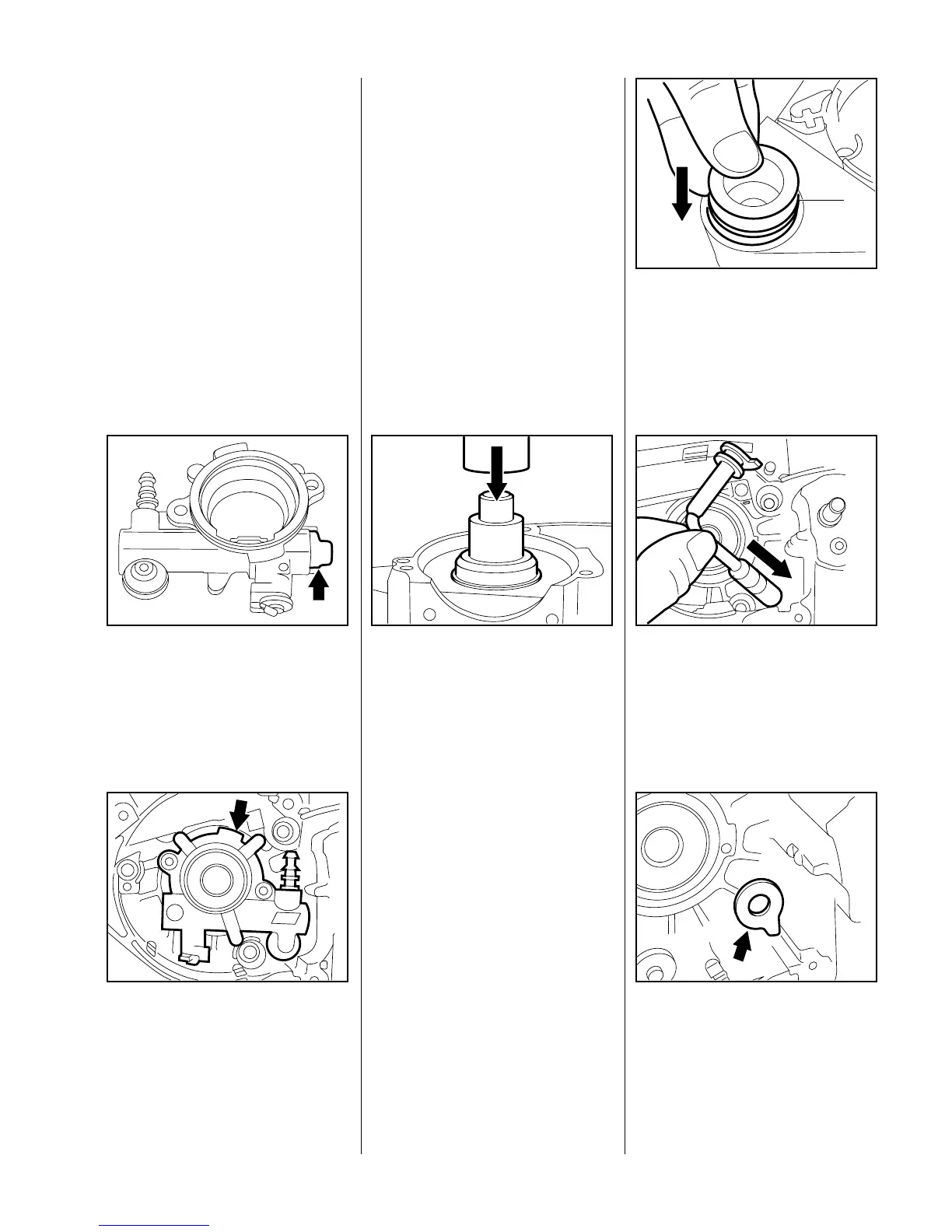

27034, 036, 036 QS
See illustrated parts list for correct
installed sequence and positions of
crankcase components.
Pull the plastic plug out of the oil
pump.
VA
138RA059
Position the oil pump against the
crankcase. Insert and tighten
down the mounting screws.
– Before heating the crankcase,
remove all rubber and polymer
VA
138RA060
components, such as oil suction
and delivery hoses, grommets,
annular buffers and levers - see
8.1 and 11.4.
– Inspect condition of all parts and
replace as necessary.
– Heat area of bearing seat on
clutch side of crankcase to
approx. 120°C.
Place ball bearing in position and
press it in until it locates against
the oil pump.
Note:
The ball bearing can be fitted by
hand if the crankcase is heated as
specified. This operation must be
VA
138RA061
carried out very quickly because the
bearing absorbs heat immediately
and begins to expand.
– Remove the oil pump and refit the
plastic plug.
Push the two annular buffers,
tapered end first, into position so
that the groove (1) engages over
the housing rib.
VA
138RA062
1
Push the oil suction hose into the
crankcase bore.
VA
138RA063
Use a blunt tool to push the oil
suction hose into the bore so that
its tab locates in the bottom right
recess.
VA
138RA064
