Stihl 034 Series User Manual

30 034, 036, 036 QS

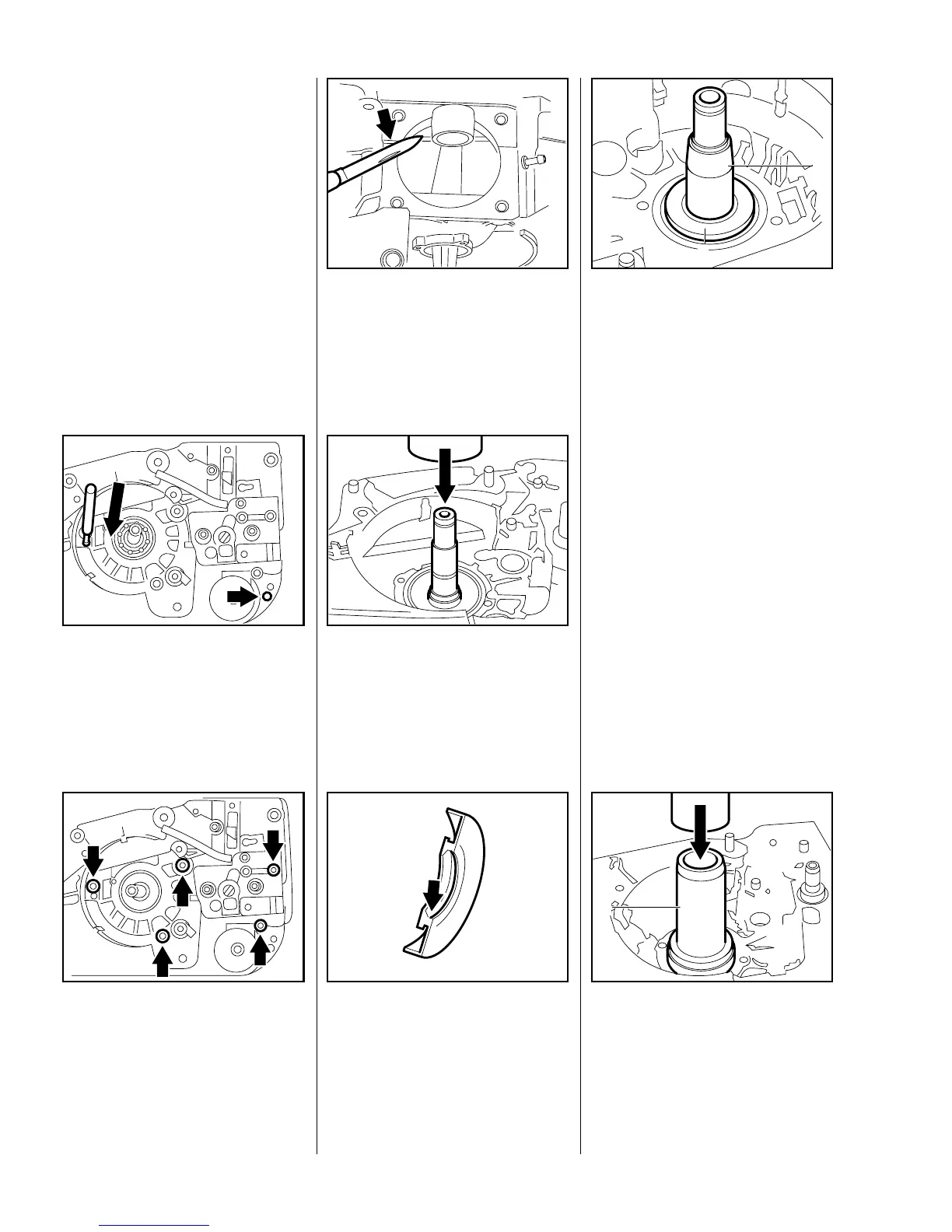

– Unscrew the hexagon nuts.
Unscrew the spindle clockwise
and take away the service tool.
– Take out the two M5x72 screws.
 Drive home the two dowel pins.
VA
138RA073
 Fit the five crankcase mounting
screws and tighten them down
alternately in a diagonal pattern
(see "Tightening Torques").
VA
138RA046
 Trim away any excess gasket
material in the area of the
cylinder mounting face.
VA
138RA074
 If the crankshaft does not turn
freely, it is sufficient to tap the
end of the stub with a plastic
mallet to relieve axial stresses.
VA
138RA075
 Before installing oil seal, coat
cavity between dust and sealing
lips with grease - see 13.2.
VA
138RA076
 Fit the installing sleeve (1)
1118 893 4602 over the clutch
end of the crankshaft.
 Slip the oil seal (2), open side
facing the crankcase, over the
installing sleeve.
VA
138RA077
2
1
 Press home the oil seal with
press sleeve (1) 1118 893 2401.
– Remove the installing sleeve.
VA
138RA078
1
