Stihl FS 260 User Manual

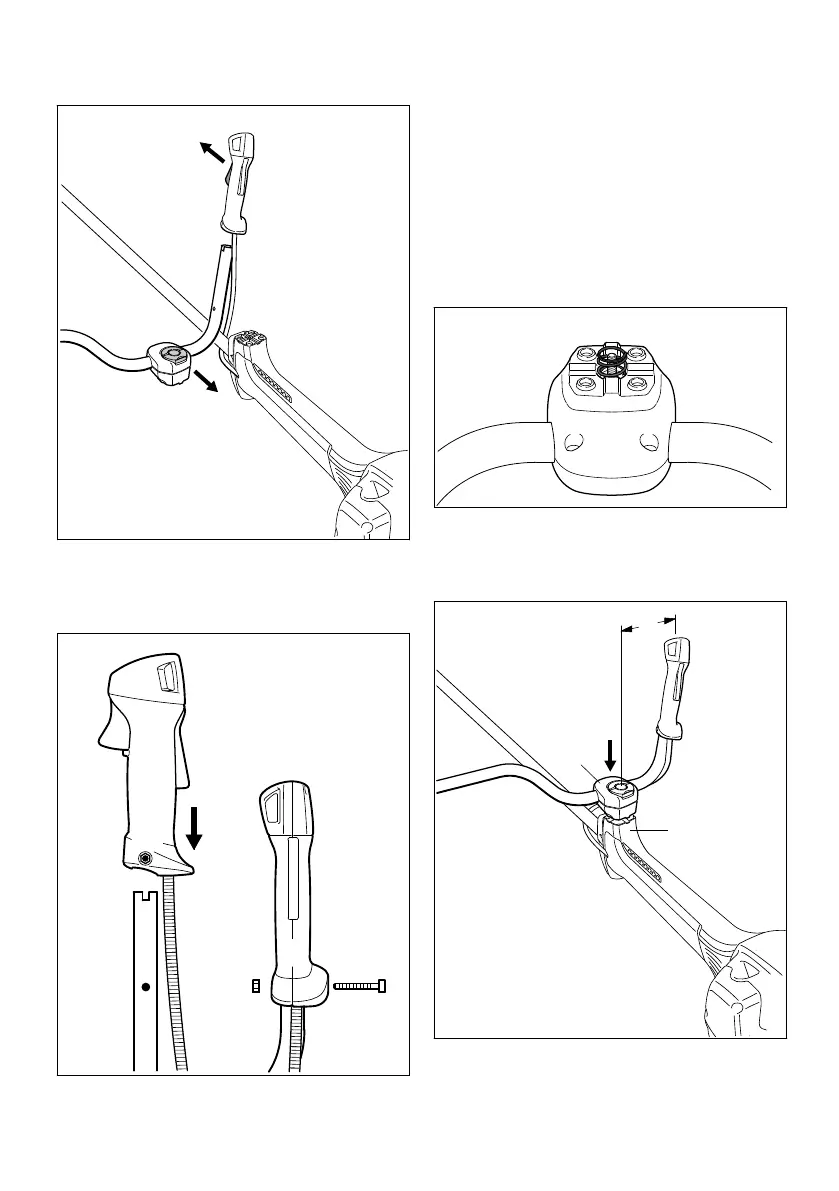

► Take out the screw (3) and remove the nut (4)
from the control handle (5).
7
5
6BA002 KN
6
2
► Line up control handle (5) in relation to handle‐
bar (2): Throttle trigger (6) must point toward
the gearbox and the clamp screw (7) toward
the engine.
8
6BA019 KN
2
8
3
5
4
► Holding the control handle (5) in that position,
push it on to the end of the handlebar (2) and
line up the holes (8).
► Fit the nut (4) in the control handle (5), insert
the screw (3) and tighten it down firmly.
4.3 Assembling the Handle Sup‐
port
To assemble the swiveling handle support it is
necessary to fit a spring in the clamps and
secure them to the handle support on the
machine.
6BA001 KN
9
10
► Use the spring (9) from the parts kit supplied
with the machine.
► Place the spring (9) in the lower clamp mold‐
ing (10).
11
1
6BA020 KN
2
A
► Position the clamp moldings (1) with handle‐
bar (2) on the handle support (11).
English 4 Mounting the Bike Handle
14 0458-743-0121-E

Stihl FS 260 Specifications

General

Type	Brush cutter
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	2.7 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	9000 RPM
Number of strokes	2
Sound power level	114 dB
Fuel tank capacity	0.75 L
Vibration emission	3.8 m/s²
Engine displacement	41.6 cm³
Sound pressure level	102 dB
Cutting diameter (max)	480 mm
Power source	Gasoline

Weight and Dimensions

Length	1680 mm
Weight	7500 g
