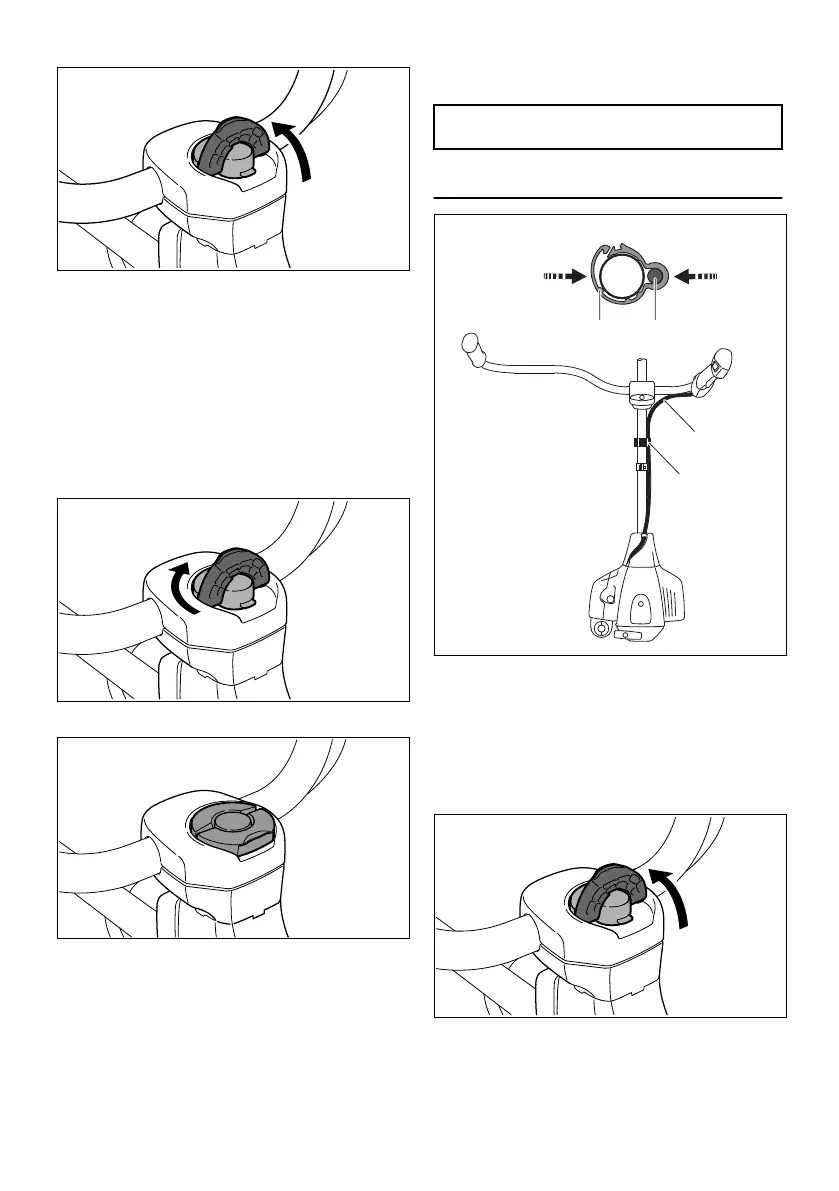

► Raise the grip of the wing screw (7) to the
upright position.
► Turn the wing screw counterclockwise as far
as stop.
► Push the wing screw into the handle support
as far as stop and then screw it down – but do
not finally tighten yet.
► Adjust the handlebar (2) so that distance A is
no more than 15 cm.
► Line up the handlebar at a right angle to the
drive tube.
6BA005 KN
► Turn the wing screw clockwise as far as stop.
6BA006 KN
► Fold the grip of the wing screw down so that it
is flush.
4.4 FS 260: Fitting the throttle
cable
NOTICE
Do not kink the throttle cable or lay it in tight radii
– make sure the throttle trigger moves freely.
002BA439
12
13
13
12
► Position the clamp (13) and handle sup‐
port (12) against the drive tube.
► Close the throttle cable retainer (13). The
retainer (13) snaps into place.
4.5 Adjusting the Handlebar
Opening the wing screw
6BA023 KN
► Raise the grip of the wing screw to the upright
position.
4 Mounting the Bike Handle English
0458-743-0121-E 15

Stihl FS 260 Specifications

General

Type	Brush cutter
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	2.7 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	9000 RPM
Number of strokes	2
Sound power level	114 dB
Fuel tank capacity	0.75 L
Vibration emission	3.8 m/s²
Engine displacement	41.6 cm³
Sound pressure level	102 dB
Cutting diameter (max)	480 mm
Power source	Gasoline

Weight and Dimensions

Length	1680 mm
Weight	7500 g
