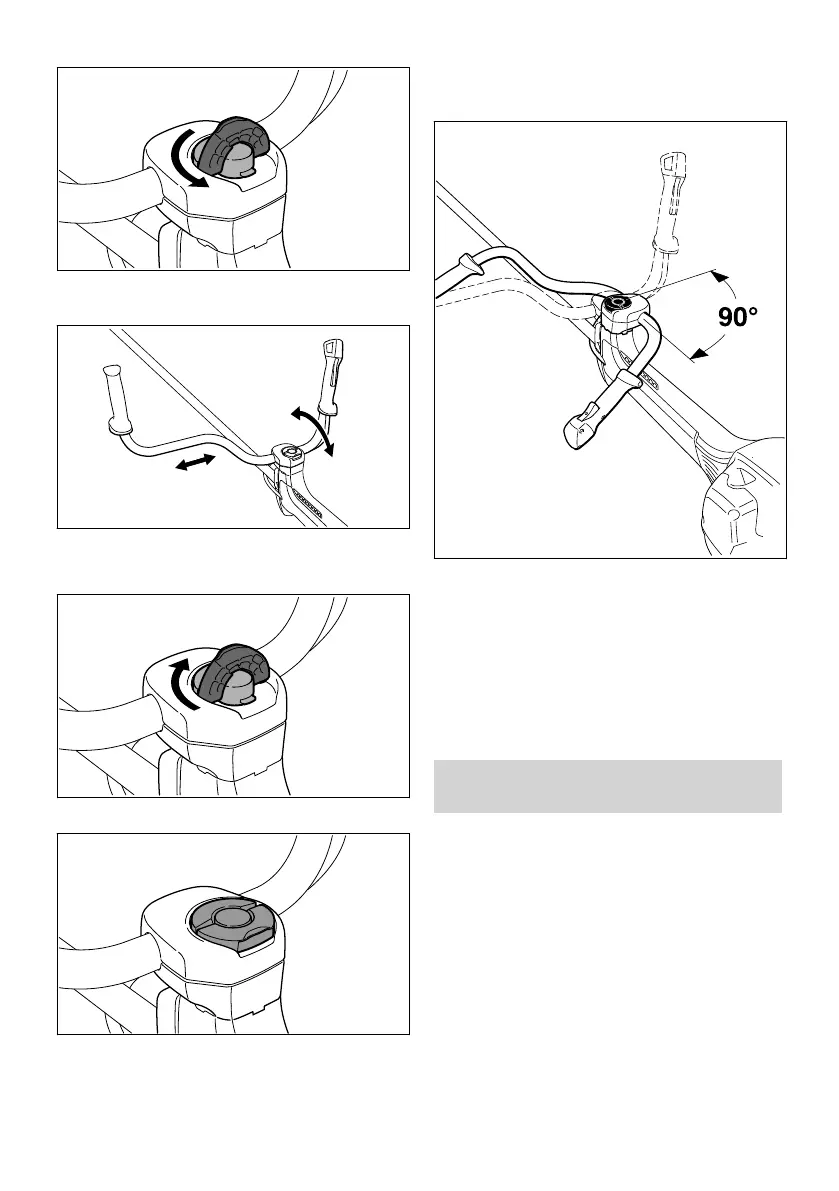

► Turn the wing screw counterclockwise until the
handle support can be moved.
► Move the handlebar to the required position.
Closing the wing screw
► Turn the wing screw clockwise as far as stop.
► Fold the grip of the wing screw down so that it
is flush.
4.6 Swiveling the Handlebar
Transport position
► Loosen the wing screw (7) and unscrew it until
the handlebar (2) can be turned clockwise.
► Turn the handlebar 90° and then swing the
handles down.
► Tighten down the wing screw (7) firmly.
Working position
► Reverse the sequence described above to
swing the handles up and turn the handlebar
counterclockwise.
5 Adjusting the Throttle
Cable
It may be necessary to correct the adjustment of
the throttle cable after assembling the machine
or after a prolonged period of operation.
Adjust the throttle cable only when the unit is
completely and properly assembled.
English 5 Adjusting the Throttle Cable
16 0458-743-0121-E
