Guard ring for sawing applications
5
002BA491 KN
4
2
Fit guard ring (4) only when you use circular saw
blades.

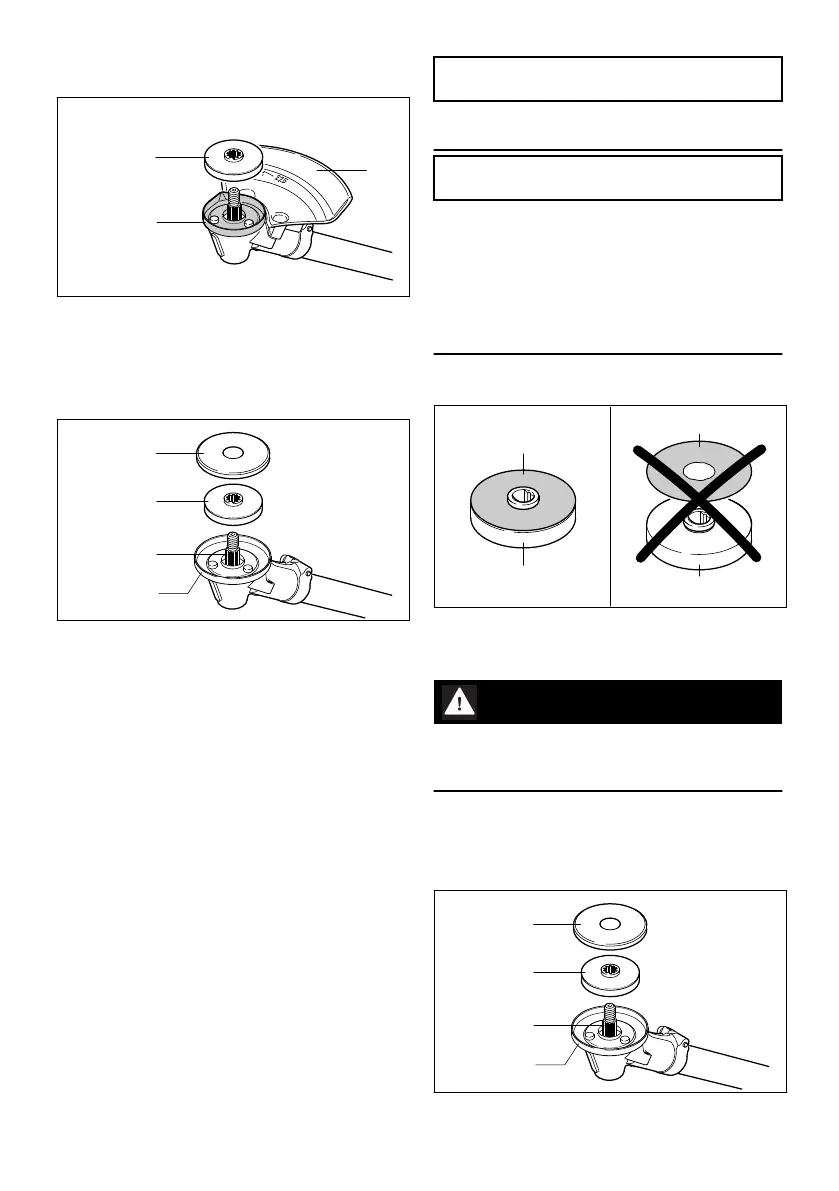

8.3 Mounting the Thrust Plate and
Guard Washer
002BA407 KN
1
2
3
4
► Fit the thrust plate (1) and guard washer (2) on
the shaft (3).
NOTICE
The thrust plate (1) on the gearbox is necessary
for mounting all cutting attachments.
NOTICE
The guard washer (2) is required for mounting
–
mowing heads
–
grass cutting blades
–
brush knives
–
shredder blades
to the gearbox. The guard washer is not required
for mounting circular saw blades.
8.4 Checking the Thrust Plate
1
2
1
681BA196 KN
2
The thrust plate consists of the thrust plate
body (1) to which a captive guard washer (2) is
fitted.
WARNING
Never use a thrust plate without the guard
washer. Always replace a thrust plate if the
guard washer is missing.
8.5 Cleaning Gearbox Mounting
Hardware for Cutting Attach‐
ment
002BA407 KN
1
2
3
4
8 Mounting the Cutting Attachment English
0458-743-0121-E 19

Stihl FS 260 Specifications

General

Type	Brush cutter
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	2.7 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	9000 RPM
Number of strokes	2
Sound power level	114 dB
Fuel tank capacity	0.75 L
Vibration emission	3.8 m/s²
Engine displacement	41.6 cm³
Sound pressure level	102 dB
Cutting diameter (max)	480 mm
Power source	Gasoline

Weight and Dimensions

Length	1680 mm
Weight	7500 g
