N Screw the mowing head
counterclockwise on to the shaft (1)
as far as stop.
N Block the shaft.
N Tighten down the mowing head
firmly.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
N Block the shaft.
N Unscrew the mowing head
clockwise.
Fitting Mowing Head without Screw
Mounting
Keep the instruction leaflet for the
mowing head in a safe place.

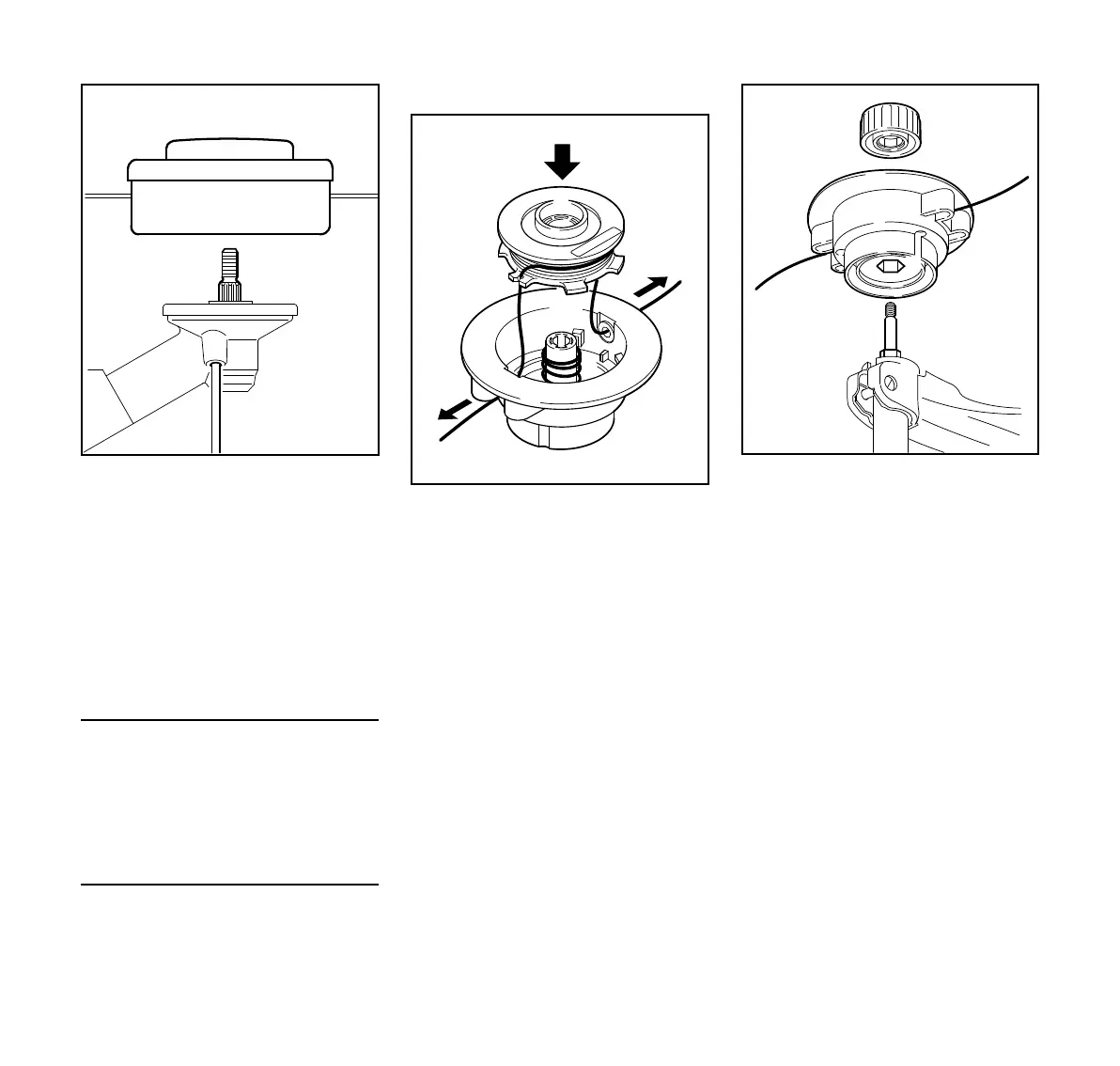

STIHL AutoCut 5-2
N Fit the spring (1) in the mowing
head (2).
N Wind the mowing line (3) on to the
spool (4).
N Thread the nylon line through the
sleeves and fit the spool in the head.
The individual steps are described in the
instruction sheet supplied.
N Slip the mowing head (2) over the
shaft (5) and engage hex recess (7)
on the external hexagon (6).
N Fit the cap (8) on the mowing head
– screw it clockwise on to the shaft
as far as stop and tighten it down
firmly.
1
002BA385 KN
1
232BA054 KN
2
3
4
3
7
5
2
232BA053 KN
6
8
