FS 40, FS 40 C, FS 50, FS 50 C
English
35
1 Loop Handle
2 Carrying Ring
3 Stop Switch
4 Throttle Trigger Lockout
5 Throttle Trigger
6 Carburetor Adjusting Screws
7 Choke Lever
8 Air Filter Cover
9 Spark Plug Boot
10 Machine Support
11 Manual Fuel Pump
12 Fuel Filler Cap
13 Fuel Tank
14 Starter Grip
15 Muffler with Spark Arresting Screen
16 Mowing Head
17 Line Lmiting Blade
18 Deflector
19 Drive Tube
# Serial Number

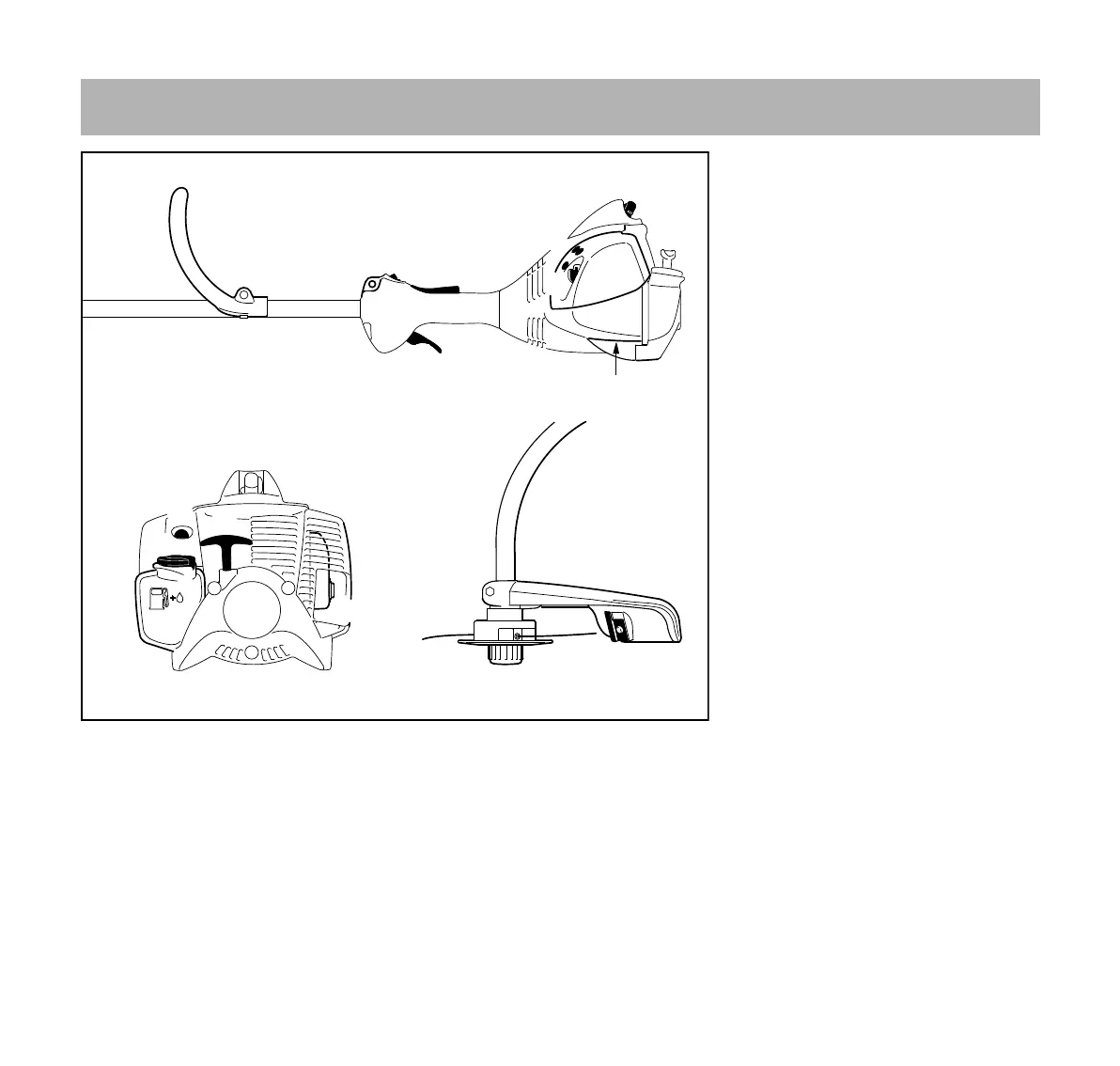

Main Parts
14
19
18
17
16
15
13
12
11
8
7
6
1
2
3
4
5
10
#
546BA015 KN
9
