18.1 REACH
REACH is an EC Directive for the
registration, evaluation, authorisation and
restriction of chemicals.
Information on compliance with the
REACH Directive (EC) No. 1907/2006 is
available from www.stihl.com/reach.
Fault:
Engine not starting
Possible cause:
– On/Off switch set to Off position
– No fuel in tank; blocked fuel line
– Inferior, dirty or old fuel in tank
– Spark plug socket detached from spark
plug; ignition lead not properly fastened
to socket
– Dirty or damaged spark plug; incorrect
electrode gap
– Dirty oil bath air filter
– Engine flooded due to several starting
attempts
Remedy:
– Set On/Off switch to On position (Ö 8.1)
– Fill fuel tank (Ö 7.15);
Clean fuel lines (#)
– Use fresh, good quality fuel (unleaded
petrol) (Ö 7.15);
Clean carburettor (#)
– Connect spark plug socket ();
Check connection between ignition lead
and socket (#)
– Clean/replace spark plug (), (#);
Adjust electrode gap (#)
– Clean/replace oil bath air filter (), (#)
– Remove spark plug and dry, set On/Off
switch to Off position and pull recoil
starter rope repeatedly with the spark
plug removed ()
18. Technical specifications
MH 610.0
Serial number 6250
Engine, design 4-stroke com-
bustion engine
Starter Rope start
Engine type STIHL EHC
600.0
Displacement 212 ccm
Nominal output at
nominal speed
4,4 - 3600
kW - rpm
Fuel tank 3,6 l
Tool 4 hoe elements,
2 plant protec-
tion discs

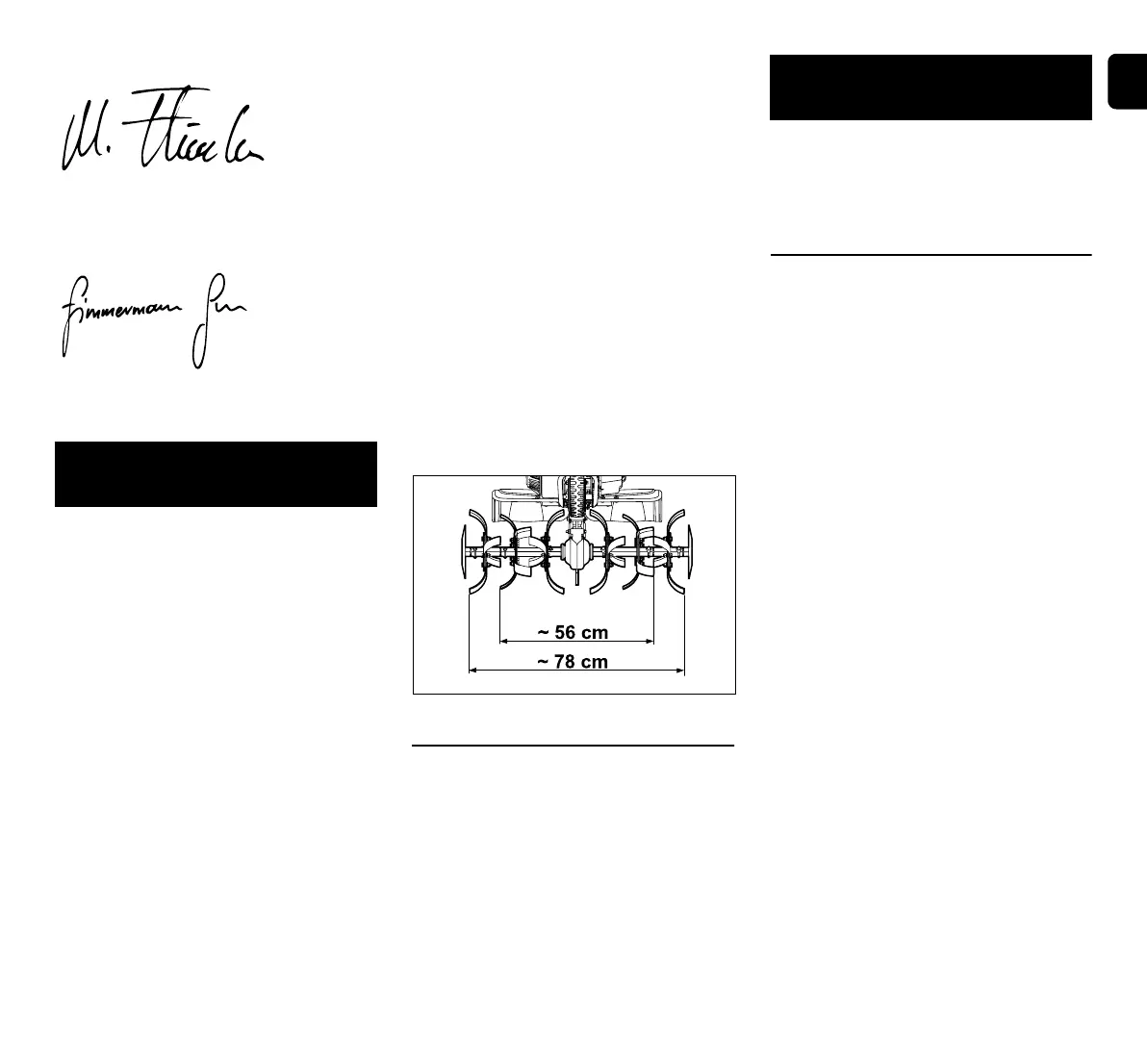

Hoe set diameter 31 cm
In accordance with Directive 2006/42/EC:
Measured sound
power level L
WA
98,3 dB(A)
Uncertainty K
WA
3dB(A)
L
WA
+K
WA
101 dB(A)
Sound pressure level
at workplace L
pA
86 dB(A)
Uncertainty K
pA
3dB(A)
Specified vibration characteristic in
accordance with EN 12096:
Measured value a
hw
6,90 m/s
2
Uncertainty K
hw
2,76 m/s
2
Measurement in accordance with
EN 20643
Drive 2 forward gears
1 reverse gear
Length 163 cm
Width 85 cm
Height 105 cm
Weight 60 kg
19. Troubleshooting
# If necessary, contact a specialist
dealer; STIHL recommends STIHL
specialist dealers.
@ See engine instruction manual.
