English 6 Assembling the pressure washer

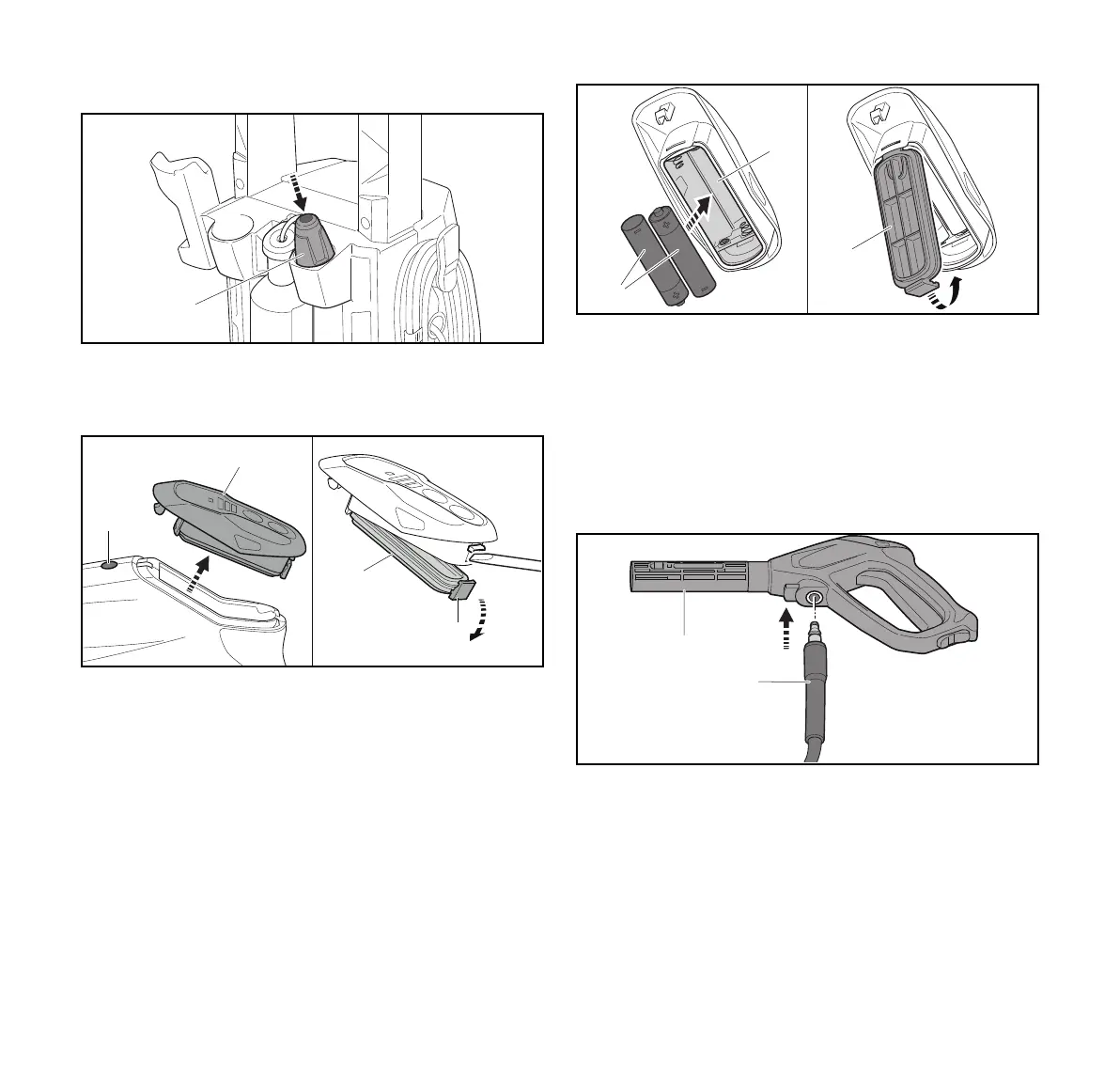

Inserting nozzles
► Insert 3-in1 nozzle (1).
6.2 Installing the Batteries
► Press the locking button (1).
► Remove control panel (2).
► Open the retaining latch (3).
► Remove the cover (4).
► Insert the batteries (5) into the control panel (2) according
to the polarity- (+/-).
► Close cover (4).
► Insert the control panel into the spray gun.
The control panel engages with an audible click.
6.3 Attaching and removing the spray gun
6.3.1 Attaching the spray gun
► Slide the connector (2) into the spray gun (1).
The connector (2) engages with an audible click.
► If the connector (2) cannot be easily pushed into the spray
gun (1): Grease the gasket on the connector (2) with
grease for fittings.
