English 7 Assembling the pressure washer

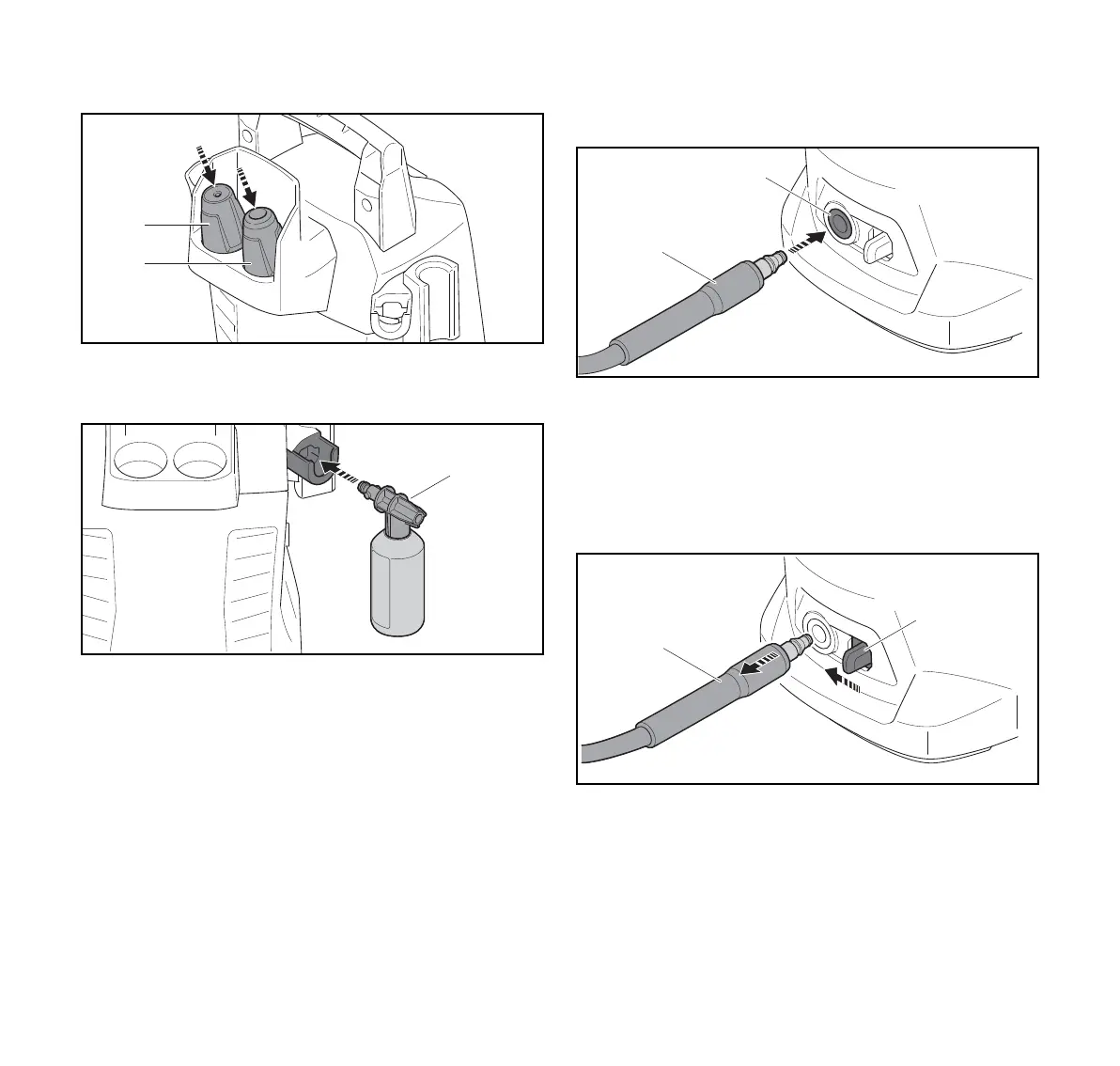

Inserting nozzles
► Insert fan-jet nozzle (1) and rotary nozzle (2).
Attaching spraying set
► Insert spraying set (1).
7.2 Fitting and removing the high-pressure hose
7.2.1 Connecting high-pressure hose
► Push the connector (1) in the high-pressure washer (2).
The connector (1) engages with an audible click.
► If it is difficult to slide the connector (1) into the high-
pressure washer: Grease the connector (1) with grease
for fittings.
7.2.2 Removing high-pressure hose
► Press and hold the locking lever (2).
► Pull out the connector (2).
