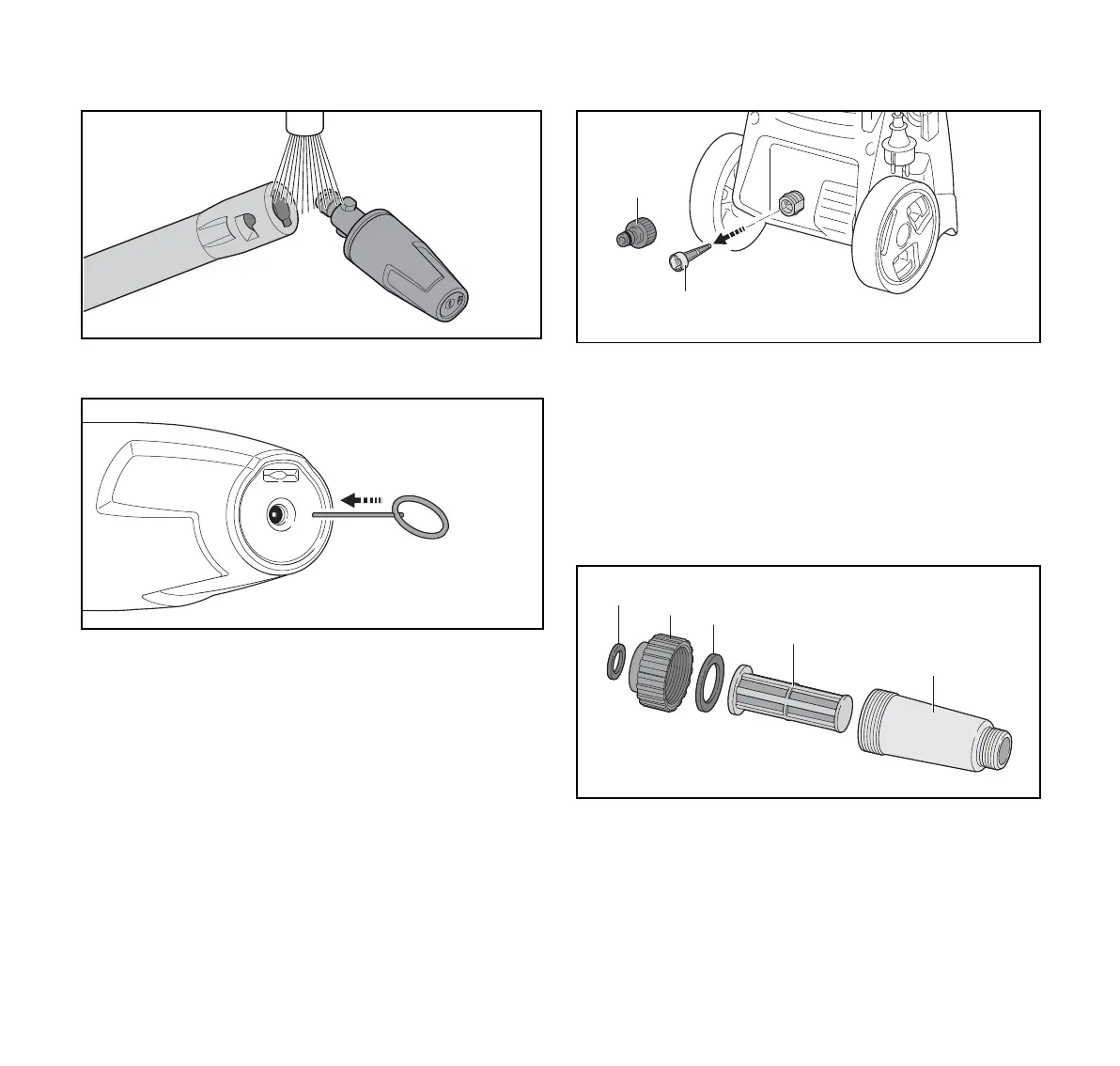

15.2 Cleaning nozzle and spray lance
► Rinse the nozzle and spray lance under running water and
dry with a cloth.
► If the nozzle is clogged: Clean the nozzle with the cleaning
pin.
15.3 Cleaning the water intake screen
► Unscrew the connector (1) of the water connection.
► Pull water intake screen (2) out of the water connection.
► Rinse out the water intake screen (2) under running water.
► Insert water intake screen (2) into water connection.
► Attach the connector (1) and tighten it by hand.
15.4 Cleaning the water filter
The water filter must be disassembled to clean it.
► Remove gasket (1) from the fastener (2).
► Unscrew fastener (2) from filter housing (5).
► Remove gasket (3) from the fastener (2).
► Remove filter (4) from the filter housing (5).
► Rinse gaskets (1 and 3), fastener (2) and filter (4) under
running water.
