English 8 Assembling the Pressure Washer
8.1 Assembling Parts and Accessories
WARNING
To reduce the risk of severe injury from high-pressure spray,
always switch off the pressure washer, shut off the water
supply, relieve any remaining pressure in the system and
lock the spray gun trigger before attempting to assemble the
pressure washer or spray attachment.

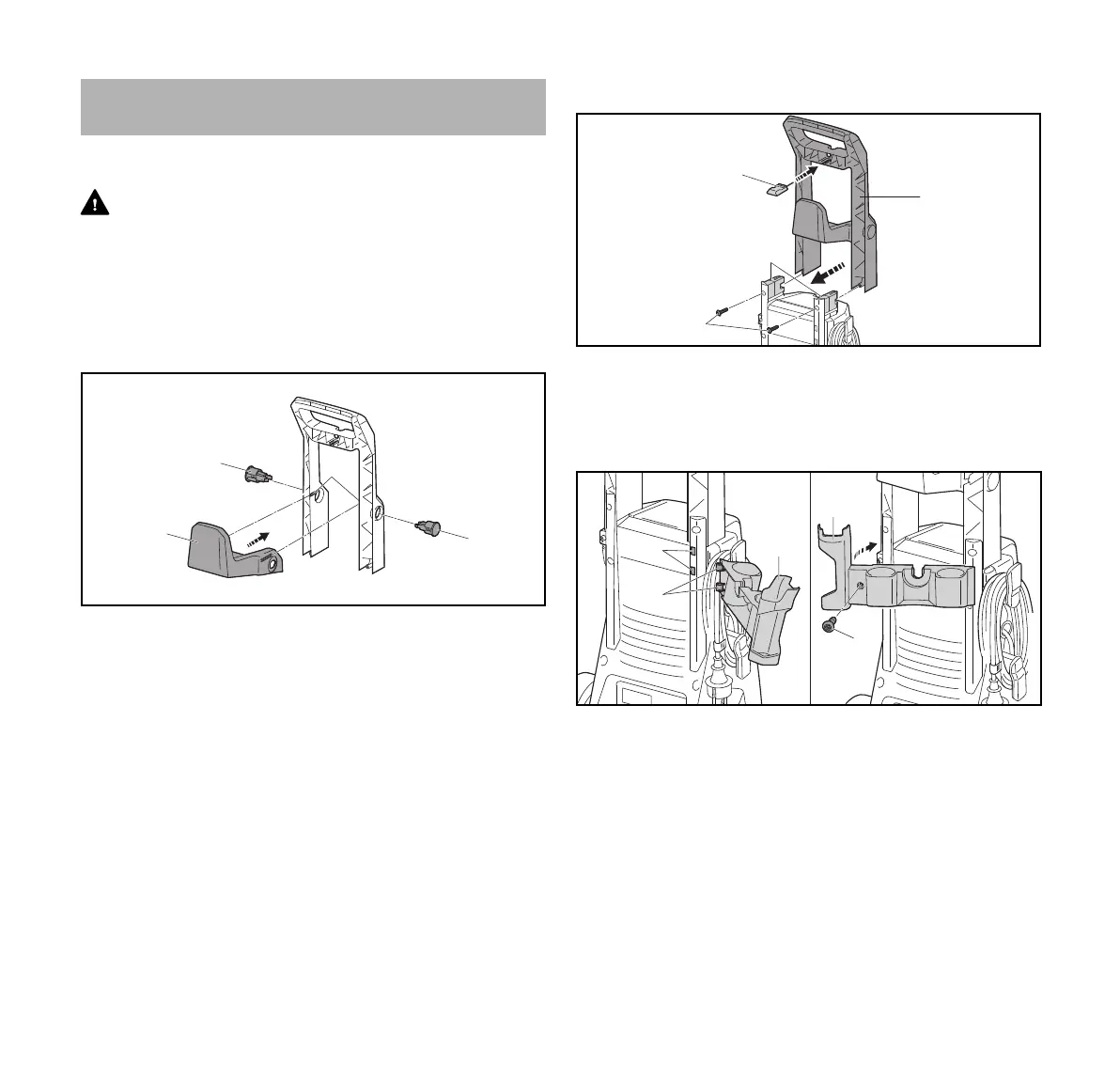

Bracket for High-Pressure Hose
► Place the bracket (1) in the guides (2) until it audibly
engages.
► Attach the bracket with the two plugs (3).
Handle and Cleaning Needle
► Slide the handle (1) onto the frame (2) and tighten the
screws (3).
► Insert the cleaning needle (4) into the handle.
Holder for Spray Gun
► Place the hooks (1) of the holder (2) in the guides (3).
► Swing the holder to the left.
► Tighten the screw (4).
8 Assembling the Pressure Washer
0000-GXX-6393-A0
2
1
3
3
2
3
0000-GXX-6394-A0
1
4
0000-GXX-5545-A0
2
1
3
4
2

Stihl RE 90 Specifications

General

Form factor	Upright
Hose length	6 m
Power source	Electric
Castor wheels	Yes
Product color	Black, Grey, Orange
Detergent tank	-
Pressure range	High-pressure
Protection class	II
International Protection (IP) code	IPX5
Maximum pressure	100 bar
Maximum flow rate	450 l/h
Minimum flow rate	336 l/h
Working pressure (max)	72 bar
Maximum water temperature	40 °C
Fuse	15 A
AC input voltage	127 V
AC input frequency	60 Hz
Power consumption (typical)	1600 W

Weight and Dimensions

Depth	290 mm
Width	330 mm
Height	860 mm
Weight	8800 g
