0458-814-8221-A
18
English

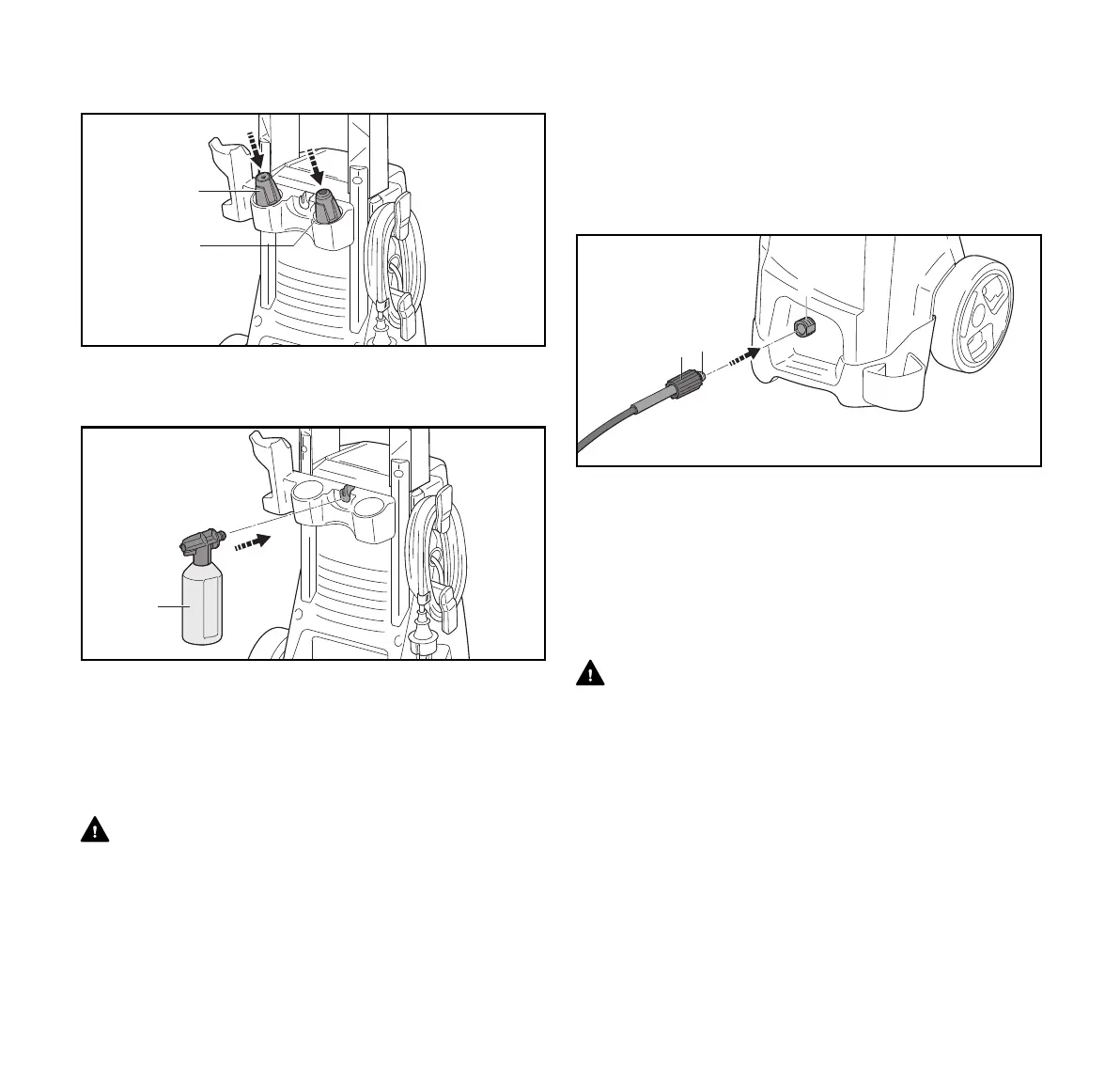

8 Assembling the Pressure Washer
Nozzles
Insert the fan-jet nozzle (1) and rotary-jet nozzle (2).
Detergent Spray Set
Mount the detergent spray set (1).
8.2 Connecting and Removing the High-Pressure
Hose
8.2.1 Connecting the High-Pressure Hose
WARNING
Before starting assembly, switch off the pressure washer,
disconnect the unit from the power supply and ensure all
pressure is released from the system to reduce the risk of
injury from unintended spraying.
To connect the high-pressure hose:
Switch off the pressure washer, @ 10.2.
Disconnect the pressure washer from the power supply.
Shut off the water supply.
Remove all sand and debris from the connections and
couplings.
Insert the coupling (1) of the high-pressure hose into the
high pressure connector (2).
Attach the union nut (3) and tighten by hand.
If the coupling is difficult to attach to the high-pressure
connector, grease the coupling or union nut with a food-
safe fitting grease.
8.2.2 Removing the High-Pressure Hose
WARNING
To reduce the risk of severe injury from high-pressure spray,
always switch off the pressure washer, shut off the water
supply, relieve any remaining pressure in the system and
lock the spray gun trigger before attempting to remove the
high-pressure hose from the pump or spray gun.
To remove the high-pressure hose:
Switch off the pressure washer, @ 10.2.
Disconnect the pressure washer from the power supply.
Shut off the water supply.
Pull the spray gun trigger to relieve pressure.
Lock the spray gun trigger.
0000-GXX-6395-A0
2
1
0000-GXX-6396-A0
1
0000-GXX-6398-A0
1
3
2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Stihl RE 90 and is the answer not in the manual?

Stihl RE 90 Specifications

General IconGeneral
Form factorUpright
Hose length6 m
Power sourceElectric
Castor wheelsYes
Product colorBlack, Grey, Orange
Detergent tank-
Pressure rangeHigh-pressure
Protection classII
International Protection (IP) codeIPX5
Maximum pressure100 bar
Maximum flow rate450 l/h
Minimum flow rate336 l/h
Working pressure (max)72 bar
Maximum water temperature40 °C
Fuse15 A
AC input voltage127 V
AC input frequency60 Hz
Power consumption (typical)1600 W
Weight and Dimensions IconWeight and Dimensions
Depth290 mm
Width330 mm
Height860 mm
Weight8800 g
