Stihl RE 90 User Manual

0458-814-8221-A
21
English 9 Connecting the Water Supply

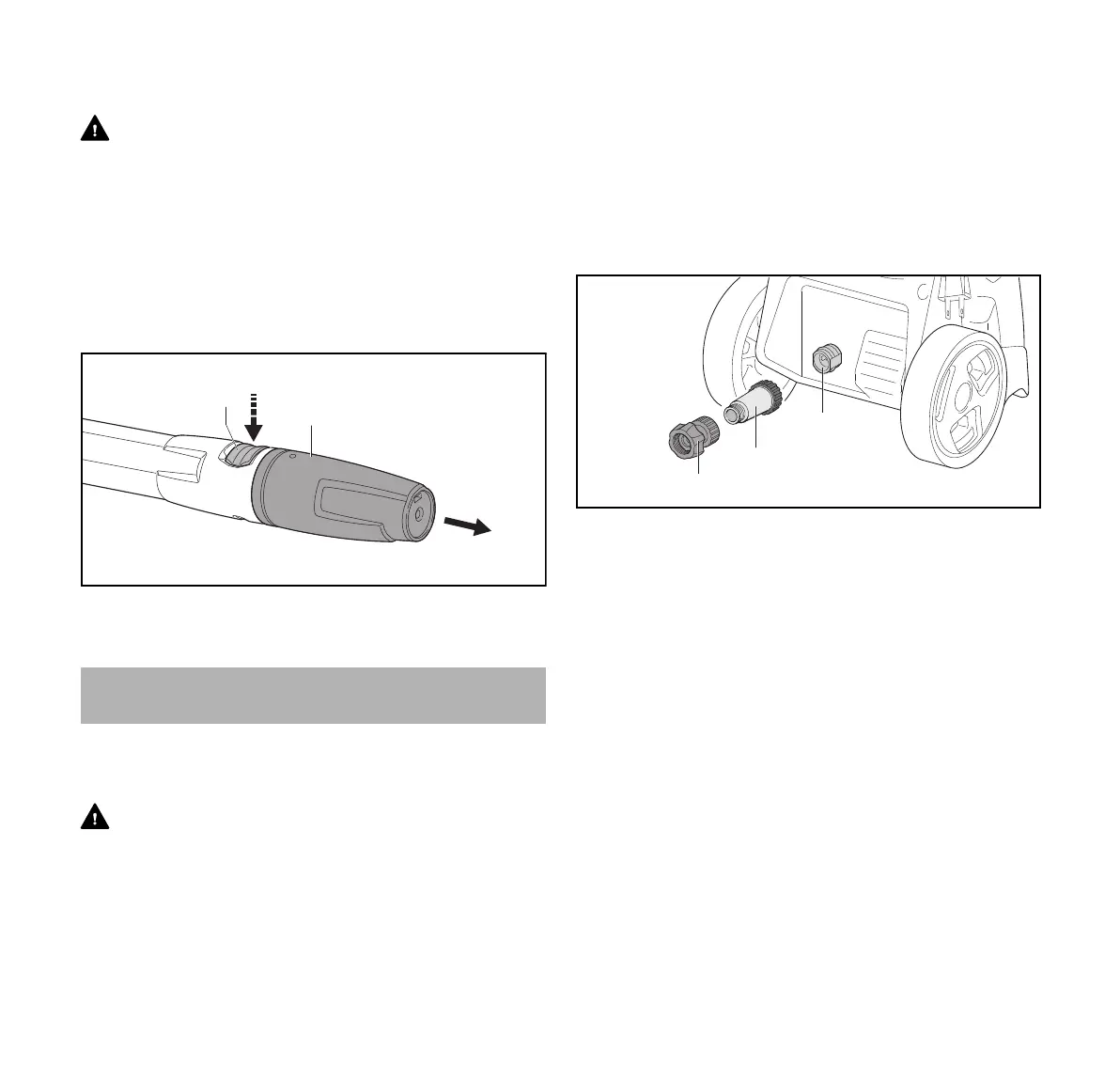

8.4.2 Removing the Spray Nozzle
WARNING
To reduce the risk of severe injury from unintended
spraying, switch off the pressure washer, relieve system
pressure and lock the spray gun trigger before attempting to
adjust or change a spray nozzle or other accessory.
To remove the spray nozzle:
► Switch off the pressure washer, @ 10.2.
► Pull the spray gun trigger to relieve pressure.
► Lock the spray gun trigger.
► Press down and hold the locking lever (1).
► Pull out the nozzle (2).
9.1 Connecting the Pressure Washer to the Mains
Water Supply
WARNING
Make sure the pressure washer is switched off and
disconnected from the power supply before connecting to or
disconnecting from the mains water supply.
Connecting the water filter
If the pressure washer is to be operated with sandy water or
with water from cisterns, a water filter must be connected in-
line between the water hose and the pressure washer. The
water filter filters sand and dirt out of the water and thus
protects the components of the pressure washer from
damage.
To connect the water filter:
► Unscrew the coupling (1).
► Screw the water filter (2) onto the connector (3) and
tighten by hand.
► Screw the coupling (1) onto the water filter (2) and tighten
by hand.
Connecting the Water Hose
The water hose must meet the following dimensions:
– Diameter: 0.5 in. (13 mm)
– Length: between 33 ft. and 82 ft. (10 m and 25 m)
To connect the pressure washer to the mains water supply:
► Switch off the pressure washer, @ 10.2.
► Disconnect the pressure washer from the power supply.
► Remove all sand and debris from the connections and
couplings.
► Connect the water hose to the water supply.
► Fully open the tap to flush any sand or dirt from the hose.
9 Connecting the Water Supply
2
1
0000-GXX-4353-A0
1
2
3
0000-GXX-7029-A0

Stihl RE 90 Specifications

General

Form factor	Upright
Hose length	6 m
Power source	Electric
Castor wheels	Yes
Product color	Black, Grey, Orange
Detergent tank	-
Pressure range	High-pressure
Protection class	II
International Protection (IP) code	IPX5
Maximum pressure	100 bar
Maximum flow rate	450 l/h
Minimum flow rate	336 l/h
Working pressure (max)	72 bar
Maximum water temperature	40 °C
Fuse	15 A
AC input voltage	127 V
AC input frequency	60 Hz
Power consumption (typical)	1600 W

Weight and Dimensions

Depth	290 mm
Width	330 mm
Height	860 mm
Weight	8800 g
