Stihl TS 500i - Cut-Off Machine Cart; Storing the Machine

TS 480i, TS 500i
English
45

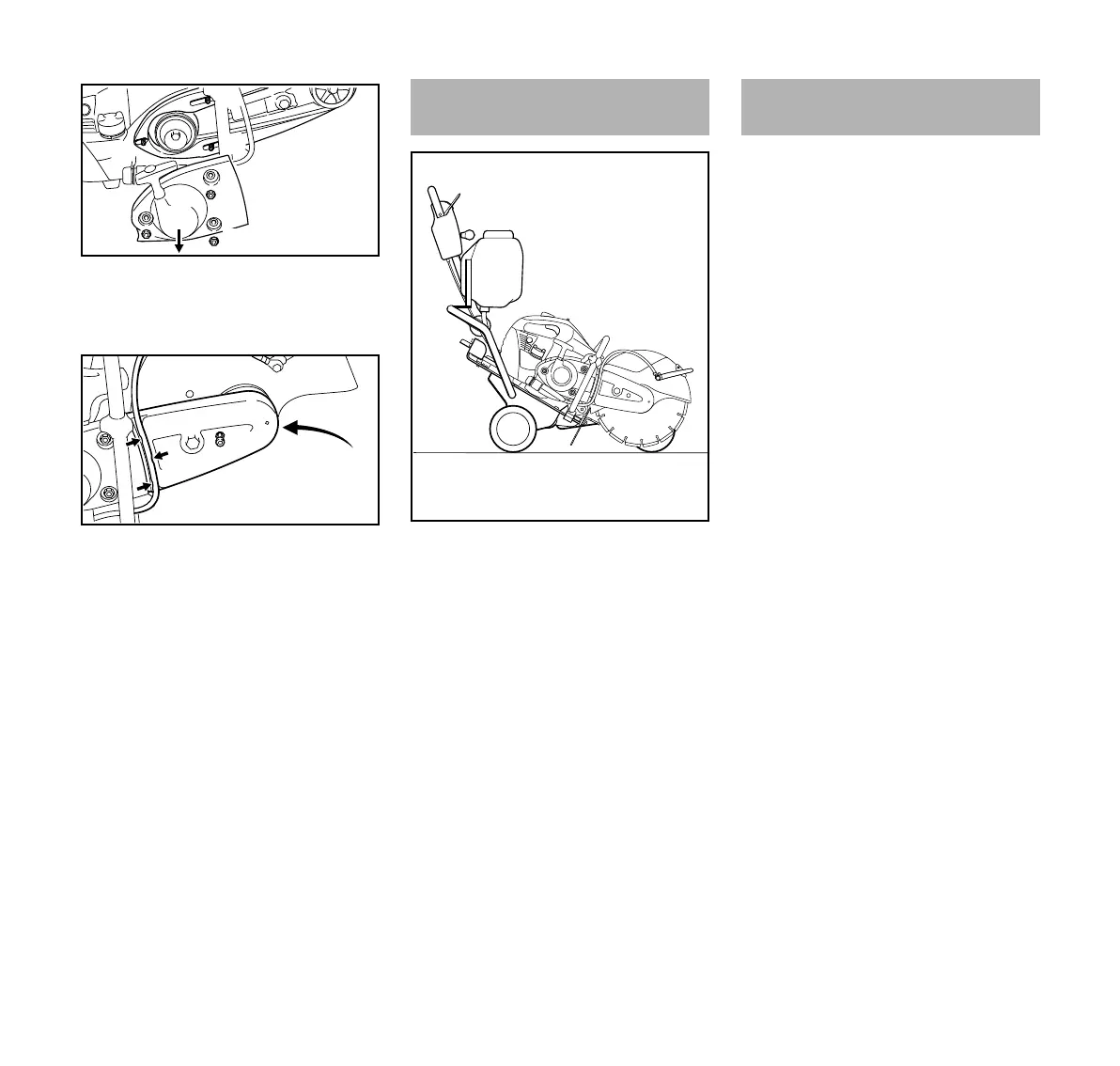

N Fit the starter cover (5) over the
studs (10)
N Tighten up the nuts (1) by hand
N Push the V-belt guard (4) into place
N Screw in the bolt (3) and tighten up
N Insert the water hose into the guide
in the V-belt guard (arrows) from the
water connection towards the guard
– avoid tight radiuses
Continue as described in the chapter
"Tensioning the V-belt."
The cut-off machine can be mounted on
the STIHL cut-off machine cart FW 20
(special accessory) in a few easy steps.
The cut-off machine cart makes it easier
to
– repair damaged roadways
– apply roadway markings
– cut expansion joints
If the machine is to remain out of use for
3 months or more:
N Drain and clean the fuel tank in a
well ventilated place
N Dispose of fuel in accordance with
all applicable laws and regulations
N Remove the abrasive cutting wheel
N Thoroughly clean the machine
N Store the machine in a secure and
dry place. Protect it against
unauthorized use (e. g., by children)
10
10
1307BA025 KN
1
5
10
1
1
1307BA026 KN
4
3
Cut-off Machine Cart
1307BA027 KN
Storing the Machine
