6 Product description
ASTOPAD
®
Instructions for Use
23
Applied parts

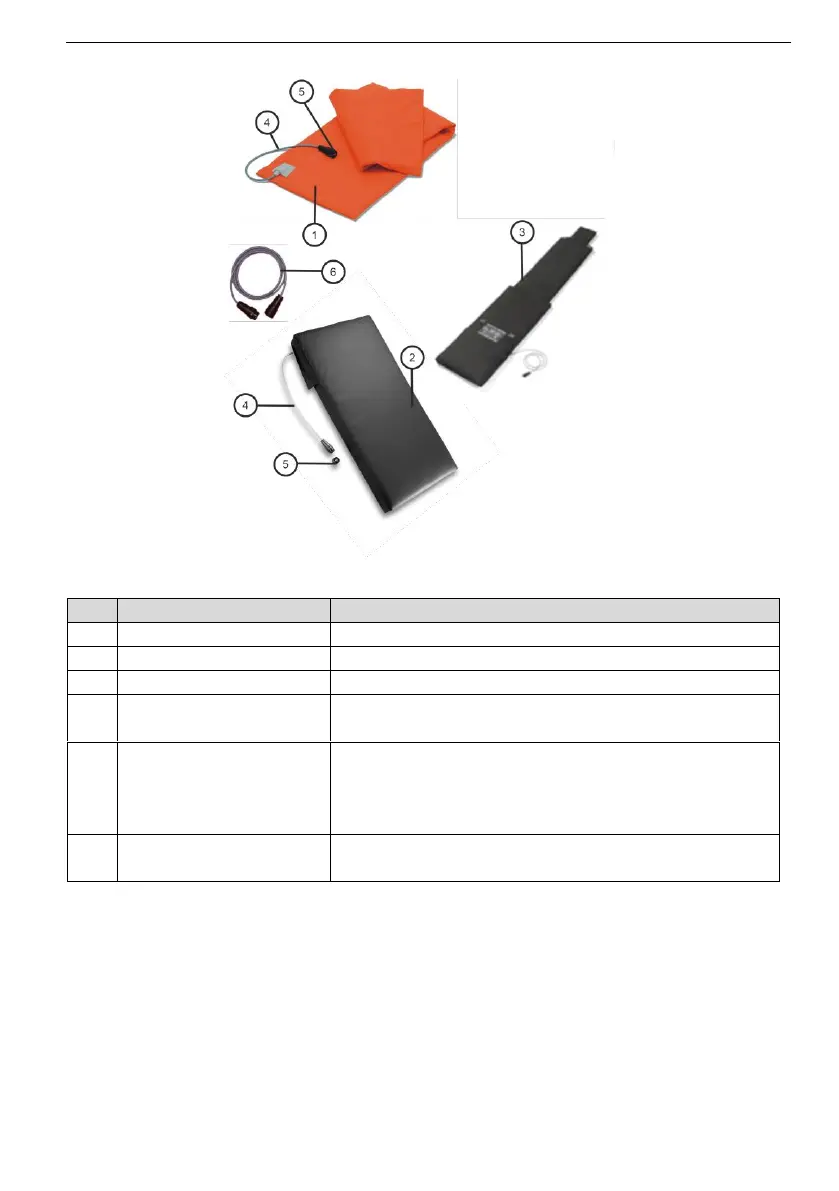

Fig. 2 ASTOPAD COV/SOF/ROE applied parts
No.
Designation
Description
1
ASTOPAD COV
Example of an ASTOPAD applied part COV
2
ASTOPAD SOF
Example of an ASTOPAD applied part SOF
3
ASTOPAD ROE
Example of an ASTOPAD applied part ROE
4
Connection cable
Connection cable for connecting to the exten-
sion connection cable.
5
End cap
The attached end cap is closed when no exten-
sion connection cable is connected. It protects
the contacts and guarantees the IPX2 moisture
protection.
6
Extension connection
cable
The applied parts can be connected to the con-
trol unit with the extension connection cable.
