Stober SR6 - Nameplate

STOBER 5 | Technical data
03/2020 | ID 442793.03
19
Discharge times
Self-discharge of DC link 15min
Tab. 7: Discharge times of the DC link circuit
5.1.2 Nameplate

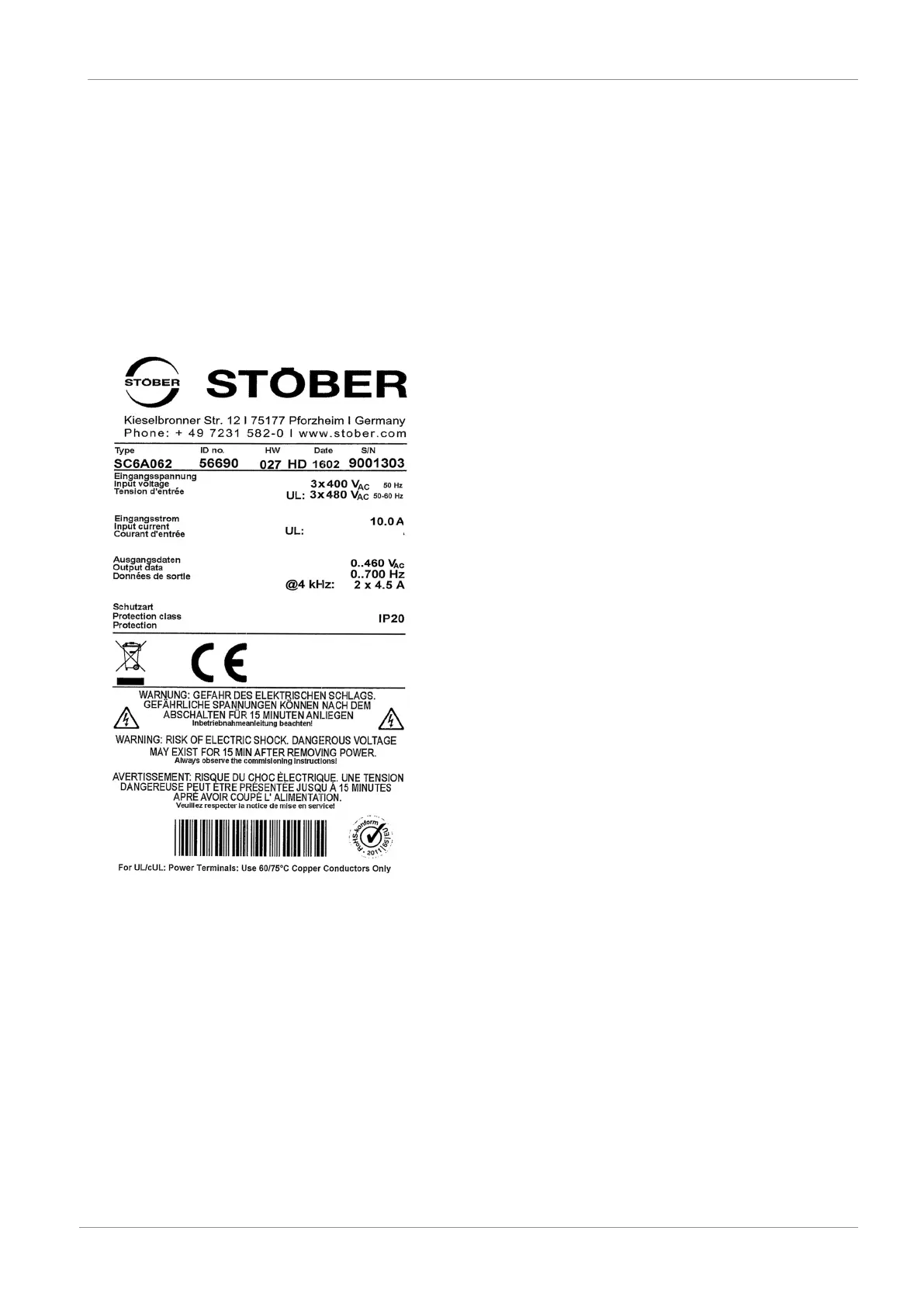

Fig.1: SC6A062 nameplate
Designation Value in example Meaning
Type SC6A062 Production information
ID No. 56690
HW 040 HD
Date 2011
S/N 9000002
Input voltage 3 × 400V
AC
50Hz
UL: 3 × 480V
AC
50 – 60Hz
Input voltage
Input current UL: 10.0A Input current
Output data 0 to 460V
AC
0 to 700Hz
@4kHz: 2 × 4.5A
Output voltage
Output frequency
Output current for 4kHz clock frequency
Protection class IP20 Protection class
Tab. 8: Meaning of the specifications on the SC6 nameplate
