Stonex R60 – User Manual 15

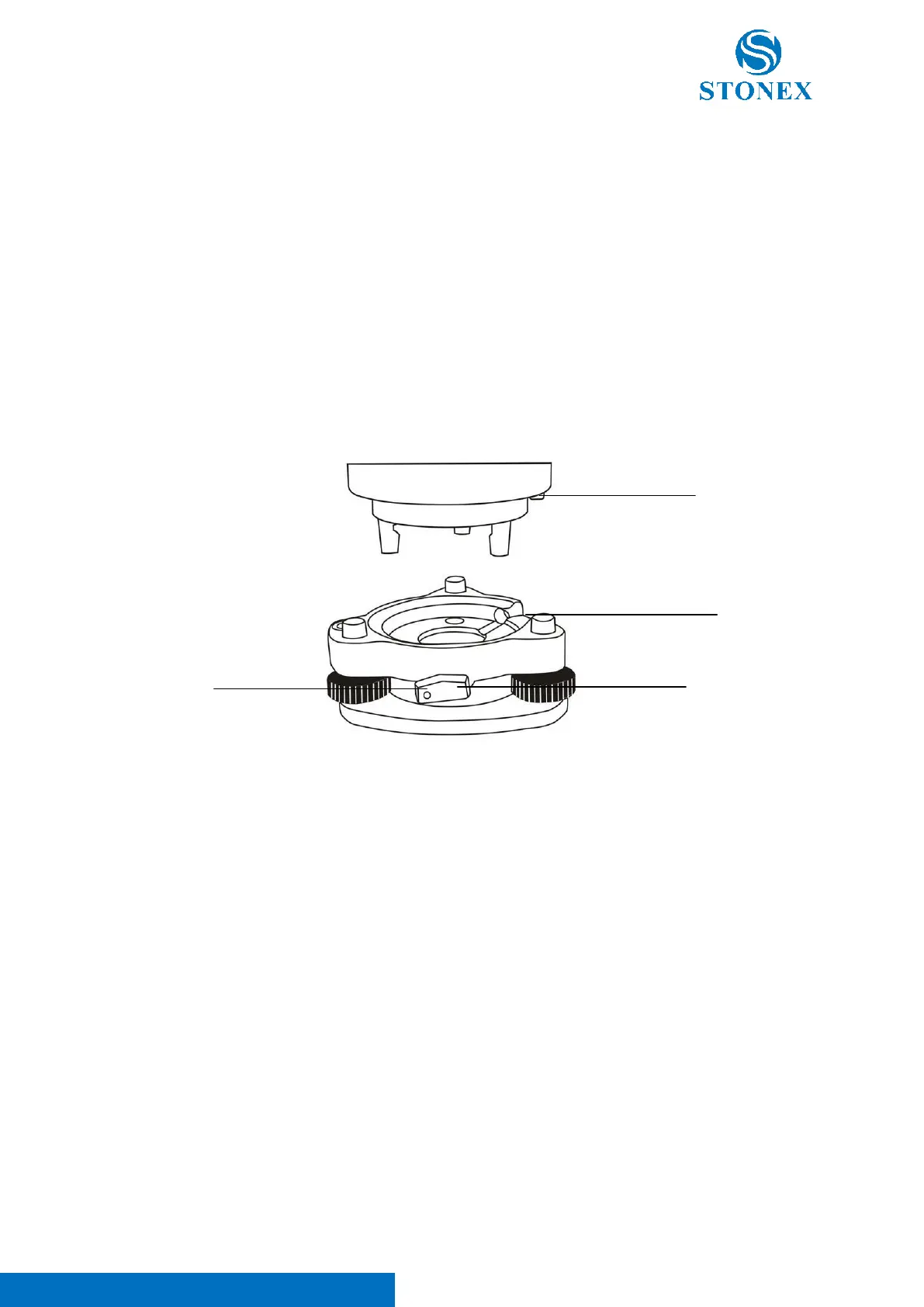

3.6. Tribrach assamble/disassemble
Use the tribrach clamp to assemble or disassemble the instrument from the tribrach.
Disassemble
Rotate the tribrach clamp counterclockwise until the lever is loosen.
One hand holds up the tribrach, another hand holds the carry handle of the instrument and lift out the
instrument from the tribrach.
Assemble
Put the instrument into the tribrach lightly, let the communication port against in the indentation of the
tribrach. Rotate the tribrach clamp clockwise until the lever is tighten.
Note. If the instrument doesn’t need assembly or disassembly from tribrach frequently, it is possible to
fix the tribrach clamp by fixed screw to avoid the disassembly by accident. Screw out the fixed screw by
driver to fix the clamp.
3.7. GNSS Handle
R60 is equipped, as visible in 2.1 Hardware Description, with a GNSS handle. This accessory allows to
mount a GNSS receiver above the station using a proper connector. This configuration has a lot of
advantages in mixed survey, that requires the simultaneous use of a GNSS receiver and a Total Station.
Refer to R60 video tutorial for a detailed overview about this configuration.
