Stonex R60 – User Manual 45
hPa
hPa

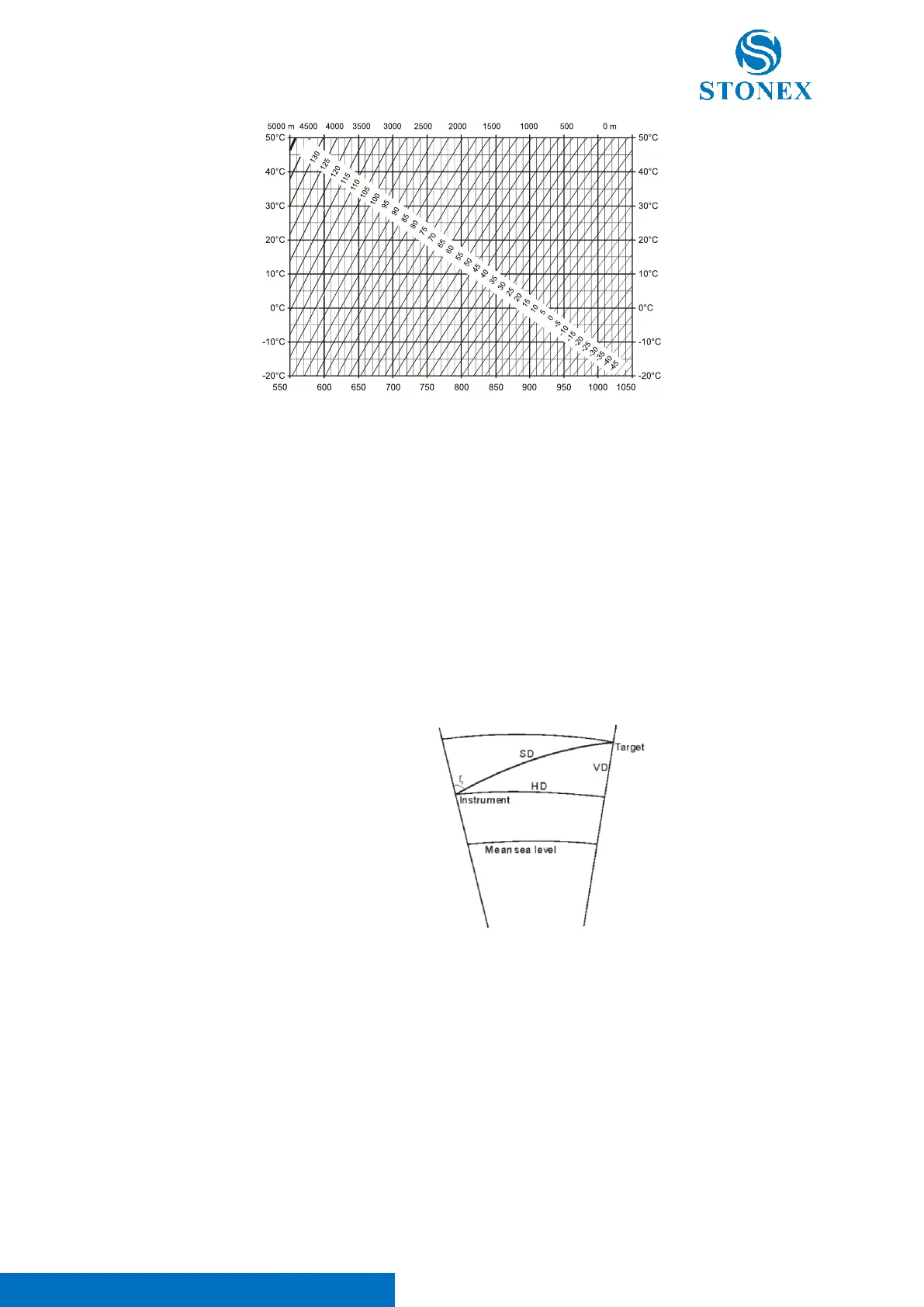

For Example:
The air temperature is +15 ℃
The atmospheric pressure is 1013 hPa
From the chart, the atmospheric correction is about -5 ppm
11.2. Refraction and Earth Curvature Correction
Considering the correction of refraction and earth curvature for distance measurement, the formula for
SD, HD and VD applied in the instrument are as followings:
HD = Y - A × X × Y
VD = X + B × Y
2
HD: corrected horizontal distance
VD: corrected vertical distance
Y = SD × │sin ξ │
X = SD × cos ξ
SD: corrected slope distance
ξ： the ZA （zenith 0）
A = (1 – k / 2) / R
B = (1 – k / 2) / 2R
k: atmospheric refractive index, default 0.13
R: average radius of the earth 6.37 × 10
6
m
