BASIC OPERATION

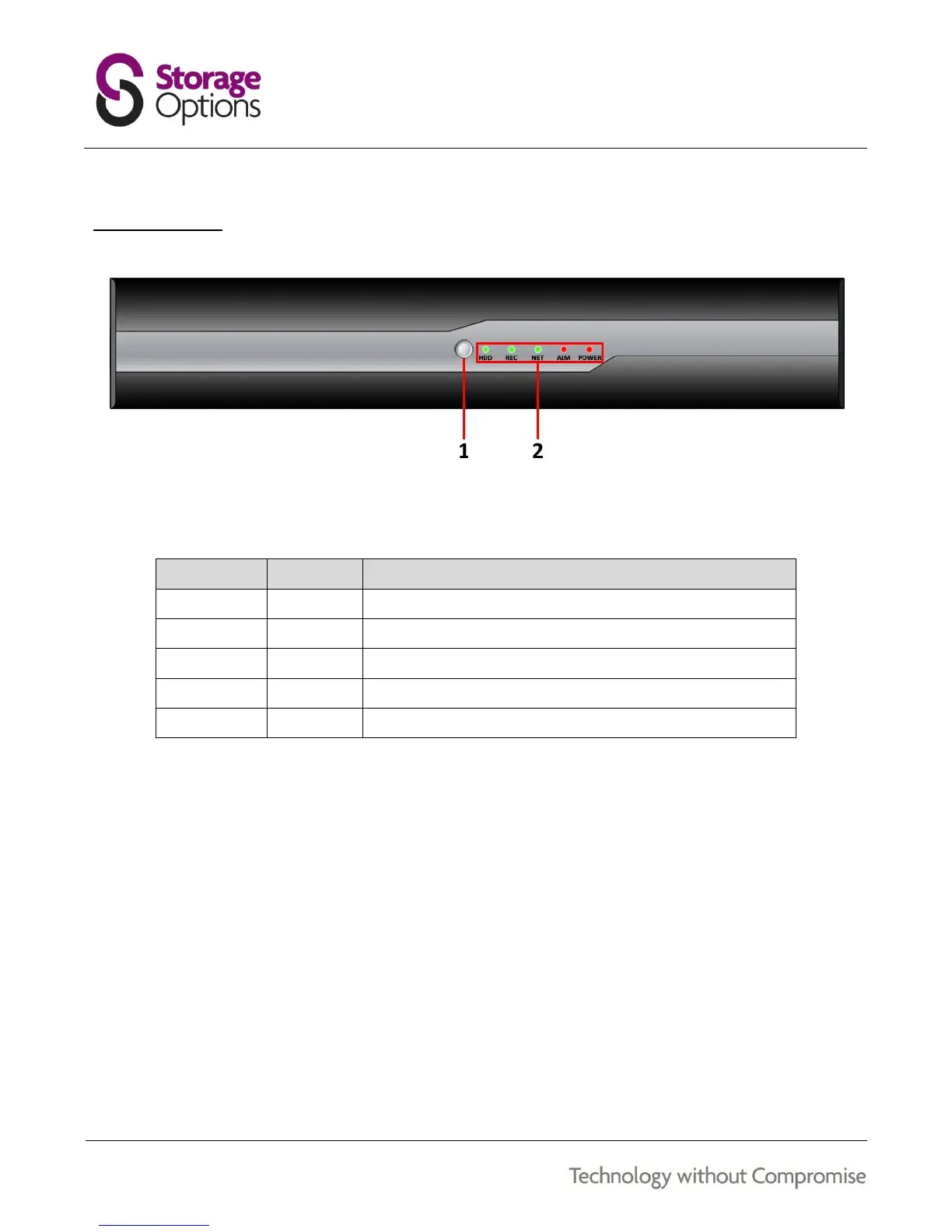

6.1 – FRONT PANEL
1. IR SENSOR: Receives infra-red signals from the remote control. Do not cover.
2. LED INDICATORS: Shows system status.
LABEL
COLOUR
DESCRIPTION
HDD
GREEN
Flashes to indicate HDD activity.
REC
GREEN
Indicates whether the DVR is currently recording.
NET
GREEN
Flashes to indicate network traffic.
ALM
RED
Indicates whether an alarm trigger has occurred.
POWER
RED
Indicates whether the DVR is currently powered on.
