Page 8

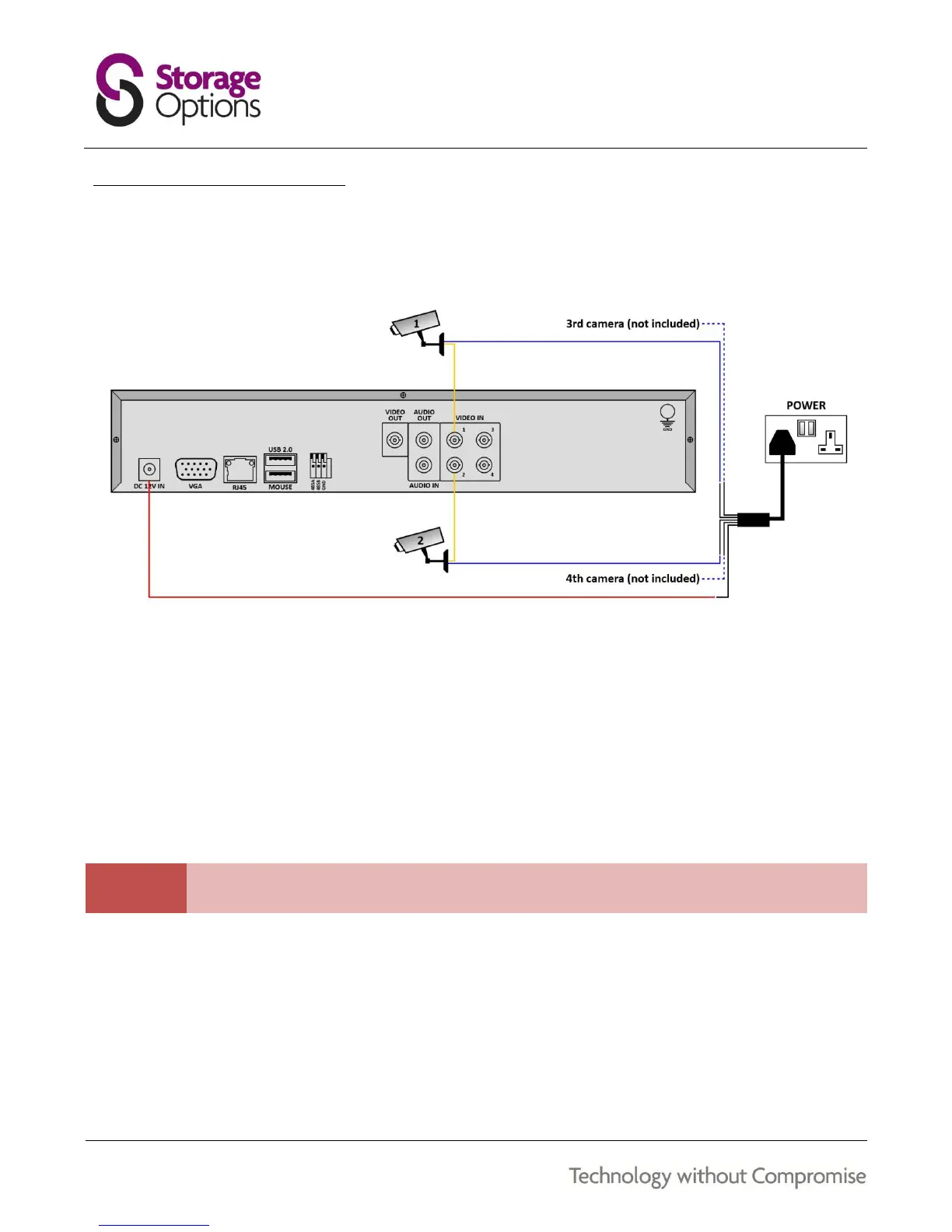

1.3 – POWER CONNECTION DIAGRAM
This system is supplied a 1-5 power splitter cable, which allows you to connect the DVR and up to four cameras to a
single mains socket.
Connect power to the DVR and cameras as shown in this diagram:
BLUE = Camera mains connection
RED = DVR mains connection
YELLOW = Video connection
The 1-5 power splitter cable has one red and four black plugs.
Connect the red cable to the DVR.
Connect the black cables to the two included cameras.
Each Storage Options CCTV camera (sold separately) also comes with its own mains adapter. You can either plug
them into separate mains sockets, or into the two spare cables on the power splitter.
The 1-5 power splitter is designed for use ONLY with Storage Options cameras! DO NOT attempt to
connect other brands as this may present a risk of fire!
