System Description
3.3.2 Before transport: Attaching the transport base plate
• To reattach the base plate, place the hook-and-loop tape underneath the base
plate.
• Lift the device onto the base plate so that the ribs on the transport base plate fit
into the slits on the bottom of the device (F
IG. 3-3 ).
• Fasten the hook-and-loop tape around the transport handle.
NOTICE
► Always
attach the transport base plate when repackaging the device for trans-
port.
3.4 Installation Instructions

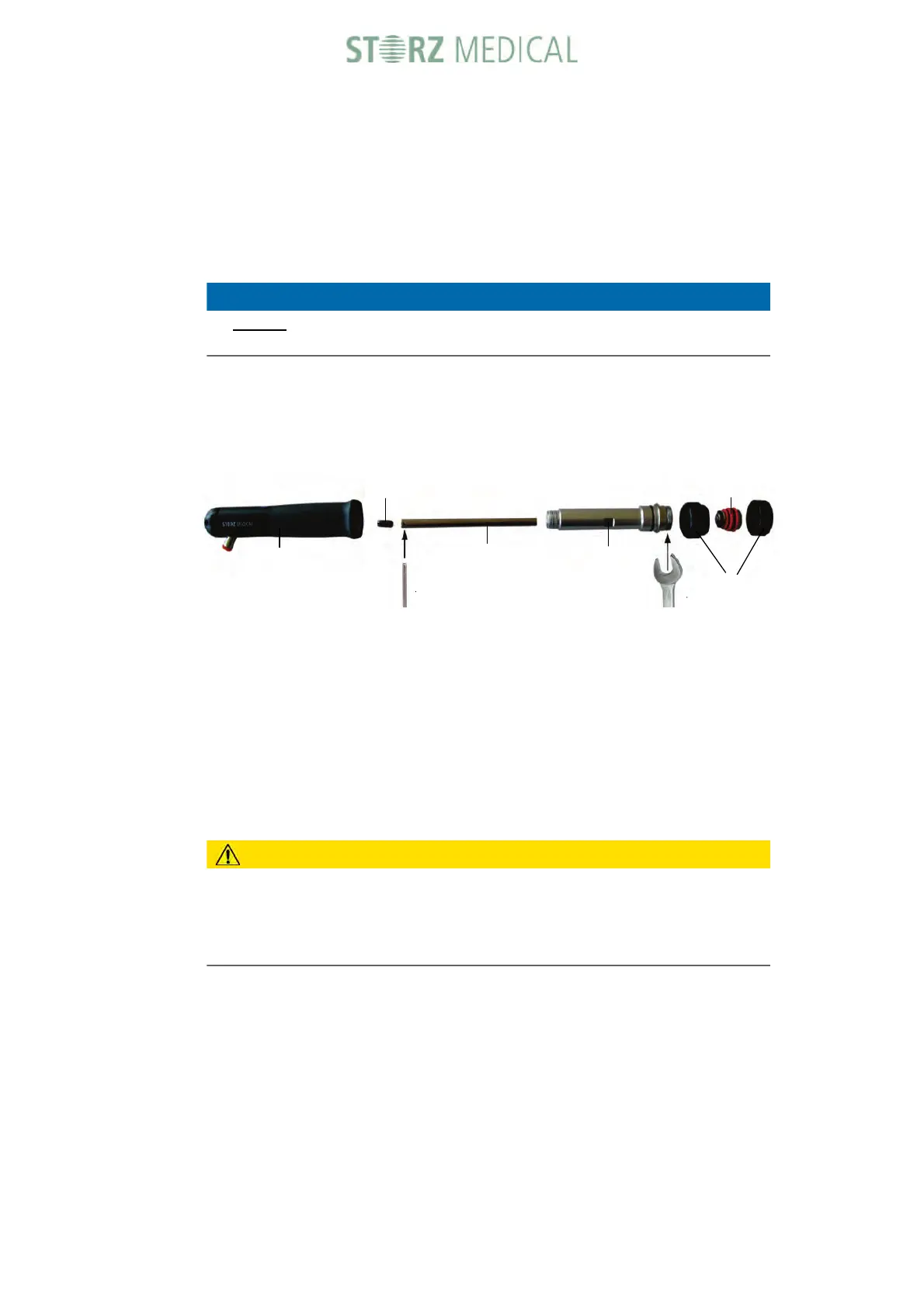

3.4.1 Handpiece components
1 Handpiece handle
2 Projectile
3 Allen key (see Cleaning / Overhaul)
4 Guide tube
5Shaft
6 Open-end spanner
7 Pulse transmitter insert
8 Pulse transmitter screw caps
3.4.2 Assembling the handpiece
CAUTION
If the shaft of the handpiece is damaged or uneven, then when removing or screwing
in the shaft without a suitable tool,
minor scratching injuries may occur.
► Be sure to use the open-end spanner provided to remove or screw in the shaft.
1
2
4
5
7
8
3
6
