Cleaning, Maintenance, Overhaul
• Insert the new projectile into the fitted guide tube.
• Screw the shaft into the handpiece until finger-tight.
• Tighten the shaft using the open-end spanner. It must no longer be possible to un-
screw the shaft by hand.
• Screw the pulse transmitter screw cap with the required pulse transmitter firmly
back onto the shaft.
• Make sure that the two cap parts of the pulse transmitter are screwed firmly in
place and that the pulse transmitter screw cap is screwed firmly to the shaft.
5.1.5 Mains fuse replacement
The mains fuse holder is located on the rear of the MASTERPULS
®
ONE between the
mains connection and the ON/OFF switch.
• At the indentations, push the two slides of the mains fuse holder inward and pull
the holder from the housing.

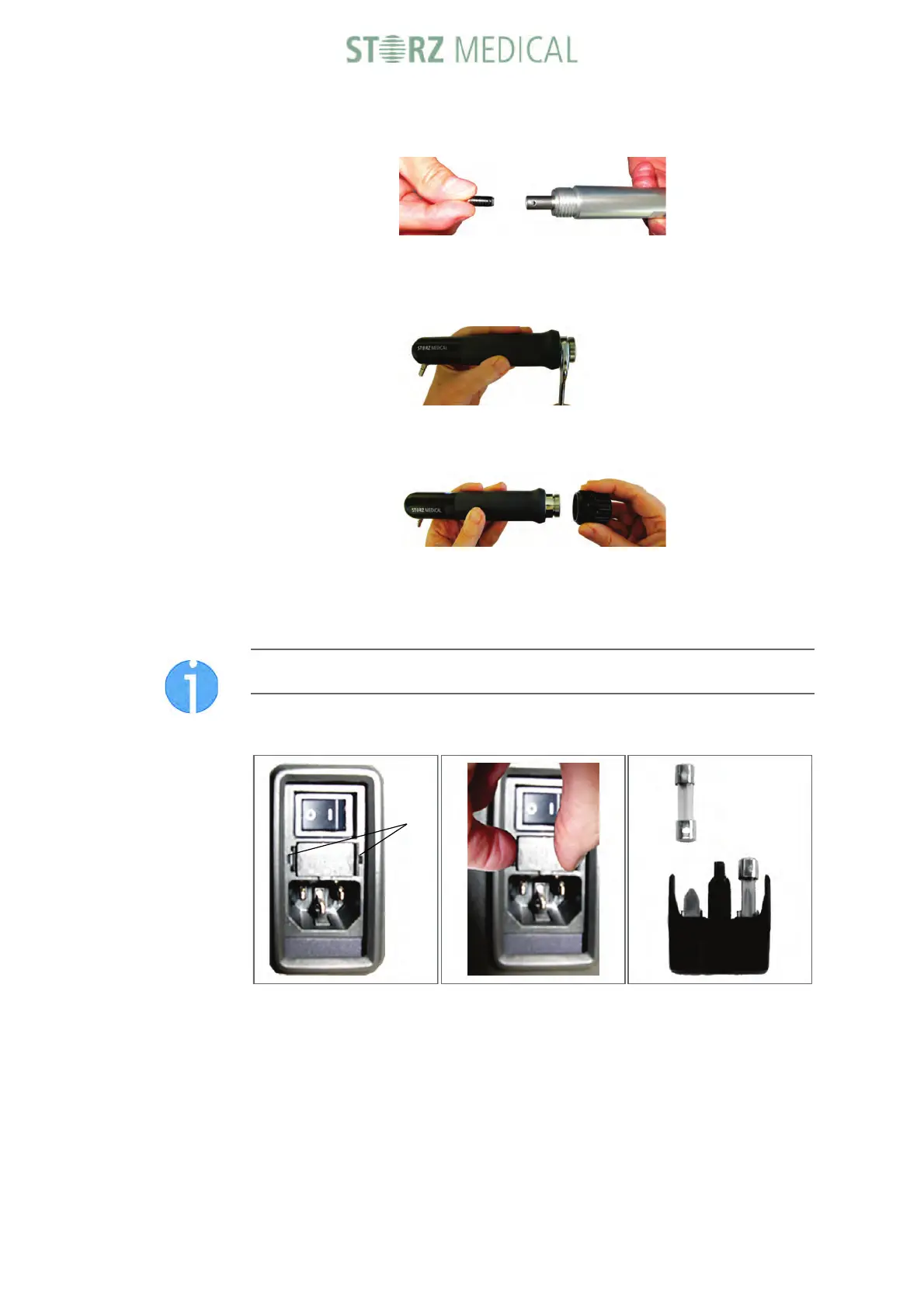

Fig. 5-1 Mains connection, ON/OFF switch, mains fuse holder
1 Indentations for pulling out the mains fuse holder
• Pull the old fuses out of the mains fuse holder.
• Replace the fuses (T8 AH / 250 VAC).
• Push the mains fuse holder back into the opening until it engages.
