19 800 0002 12.2020
17

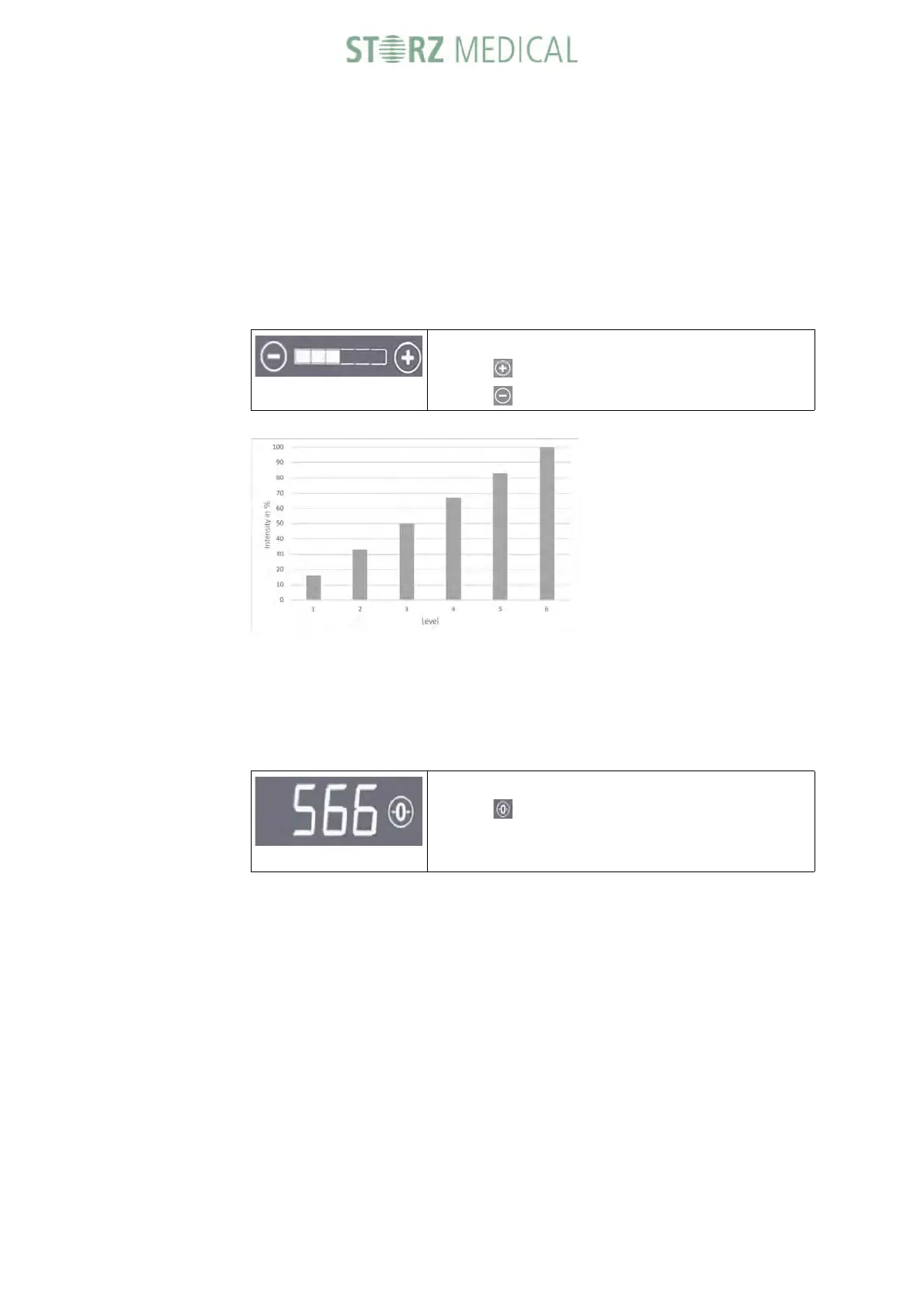

Operation
4 Operation
4.1 Switching on and off
• Switch the control device on or off at the mains switch on the rear (see FIG. 3-2 ).
The device is operated via the touchscreen display.
4.2 Setting the intensity
The frequency changes automatically based on the intensity.
4.3 Resetting the counter reading
When the counter reading reaches 9999, the display starts from zero again when the
next pulse is triggered.
The display indicates the intensity (levels 1 – 6).
• Press to increase the intensity.
• Press to reduce the intensity.
Fig. 4-1 Graphical representation of the intensity levels
Relationship between inten-
sity and frequency
Intensity Frequency
1 18 Hz
2 16 Hz
3 10 Hz
49 Hz
58 Hz
66 Hz
The display counts the pulses emitted.
• Press to reset the display to zero.
