System Description
3.4.3 Connecting the electrical power supply
• Connect the mains cable to the mains connector on the left rear of the device (see
F
IG. 3-2 /1).
• Insert the mains cable into the electrical socket.
NOTICE
► Maintain a minimum distance between the device and the wall so that the mains
plug can be pulled out without restrictions (disconnected from the power supply
network) and the ventilation slits on the rear are not blocked.
► The device must only be connected to properly earthed and correctly installed
shockproof sockets!
3.4.4 Connecting Handpiece
• Plug the hose into the corresponding connector on the handpiece or the connec-
tor on the front of the device:

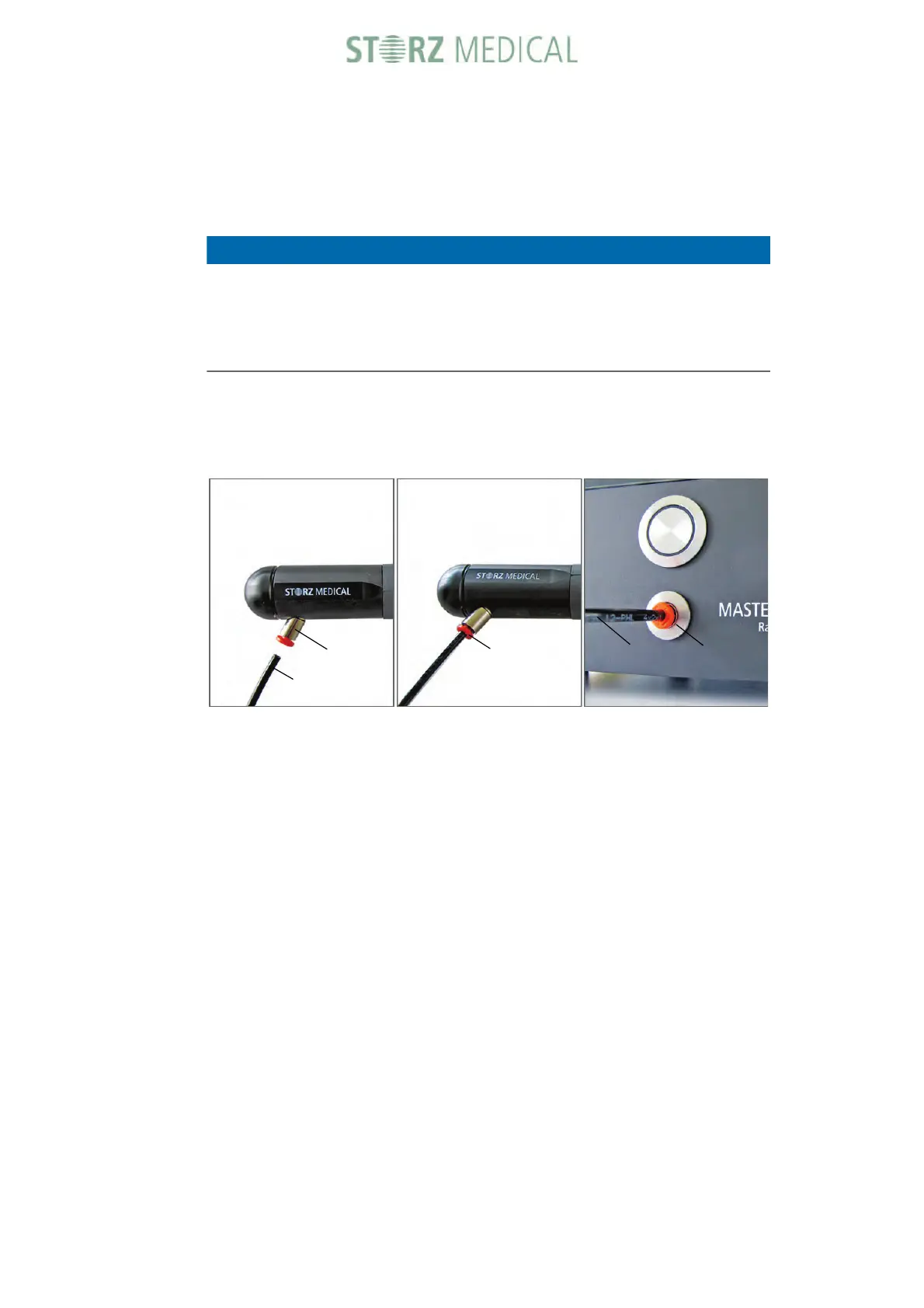

Fig. 3-4 Connections between handpiece, hose and control device
1Hose
2 Connector
3Orange ring
• To check that the components have been connected correctly, gently pull on the
hose.
You should not be able to pull the hose out.
• To disconnect the connections, slide the orange ring in the direction of the hand-
piece or device and pull the hose out of the connector at the same time.
3.5 Compatibility
The following handpieces may be operated with the MASTERPULS
®
ONE:
The handpiece is available in the colours grey, orange and green.
1
2
3
1
3
Handpiece Article number
Handpiece »SPARROW« 30064.xxxx
