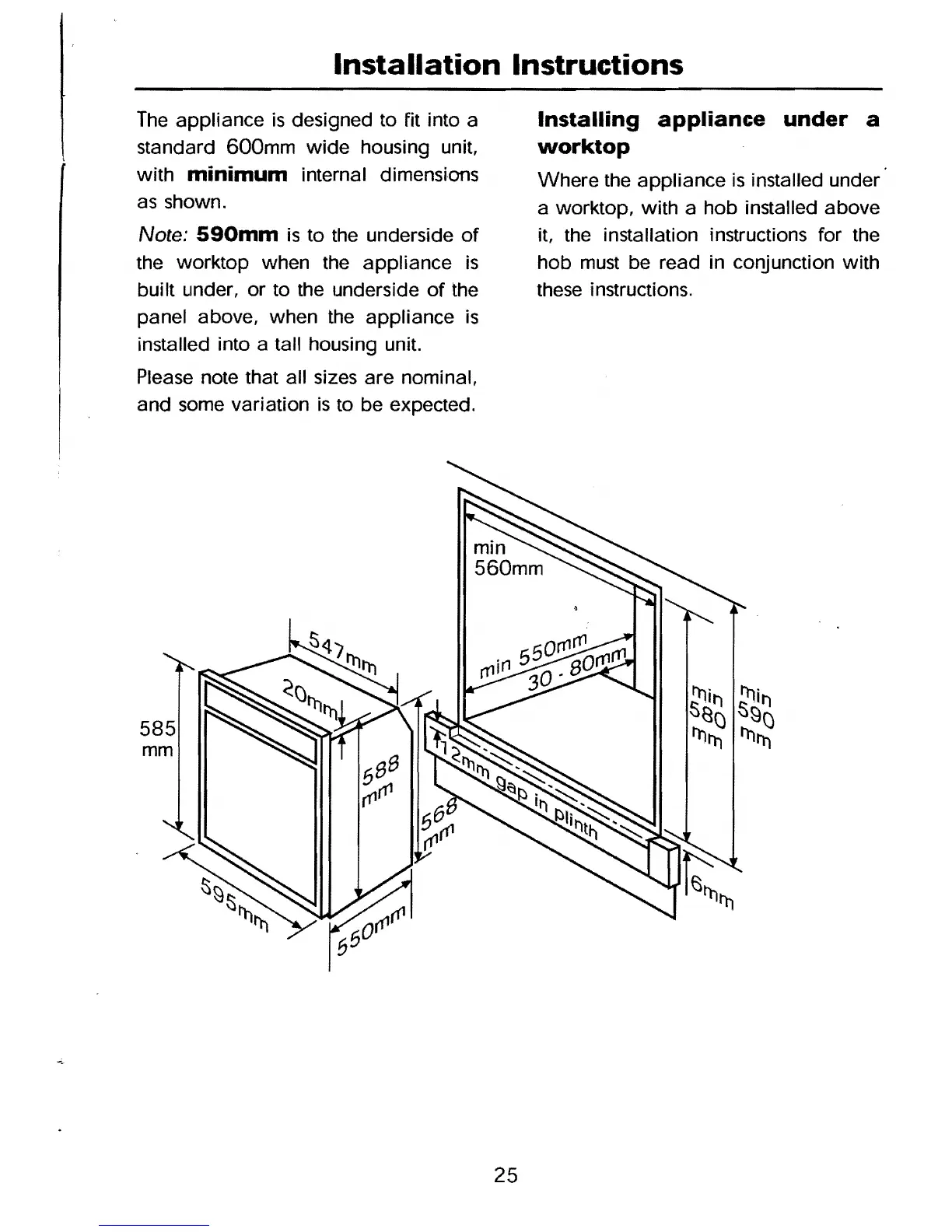

Installation Instructions
The
appliance
is
designed to fit into a
standard 600mm
wide
housing unit,
with
minimum
internal dimensions
as
shown.
Note:
590mm
is
to the underside
of
the worktop when the appliance
is
built under,
or
to the underside
of
the
panel above, when the appliance
is
installed into a tall housing unit.
Please note that all sizes are nominal,
and some variation
is
to be expected.
585
mm
Installing
appliance
under
a
worktop
Where
the appliance
is
installed under
a worktop, with a hob installed above
it, the installation instructions for the
hob
must
be read in conjunction with
these instructions.
25
