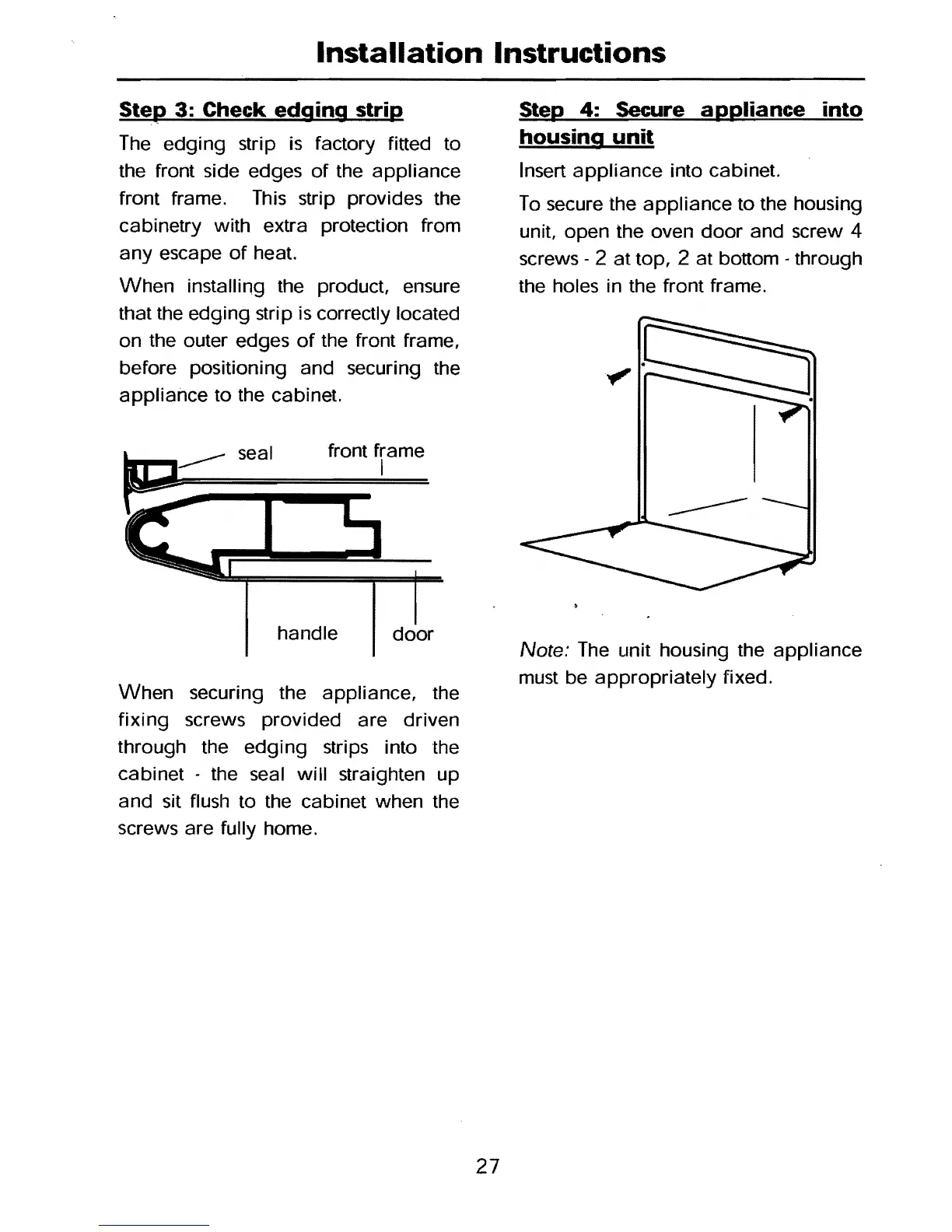

Installation Instructions
Step
3: Check
edging
strip
The
edging
strip is factory fitted to
the front side edges
of
the appliance
front frame. This strip provides the
cabinetry with extra protection from
any
escape
of
heat.
When
installing the product, ensure
that the edging strip is correctly located
on the outer edges
of
the front frame,
before positioning and securing the
appliance
to
the cabinet.
seal
handle
door
front frame
I
When
securing the appliance, the
fixing
screws provided
are
driven
through the
edg
i ng stri
ps
into the
cabinet - the seal will straighten up
and sit flush
to
the cabinet when the
screws are fully home.
Step 4: Secure
appliance
into
housing
unit
Insert
appliance
into cabinet.
To
secure the
appliance
to
the housing
unit, open the oven
door
and screw 4
screws - 2 at top, 2 at bottom - through
the holes in the front frame.
Note:
The
unit housing the appliance
must be
appropriately
fixed.
27
